  8. Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

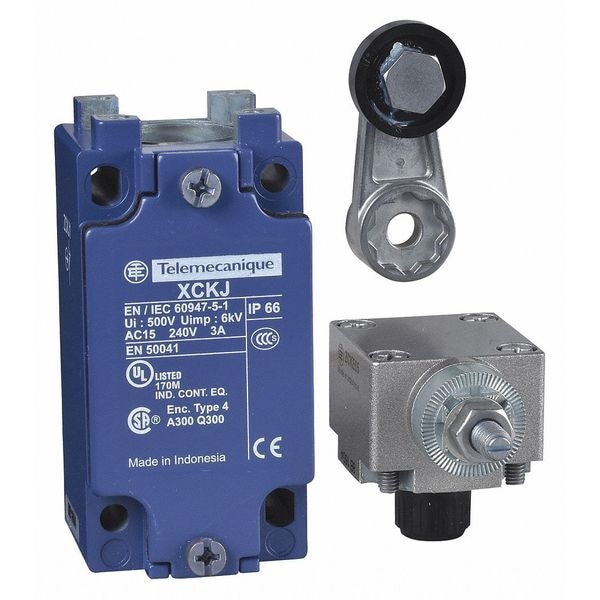

Telemecanique Sensors Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side XCKJ10511 - main

Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

  • Mfr # XCKJ10511

  • Zoro # G0835810

product price:  $130.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A @ 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKJ10511
Zoro #
G0835810
UPC #
785901320708
Country of Origin
Indonesia

Dimensions

Width
40 mm
Body Depth - Limit Switch
44 mm
Body Height - Limit Switch
77 mm

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A @ 240V
Amps
10
Special Features
lateral approach, 1 or 2 programmable direction
Head Material
zamak
Operating Temp. Range
-25-70 Degrees C
Series
XCKJ
Movement
rotary
Actuator Style
Roller Lever Plunger
Electrical Connection
screw-clamp terminals 1 x 0.34, 2 x 1.5 sq mm
Body Material
zamak
Body Style (Limit Switch)
fixed
IP Rating
IP66 conforming to IEC 60529
Certification
CCC, CSA, UL
Standards
CSA C22.2 No 14, IEC 60947-5-1, CENELEC EN 50041, IEC 60204-1, EN 60204-1, EN 60947-5-1, UL 508
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Head Type
rotary head
Weight
0.48 kg
Contact Action
snap action
Min. Actuation Velocity Horizontal
1.5 m/s
Actuation Type
by 30 Degree cam
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Short Circuit Protection
10 A cartridge fuse gG
Mechanical Durability
30000000 cycles
Operating Torque - Maximum
2.21 in-lb
Number Of Poles
2
Type Of Operator
spring return roller lever thermoplastic

Description

Limit Switch
