  8. Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

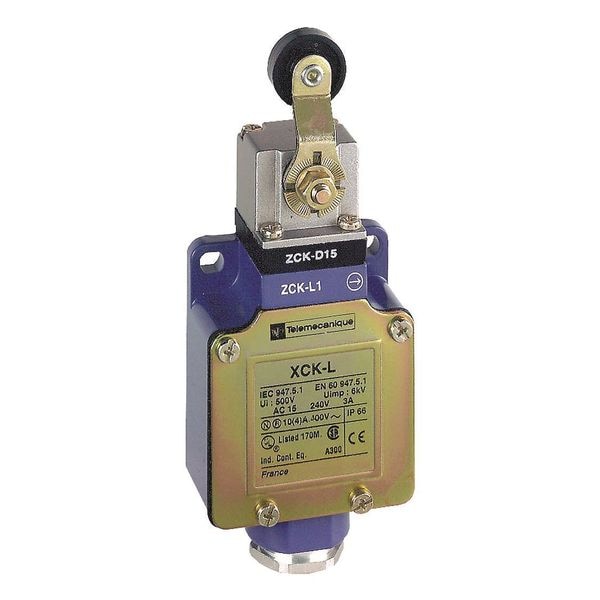

Telemecanique Sensors Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side XCKL115H7 - main

Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

  • Mfr # XCKL115H7

  • Zoro # G2830475

product price:  $187.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKL115H7
Zoro #
G2830475
UPC #
785901451648
Country of Origin
France

Dimensions

Roller Width
0.24 in
Depth
1.18"
Width
2.04"
Body Depth - Limit Switch
1.18 in
Body Height - Limit Switch
2.83 in
Height
2.83"
Body Width - Limit Switch
2.04 in
Actuator Length
1.36"
Actuator Length - Limit Switch
1.36 in
Roller Dia.
0.75 in
Overall Height
2.83 in
Overall Width
2.05 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.18 in
Body Depth
1.18 in
Body Width
2.05 in
Mounting Hole Diameter
0.2 in
Body Height
2.83 in
Roller Diameter
0.75 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Mounting Hole - Limit Switch
(2) 0.20 in dia
Arm Material
Zinc
Mounting Hole Spacing - Limit Switch
1.61 in
DC Contact Rating
0.27 A @ 250 V
Contact Form - Limit Switch
1NC/1NO
Operating Force
0.89 in-lb
Standards
CCC, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
Roller Material
Thermoplastic
Body Material
Zamak
Actuator Location
Side
Stem Thread - Limit Switch
No Stem
Contact Form
1NO/1NC
Actuator Location (Limit Switch)
Side
Amps
10
Movement
CCW, CW
NEMA Rating
1, 12, 2, 3, 4
Boot Sealed Actuator (Limit Switch)
No
Basic Actuator Style (Limit Switch)
Rotary
IP Rating
IP66
AC Contact Rating
3 A @ 240 V
Body Style (Limit Switch)
Miniature
Operating Temp. Range
-13 Degrees to 158 Degrees F
Voltage Rating
240VAC/DC
Series
XCKL
Electrical Connection
Screw Clamp Terminals
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Actuator Style (Limit Switch)
Rotary, Roller Lever
Actuator Style
Roller Lever Plunger
Limit Switch Style
General Purpose Limit Switch
Travel
Total Travel 70 Degrees
Boot Sealed Actuator - Limit Switch
No
Wiring Entry
1/2 in NPT
Certification
CSA || UL
Special Features
lateral approach, 2 directions
Short Circuit Protection
10 A cartridge fuse gG
Head Type
rotary head
Mechanical Durability
15000000 cycles
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Contact Action
snap action
Shock Resistance
50 gn 11 ms EN/IEC 60068-2-27
Actuation Type
by 30° cam
Vibration Resistance
25 gn 10-500 Hz)EN/IEC 60068-2-6
Min. Actuation Velocity Horizontal
1.5 m/s
Type Of Operator
spring return roller lever thermoplastic
Number Of Poles
2
Mounting Style
Surface
Operating Torque - Maximum
0.89 in-lb
Resistance Properties
Shock Resistant, Vibration Resistant
NEMA Enclosure Rating
1, 12, 2, 3, 4
Directional Movement
CCW/CW
Operating Temperature - Maximum
158 Degrees F
Mounting Hole Horizontal Center to Center Distance
41 mm
Operating Temperature - Minimum
-13 Degrees F
Total Travel
70 Degrees
Number of Mounting Holes
2
Boot Sealed Actuator
No Boot Included

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.36 in, Body Height - Limit Switch 2.83 in, Body Width - Limit Switch 2.04 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 2, 3, 4
