  8. Limit switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

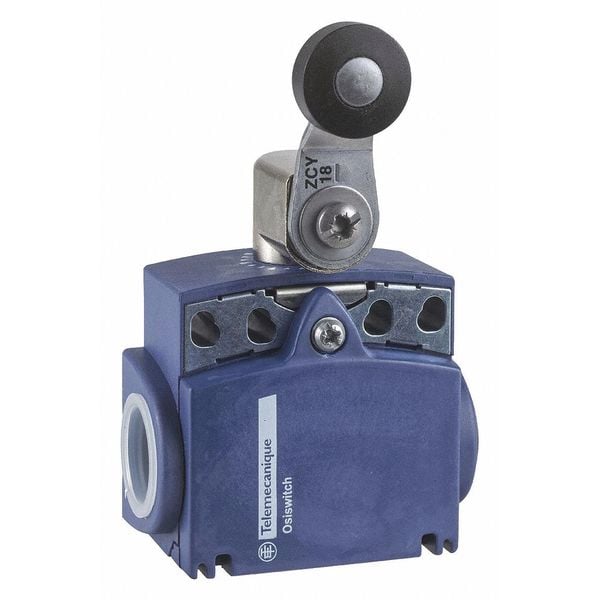

Telemecanique Sensors Limit switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side XCKT2118N12 - main

Limit switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

  • Mfr # XCKT2118N12

  • Zoro # G1964837

product price:  $84.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKT2118N12
Zoro #
G1964837
UPC #
785901269571
Country of Origin
France

Dimensions

Roller Dia.
0.75 in
Body Depth - Limit Switch
1.18 in
Actuator Length - Limit Switch
1.3 in
Height
2.00"
Width
2.28"
Body Width - Limit Switch
2.28 in
Depth
1.18"
Body Height - Limit Switch
2.0 in
Actuator Length
1.3 in
Roller Width
0.22 in
Body Height
2 in
Body Width
2.28 in
Roller Diameter
0.75 in
Mounting Hole Diameter
1.57 in
Body Depth
1.18 in
Overall Depth
1.58 in
Manufacturer Warranty Length
18 mo
Overall Width
3.12 in

Details

Item
Limit switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Roller Material
Thermoplastic
Body Style (Limit Switch)
Miniature
Operating Temp. Range
-13 Degrees to 158 Degrees F
Actuator Location (Limit Switch)
Side
Amps
10
Basic Actuator Style (Limit Switch)
Rotary
Travel
Total Travel 90 Degrees
Voltage Rating
240VAC/DC
Boot Sealed Actuator (Limit Switch)
No
Limit Switch Style
General Purpose Limit Switch
Boot Sealed Actuator - Limit Switch
No
NEMA Rating
1, 12, 13, 2, 4, 6
Contact Form - Limit Switch
1NC/1NO
Stem Thread - Limit Switch
No Stem
Standards
CCC, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
Arm Material
Metal
Mounting Hole - Limit Switch
(2) 0.17 in dia
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Actuator Style (Limit Switch)
Rotary, Roller Lever
Contact Form
1NO/1NC
Series
XCKT
Body Material
plastic
Electrical Connection
Screw Clamp Terminals
Operating Force
0.9 in-lb
Wiring Entry
1/2 in NPT
AC Contact Rating
10 A @ 240 V
Mounting Hole Spacing - Limit Switch
1.57 in
Actuator Style
Roller Lever Plunger
Movement
CCW, CW
IP Rating
IP66, IP67
Actuator Location
Side
DC Contact Rating
0.27 A @ 250 V
Head Material
zamak
Special Features
lateral approach, 2 directions
Certification
UL || CSA || CCC
Short Circuit Protection
10 A cartridge fuse gG
Head Type
rotary head
Min. Actuation Velocity Horizontal
1.5 m/s
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Contact Action
snap action
Mechanical Durability
10000000 cycles
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Actuation Type
by 30° cam
Directional Movement
CCW/CW
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Total Travel
90 Degrees
Number of Mounting Holes
2
Operating Torque - Maximum
0.9 in-lb
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Shock Resistant, Vibration Resistant
Mounting Style
Surface
Boot Sealed Actuator
No Boot Included
Operating Temperature - Maximum
158 Degrees F
Mounting Hole Horizontal Center to Center Distance
40 mm
Type Of Operator
spring return roller lever thermoplastic
Number Of Poles
2

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.3 in, Body Height - Limit Switch 2 in, Body Width - Limit Switch 2.28 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6
