  8. Limit switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

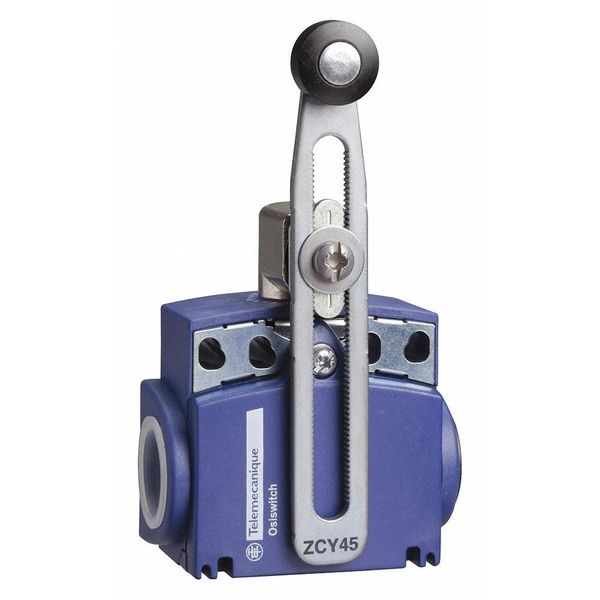

Telemecanique Sensors Limit switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side XCKT2145N12 - main

Limit switch, Roller Lever, Rotary, 1NC/1NO, 10A at 240V AC, Actuator Location: Side

  • Mfr # XCKT2145N12

  • Zoro # G3084164

product price:  $98.59
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKT2145N12
Zoro #
G3084164
UPC #
785901269434
Country of Origin
Indonesia

Dimensions

Roller Width
0.22 in
Actuator Length - Limit Switch
1.30 in to 3.29 in
Actuator Length
1.30" to 3.29"
Width
2.28"
Body Width - Limit Switch
2.28 in
Roller Dia.
0.63 in
Body Height - Limit Switch
2.0 in
Depth
1.18"
Body Depth - Limit Switch
1.18 in
Height
2.00"
Mounting Hole Diameter
0.17 in
Body Width
2.28 in
Overall Depth
1.48 in
Body Height
2 in
Body Depth
1.48 in
Overall Width
3.12 in
Manufacturer Warranty Length
18 mo
Roller Diameter
0.63 in

Details

Item
Limit switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Stem Thread - Limit Switch
No Stem
Body Style (Limit Switch)
Miniature
Actuator Style
Roller Lever Plunger
Limit Switch Style
General Purpose Limit Switch
AC Contact Rating
10 A @ 240 V
Electrical Connection
Screw Clamp Terminals
Actuator Location
Side
Actuator Style (Limit Switch)
Rotary, Roller Lever
NEMA Rating
1, 12, 13, 2, 4, 6
Basic Actuator Style (Limit Switch)
Rotary
Contact Form
1NO/1NC
Contact Form - Limit Switch
1NC/1NO
Operating Force
0.9 in-lb
Actuator Location (Limit Switch)
Side
Movement
CCW, CW
Mounting Hole Spacing - Limit Switch
1.57 in
Arm Material
Zinc
Amps
10
Voltage Rating
240VAC/DC
IP Rating
IP66, IP67
Wiring Entry
1/2 in NPT
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Boot Sealed Actuator (Limit Switch)
No
Operating Temp. Range
-13 Degrees to 158 Degrees F
DC Contact Rating
0.27 A @ 250 V
Mounting Hole - Limit Switch
(2) 0.17 in dia
Body Material
plastic
Series
XCKT
Travel
90 Degrees
Boot Sealed Actuator - Limit Switch
No
Roller Material
Thermoplastic
Standards
CCC, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
Head Material
zamak
Special Features
lateral approach, 2 directions
Certification
CSA || CCC || UL
Short Circuit Protection
10 A cartridge fuse gG
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Actuation Type
by 30° cam
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Contact Action
snap action
Min. Actuation Velocity Horizontal
1.5 m/s
Head Type
rotary head
Mechanical Durability
10000000 cycles
Type Of Operator
spring return roller lever thermoplastic variable length
Number Of Poles
2
Mounting Style
Surface
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Number of Mounting Holes
4
Directional Movement
CCW/CW
Boot Sealed Actuator
No Boot Included
Operating Torque - Maximum
0.9 in-lb
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Minimum
-13 Degrees F
Mounting Hole Horizontal Center to Center Distance
40 mm

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.30 in to 3.29 in, Body Height - Limit Switch 2 in, Body Width - Limit Switch 2.28 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6
