Shop TELEMECANIQUE SENSORS

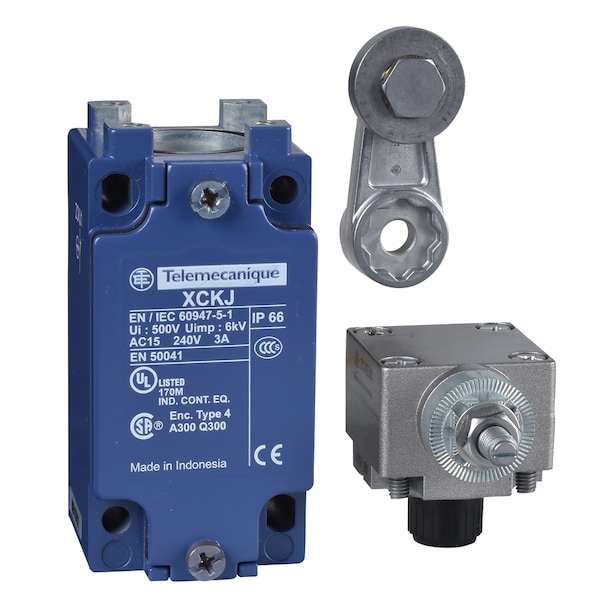

Limit Switch, Roller Lever, Rotary, 1NC/1NO, Actuator Location: Side

  • Mfr # XCKJ10513H29
  • Zoro # G3308064
product price:
$
144.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
Body Material
Zamak
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XCKJ10513H29
Zoro #
G3308064
UPC #
-
Country of Origin
Indonesia

Dimensions

Body Depth - Limit Switch
44 mm
Body Height - Limit Switch
77 mm
Width
40 mm
Arm Length - Maximum
1.61 in
Manufacturer Warranty Length
18 mo
Overall Height
3.03 in
Overall Depth
1.73 in
Body Depth
1.61 in
Roller Diameter
0.87 in
Overall Width
1.57 in
Body Width
1.57 in
Actuator Length
1.61 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
Body Material
Zamak
IP Rating
IP66
Standards
CCC, CENELEC EN 50041, CSA C22.2 No 14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60529, IEC 60947-5-1, RoHS, UL 508
Body Style (Limit Switch)
fixed
Head Material
zamak
Movement
rotary
Series
XC
Certification
UL || CCC || CSA
Special Features
lateral approach, 1 or 2 programmable direction
Operating Temp. Range
-25 Degrees to 70 Degrees C
Electrical Connection
Screw Terminal
Mechanical Durability
30000000 cycles
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Contact Action
Snap-Action
Min. Actuation Velocity Horizontal
1.5 m/s
Weight
0.49 kg
Head Type
rotary head
Short Circuit Protection
10 A cartridge fuse gG
Actuation Type
by 30° cam
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Number Of Poles
2
Type Of Operator
spring return roller lever metal
Arm Material
Metal
Roller Material
Steel
Mounting Style
Surface
Operating Temperature - Maximum
158 Degrees F
DC Contact Rating
0.27 A @ 250 V
Actuator Style
Roller-Lever Arm
Operating Torque - Minimum
0.25 N-m
Includes Actuator
Actuator Included
Number of Mounting Holes
2
Lamp Type
No Lamp Module Included
Directional Movement
CCW/CW
Body Configuration
Non Plug-In
AC Contact Rating
3 A @ 240 V
Arm Adjustability
Fixed
Roller Position
Front
Contact Form
1NO/1NC
Operating Temperature - Minimum
-13 Degrees F
Roller Adjustability
Fixed
Boot Sealed Actuator
No Boot Included
Action
Momentary

Description

Limit switch XCKJ - steel roller lever -
