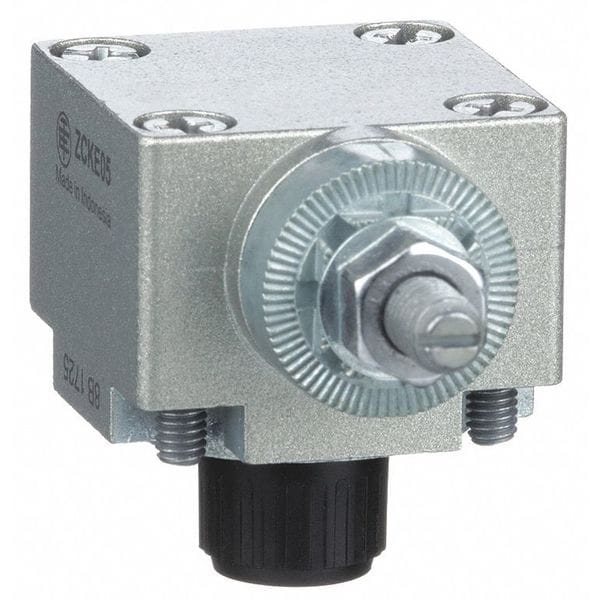

Telemecanique Sensors Limit Swtch Head, Rotary, Side, 2.21 in.-lb ZCKE05 - main

Limit Swtch Head, Rotary, Side, 2.21 in.-lb

  • Mfr # ZCKE05

  • Zoro # G1067893

product price: $54.99
/ea

Key Features

Actuator Style
Rotary Lever
Actuator Location
Side
For Use With
Mfr. No. XCKJ
NEMA Rating
1, 12, 2, 3, 4
Movement
Left and Right
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZCKE05
Zoro #
G1067893
UPC #
785901256373
Country of Origin
Multiple

Dimensions

Manufacturer Warranty Length
18 mo

Details

Item
Limit Switch Head
Actuator Style
Rotary Lever
Actuator Location
Side
For Use With
Mfr. No. XCKJ
NEMA Rating
1, 12, 2, 3, 4
Movement
Left and Right
Operating Force
2.21 in-lb
Operating Temp.
-25 Degrees to 70 Degrees F
Standards
CCC, CSA, IEC, UL Listed
IP Rating
Not Rated
Travel
90 Degrees
Description/Special Features
Momentary
Amps
3A/0.27A
Ambient Air Temperature For Operation
-25-70°C
Movement Of Operating Head
rotary
Product Or Component Type
limit switch head
Type Of Operator
without operating lever spring return
Head Type
rotary head
Switch Actuation
from left and/or right || CW and/or CCW
Ambient Air Temperature For Storage
-40-70°C
Associated Lever
ZCKY91 || ZCKY52 || ZCKY53 || ZCKY11 || ZCKY13 || ZCKY43 || ZCKY51 || ZCKY14 || ZCKY81 || ZCKY41 || ZCKY59
Associated Body
ZCKJD37H7 || ZCKJ5H29 || ZCKJ8H7 || ZCKJ1H29 || ZCKJ8 || ZCKJ7 || ZCKJ41 || ZCKJ6H29 || ZCKJ11H29 || ZCKJ41H29 || ZCKJ11H7 || ZCKJD35H7 || ZCKJD31H7 || ZCKJ9H29 || ZCKJD31H29 || ZCKJ21 || ZCKJD39H7 || ZCKJ9H7 || ZCKJ4H29 || ZCKJD35H29 || ZCKJ6 || ZCKJ11 || ZCKJ5 || ZCKJ7H29 || ZCKJ1H7 || ZCKJ7H7 || ZCKJ9 || ZCKJ8H29 || ZCKJ6H7 || ZCKJ4104H29 || ZCKJD31 || ZCKJ4104H7 || ZCKJ5H7 || ZCKJ2H7 || ZCKJ404H29 || ZCKJD37H29 || ZCKJ4 || ZCKJ21H7 || ZCKJ1 || ZCKJ2H29 || ZCKJD39H29 || ZCKJD37 || ZCKJ2 || ZCKJD35 || ZCKJ41H7 || ZCKJ404 || ZCKJD39 || ZCKJ4104 || ZCKJ21H29 || ZCKJ4H7 || ZCKJ404H7
Positive Opening
with
Series Name
standard format
Type Of Approach
lateral approach, 1 or 2 programmable direction
Product Compatibility
XCKJ
Environmental Characteristic
standard environment
Device Short Name
ZCKE
Head Material
metal
Action
Momentary
Includes Actuator
No Actuator Included
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
1, 12, 2, 3, 4
Operating Temperature - Maximum
158 Degrees F
Total Travel
90 Degrees
Compatible with Series
XCKJ
Directional Movement
CCW/CW
Operating Torque
2.21 in-lb

Description

Limit Switch Head, Actuator Style Rotary Lever, Actuator Location Side, Actuator Length Not Applicable, Contact Form Not Applicable, Amps 3A/0.27A, Voltage Rating Not Applicable, Travel 90 Degrees , Movement Left and Right, Operating Force 2.21 in-lb, Operating Temp. -25 Degrees to 70 Degrees F, NEMA Rating 1, 12, 2, 3, 4, IP Rating Not Rated, Standards CCC, CSA, IEC, UL Listed, For Use With Mfr. No. XCKJ
