DC Contact Rating
0.27 A @ 250 V
AC Contact Rating
3 A @ 240 V
Electrical Connection
Screw Clamp Terminals
Electrical Durability
5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Body Configuration
Non Plug-In
Compatible with Manufacturer Model Number
ZCKE05, ZCKE06, ZCKE08, ZCKE21, ZCKE23, ZCKE61, ZCKE619, ZCKE62, ZCKE629, ZCKE63, ZCKE64, ZCKE65, ZCKE66, ZCKE67
Mounting Hole Vertical Center to Center Distance
60 mm
Mounting Hole Horizontal Center to Center Distance
30 mm
Compatible with Series
XCKJ
Number of Mounting Holes
2
NEMA Enclosure Rating
1, 12, 2, 3, 4
Cable Entry
1 entry tapped for 1/2" NPT conduit
Short-Circuit Protection
10 A cartridge fuse gG
[Ie] Rated Operational Current
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Ip Degree Of Protection
IP66
Contacts Material
silver plated contacts
Ik Degree Of Protection
IK07
Environmental Characteristic
standard environment
[Ui] Rated Insulation Voltage
500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
Ambient Air Temperature For Operation
-25-70°C standard environment
Product Or Component Type

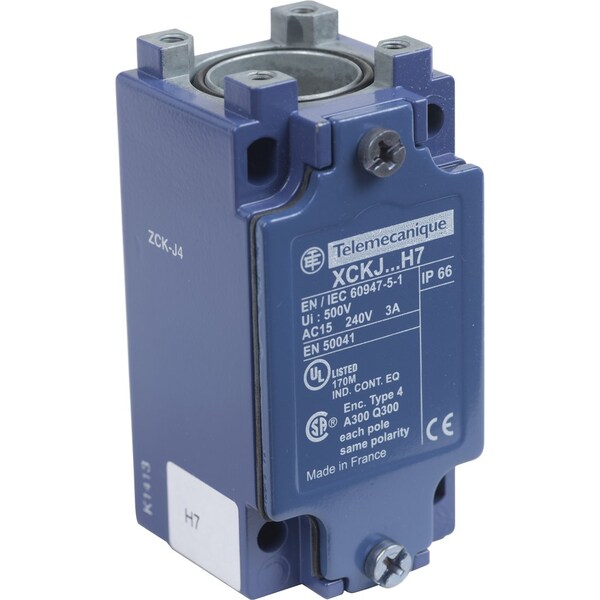

limit switch body
Contact Operation
snap action
Series Name
standard format
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60664 || 6 kV IEC 60947-1
Product Compatibility
XCKJ
Maximum Resistance Across Terminals
0.25 mOhm IEC 60255-7 category 3
Terminals Description Iso N°1
(21-22)NC || (13-14)NO
Electrical Circuit Type
indicator light module 2 LED AC, 110/240 V 95 to 264 V)100000 h
Associated Head
ZCKE629 || ZCKE23 || ZCKE61 || ZCKE67 || ZCKE05 || ZCKE619 || ZCKE62 || ZCKE66 || ZCKE21
[Ithe] Conventional Enclosed Thermal Current
10 A
Contacts Type And Composition
2 C/O
Minimum Actuation Speed
0.01 m/min
Number Of Steps
2 sequential
Ambient Air Temperature For Storage
-40-70°C
Compatible Manufacturer Part Number
ZCKE05, ZCKE06, ZCKE08, ZCKE21, ZCKE23, ZCKE61, ZCKE619, ZCKE62, ZCKE629, ZCKE63, ZCKE64, ZCKE65, ZCKE66, ZCKE67
