Communication interface - for smart rela
Standards
IEC 61000-4-11, IEC 61000-4-3, IEC 60068-2-27 Ea, IEC 61000-4-4 level 3, IEC 61000-4-12, IEC 61000-4-5, IEC 61000-4-2 level 3, IEC 61000-4-6 level 3, IEC 60068-2-6 Fc
[Us] Rated Supply Voltage
12...24 V DC
Disturbance Radiated/Conducted
class B IEC 55022-11 Group 1
Range of Product
Zelio Logic
Ip Degree of Protection
IP20 IEC 60529 terminal block), IP40 IEC 60529 front panel)
Pollution Degree
2 IEC 61131-2
Maximum Altitude Transport
3048 m
Power Dissipation In W
1.1 W
Operating Altitude
6561.68 ft (2000 m)
Electrical Data Recording
discrete and digital value, telephone/e-mail, date and time
Kit Composition

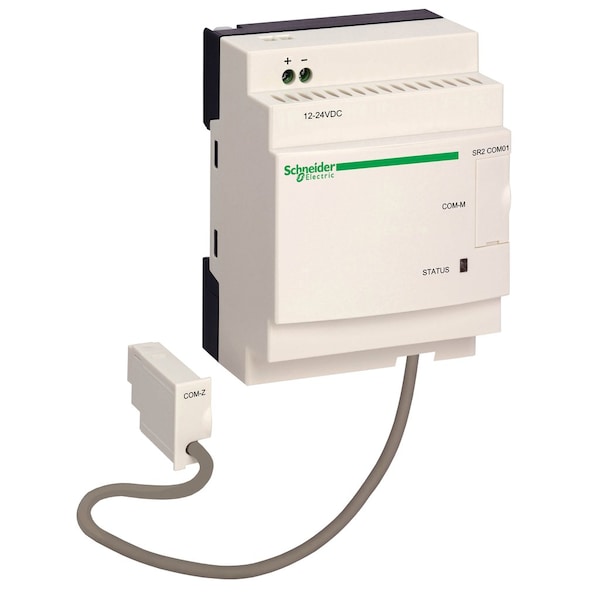

1 x SR2CBL07, modem communication interface
Product Compatibility
SR2E....., SR.B.....
Function Available
update firmware monitoring, send alarm to e-mail address, send alarm/receive instruction, transfer program
Reverse Polarity Protection
with
Ambient Air Temperature For Storage
-40-70°C
Insulation
1780 V optocoupler Com-Z specific to Zelio, by the cable SR2 CBL07 Com-M specific to Zelio
Tightening Torque
0.5 N.m
Maximum Supply Current
30 mA 12 V, 30 mA 24 V, 550 A
Relative Humidity
95-95 % without condensation or dripping water
Supply Voltage Limits
10-28.8 V
Associated Fuse Rating
1A
Connections - Terminals
screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Electrical Connection
1 cable Com-M specific to Zelio, RS232 serial, specific Zelio communication protocol link with the modem, AT commands, 1 cable Com-Z specific to Zelio, specific Zelio communication protocol Zelio Logic smart relays SR.B..... and SR2 E..... Version (>= V3.1)
Data Backed Up
flash memory
Ambient Air Temperature For Operation
-20-40°C IEC 60068-2-1 and IEC 60068-2-2, -20-55°C IEC 60068-2-1 and IEC 60068-2-2
Environmental Characteristic
EMC directive IEC 61000-6-2, EMC directive IEC 61000-6-3, EMC directive IEC 61000-6-4, EMC directive IEC 61131-2 zone B, low voltage directive IEC 61131-2
Product or Component Type
modem communication interface
Product Certifications
GOST || CSA || C-tick || UL
Product Or Component Type
modem communication interface
Ip Degree Of Protection
IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
