  7. Pressure Switch, Standard, DPST, 1 Ports, 1/4" FNPS, 60 to 200 psi Range, Polypropylene

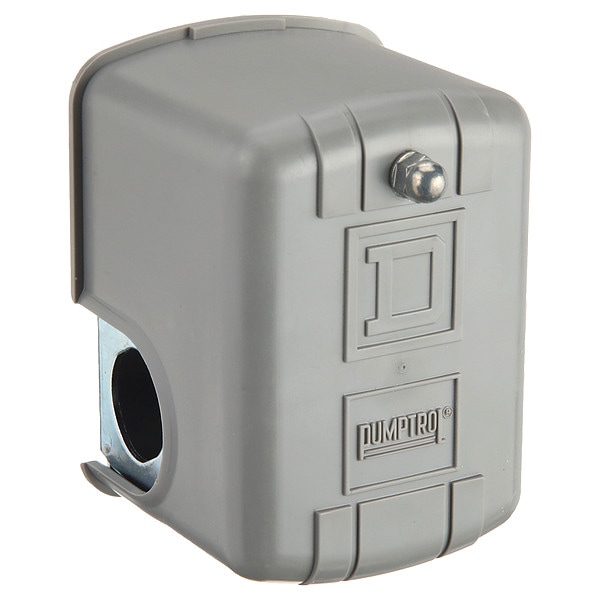

Telemecanique Sensors Pressure Switch, Standard, DPST, 1 Ports, 1/4" FNPS, 60 to 200 psi Range, Polypropylene 9013FHG52J59 - main

CAD Drawings

Download CAD Files

Pressure Switch, Standard, DPST, 1 Ports, 1/4" FNPS, 60 to 200 psi Range, Polypropylene

  • Mfr # 9013FHG52J59

  • Zoro # G0486403

CAD Available
product price:  $44.19
/ea

Key Features

CAD Drawing
Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4" FNPS
Range
60 to 200 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9013FHG52J59
Zoro #
G0486403
UPC #
785901051497
Country of Origin
Mexico

Dimensions

Manufacturer Warranty Length
18 mo

Details

Item
Pressure Switch
Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4" FNPS
Range
60 to 200 psi
Housing Material
Polypropylene
Factory On Setting
135 psi
Factory Off Setting
175 psi
Standards
ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
Pressure Switch Application
Air Compressor
AC Contact Rating
10A @ 575V
Manual Switch Action
None
Pressure Switch Port Type
(1) Port, 1/4 in FNPS
Pressure Switch Factory On/Off Setting
135/175 psi
Series
9013FH
Pressure Switch Unloader
No
Temp. Range
-22 Degrees to 257 Degrees F
Pressure Switch Electrical Contact Form
DPST
Pressure Switch Differential
40 psi
Special Features
Nitrile (Buna-N) Diaphragm
Pressure Switch Range
60 to 200 psi
Electrical Connection
Screw-Clamp Terminals
Phase
Single/Three
Burst Pressure
220 psi
IP Rating
IP20 (IEC 60529)
Material
Polypropylene Cover; Noryl Thermoplastic Resin Cover
HP
3 HP @ 230V
Product Type
Air Compressor Switch
Horsepower @ Three Phase - 240V AC
5 hp
Horsepower @ Single Phase - 240V AC
3 hp
Switch Function Configuration
None
Actuator Style
Diaphragm
Media Temperature - Maximum
257 Degrees F
Pressure - Maximum
200 psi
Horsepower @ Three Phase - 480V AC
1 hp
Differential Pressure - Maximum
40 psi
Pressure - Minimum
100 psi
Horsepower @ Single Phase - 120V AC
2 hp
Media Temperature - Minimum
-33 Degrees F
CAD Available
Yes

Description

Air Compressor Switch, Air Compressor, Manual Switch Action None, (1) Port, 1/4 in FNPS, Pressure Switch Factory On/Off Setting 135/175 psi, No Pressure Switch Unloader, Pressure Switch Differential 40 psi, Pressure Switch Range 60 to 200 psi, Pressure Switch Electrical Contact Form DPST, Pressure Switch Action Standard, NEMA Rating 1, Series 9013FH, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, HP @ 3 Phase - 480V 1 hp, Temp. Range -22 Degrees to 257 Degrees F
