Shop TELEMECANIQUE SENSORS

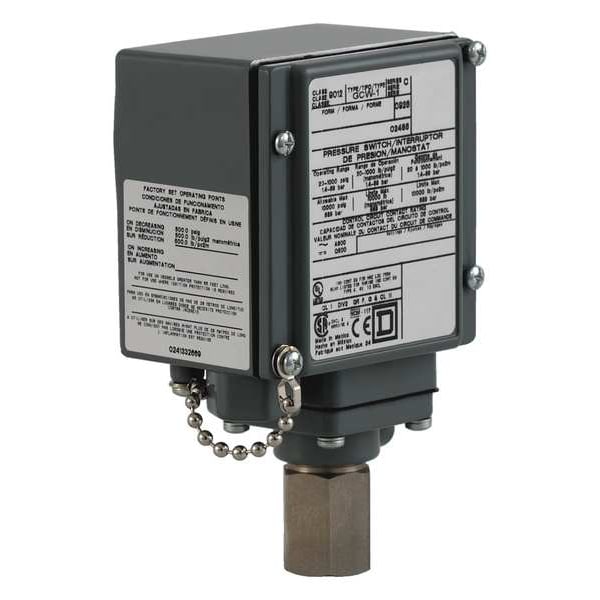

Pressure Switch, Standard, SPDT, 1 Ports, 1/4-18" FNPT, 20 to 1000 psi Range, Aluminum

  • Mfr # 9012GCW1

  • Zoro # G2905743

product price:  $937.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
SPDT
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4-18" FNPT
Range
20 to 1000 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9012GCW1
Zoro #
G2905743
UPC #
785901024859
Country of Origin
Mexico

Dimensions

Manufacturer Warranty Length
18 mo
Overall Depth
2.63 in
Overall Height
6.37 in
Overall Width
3.5 in

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4-18" FNPT
Range
20 to 1000 psi
Housing Material
Aluminum
Factory On Setting
1000 psi
Factory Off Setting
20 psi
Standards
CE, RoHS, UL 508
Actuation Type
Piston
DC Contact Rating
0.11A @ 250V, 0.22A @ 125V
AC Contact Rating
10A @ 480V
Series
9012G
Temp. Range
-10 to 185 °F
IP Rating
54
Max. Pressure
10000 psi
Special Features
Mercury Free; Green Premium product
Pressure Switch Differential
59 to 200 psi
Pressure Switch Port Type
1-Port 1/4-18 in FNPT
Pressure Switch Range
20 to 1000 psi
Pressure Switch Electrical Contact Form
SPDT
Electrical Connection
Screw-Clamp Terminals
Material
Die cast aluminium alloy
Differential Pressure - Maximum
200 psi
Media Temperature - Minimum
-15 Degrees F
Pressure - Minimum
20 psi
Differential Pressure - Minimum
59 psi
Deadband Adjustability
Adjustable
Proof Pressure
10,000 psi
Pressure - Maximum
1,000 psi
Media Temperature - Maximum
250 Degrees F
NEMA Enclosure Rating
13, 4, 4X
Operating Temperature - Minimum
-10 Degrees F
Operating Temperature - Maximum
185 Degrees F

Description

Pressure Switch, NEMA Rating 13, 4, 4X, Series 9012G, Temp. Range -10 Degrees to 185 Degrees F, Standards CE, RoHS, UL 508, Special Features Viton(R) Fluorocarbon Piston, Control Circuit Rated, Single Stage Switch, Water Tight, Dust Tight, Oil Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, AC Contact Rating 3 A @ 240 V, 6 A @ 120 V
