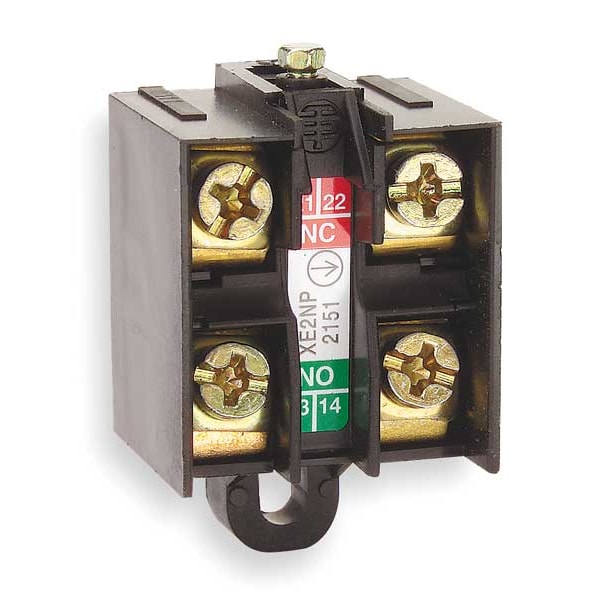

Telemecanique Sensors Replacement Contact Block, 1NO/1NC XE2NP2151 - main

Replacement Contact Block, 1NO/1NC

  • Mfr # XE2NP2151

  • Zoro # G1157554

product price: $44.59
/ea

Key Features

For Use With
XCKD, XCKJ, XCKL , XCKM, XCKP, XCKS, XCR Limit Switches
Operating Temp.
-77 Degrees to 158 Degrees F
Contact Form
1NO/1NC
Standards
CSA, EN/IEC, UL Listed
AC Contact Rating
10 A @ 600 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XE2NP2151
Zoro #
G1157554
UPC #
785901306269
Country of Origin
Multiple

Details

Item
Contact Block
For Use With
XCKD, XCKJ, XCKL , XCKM, XCKP, XCKS, XCR Limit Switches
Operating Temp.
-77 Degrees to 158 Degrees F
Contact Form
1NO/1NC
Standards
CSA, EN/IEC, UL Listed
AC Contact Rating
10 A @ 600 V
IP Rating
Not Rated
NEMA Rating
1, 12, 2, 3, 4
Electrical Connection
Screw Terminal
Product Or Component Type
limit switch contact block
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60664 || 6 kV IEC 60947-1
Associated Body
ZCKM5 || ZCKL5 || ZCP25 || ZCKJ5 || ZCD25 || ZCKS5 || ZCKJ5D
Contacts Material
silver plated contacts
Contact Code Designation
A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
Contact Operation
slow-break, break before make
Short-Circuit Protection
10 A cartridge fuse gG
Maximum Resistance Across Terminals
25 mOhm IEC 60255-7 category 3
Positive Opening
with
Electrical Durability
5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Contacts Insulation Form
Zb
Contacts Type And Composition
1 NO + 1 NC
Series Name
standard format
Product Compatibility
XCKD || XCKS || XCR || XCKJ || XCKL || XCKM || XCKP
[Ui] Rated Insulation Voltage
300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Minimum Actuation Speed
6 m/min
Device Short Name
XE2N
Number Of Poles
2
Compatible with Series
XCKD, XCKJ, XCKL, XCKM, XCKP, XCKS, XCR
Compatible Operator
Limit Switch
Terminal Connection Type
Screw Terminals

Description

Contact Block, Contact Form 1NO/1NC, For Use With XCKD, XCKJ, XCKL , XCKM, XCKP, XCKS, XCR Limit Switches, Standards CSA, EN/IEC, UL Listed
