  11. Through-Beam Photoelectric Sensor, Bare Wire, Right Angle, Cylindrical, PNP

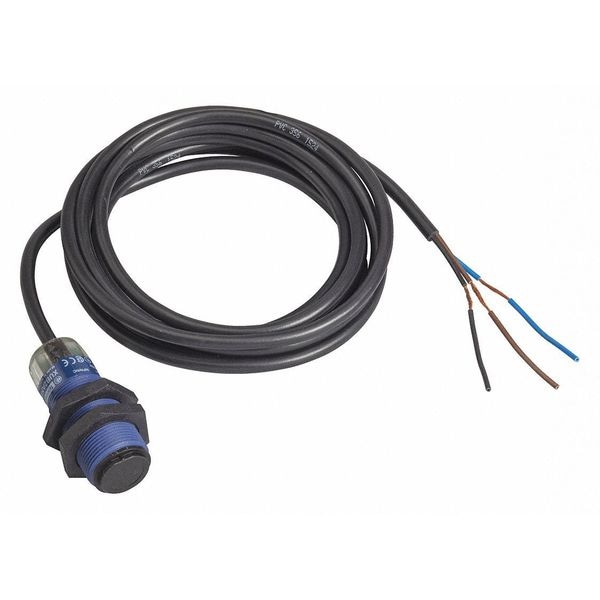

Telemecanique Sensors Through-Beam Photoelectric Sensor, Bare Wire, Right Angle, Cylindrical, PNP XUB2APBNL2R - main

Through-Beam Photoelectric Sensor, Bare Wire, Right Angle, Cylindrical, PNP

  • Mfr # XUB2APBNL2R

  • Zoro # G0839137

product price: $58.54
/ea

Key Features

Material
plastic
Diameter
18 mm
IP Rating
IP65, IP67
Body Material
Plastic
Standards
CE, CSA Certified, UL Listed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XUB2APBNL2R
Zoro #
G0839137
UPC #
785901938828
Country of Origin
Indonesia

Dimensions

Diameter
18 mm
Length
46 mm
Cable Length
2 m
Overall Height
46 mm
Overall Diameter
18 mm
Sensor Diameter
18 mm

Details

Item
Photoelectric Sensor
Material
plastic
IP Rating
IP65, IP67
Body Material
Plastic
Standards
CE, CSA Certified, UL Listed
Features
Scratch-Resistant Lens, Double Insulation, PBT Case
Sensing Method
Through-Beam
Current Consumption
35 mA no-load
Response Time
1 msec
Electrical Connection
Bare Wire
Switching Frequency
500 Hz
Lens Material
PMMA
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Electronic Sensor Type
photo-electric sensor receiver
Series Name
general purpose single mode
Detection System
thru beam
Status Led
1 LED yellow)output state
Wire Insulation Material
PvR
Maximum Delay Recovery
1 ms
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Setting-Up
without sensitivity adjustment
[Sn] Nominal Sensing Distance
15-15 m thru beam need a transmitter XUB2AKSNL2T
Output Type
solid state
Ambient Air Temperature For Operation
-25-55°C
Sensor Design
cylindrical M18
Sensor Name
XUB
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Maximum Delay Response
1 ms
Supply Circuit Type
DC
Switching Capacity In Ma
<= 100 mA overload and short-circuit protection)
Enclosure Material
PBT
Maximum Voltage Drop
<1.5 V closed state)
Add On Output
without
Ambient Air Temperature For Storage
-40-70°C
Maximum Sensing Distance
20 m thru beam
Type Of Output Signal
discrete
Emission
infrared thru beam
Line Of Sight Type
axial
Maximum Delay First Up
15 ms
Output Circuit Type
PNP
Orientation
Right Angle
Style
Cylindrical
Operating Temperature - Maximum
131 Degrees F
DC Voltage Rating
12-24V DC
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Minimum
-13 Degrees F
Electrical Installation Type
Prewired Cable
Load Current - Maximum
100 mA
Sensing Distance - Maximum
20 m
Series
XUB
Output Circuit Number of Wires
3

Description

Photoelectric Sensor
