  6. Xxv18 Ultrasonic Proximity Pnp No M12

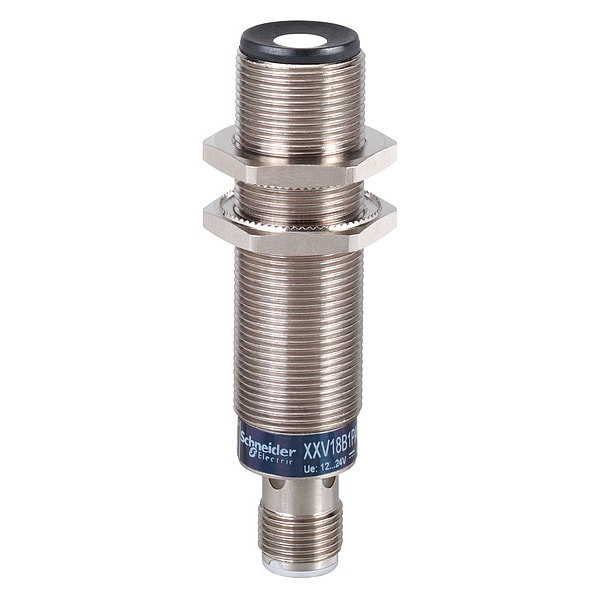

Telemecanique Sensors Xxv18 Ultrasonic Proximity Pnp No M12 XXV18B1PAM12 - main

Xxv18 Ultrasonic Proximity Pnp No M12

  • Mfr # XXV18B1PAM12

  • Zoro # G0671749

product price:  $130.99
/ea
Free Shipping & Returns

Key Features

Width
18 mm
Height
18 mm
Material
metal
Enclosure Material
Brass
Standards
IEC 60947-5-2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XXV18B1PAM12
Zoro #
G0671749
UPC #
785901774389
Country of Origin
United States

Dimensions

Width
18 mm
Height
18 mm
Minimum Size Of Detected Object
cylinder diameter 2 mm 0.02 m
Threaded Length
51 mm
Depth
75 mm

Details

Item
Xxv18 Ultrasonic Proximity Pnp No M12
Material
metal
Enclosure Material
Brass
Standards
IEC 60947-5-2
Beam Angle
10°
Wiring Technique
3-wire
Product Certifications
cULus
Discrete Output Type
PNP
Front Material
epoxy
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Marking
CE
Type Of Output Signal
discrete
Status Led
output state 1 LED yellow)
Repeat Accuracy
0.015
Maximum Delay Recovery
4 ms
Transmission Frequency
360 kHz
Vibration Resistance
+/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Differential Travel
3 mm
Ambient Air Temperature For Operation
0-60°C
Thread Type
M18 x 1
[Sn] Nominal Sensing Distance
0.05-0.05 m fixed
Ambient Air Temperature For Storage
-40-80°C
Maximum Voltage Drop
2 V
[Sd] Sensing Range
0.003-0.05 m
Detection System
diffuse
Series Name
general purpose
Electrical Connection
male connector M12 4 pins
[Sa] Assured Operating Distance
0.003-0.05 m
Deviation Angle From 90° Of Object To Be Detected
-8-8°
Sensor Type
ultrasonic sensor
Maximum Switching Current
200 mA overload and short-circuit protection
Discrete Output Function
1 NO
Sensor Name
XXV
Supply Voltage Limits
10-36 V DC
Maximum Delay First Up
5 ms
Shock Resistance
50 gn in all 3 axes 11 ms IEC 60068-2-27
Sensor Design
cylindrical M18
Resistance To Electromagnetic Fields
10 V/m level 3 IEC 61000-4-3
Current Consumption
15 mA
Maximum Delay Response
4 ms
Resistance To Fast Transients
1 kV level 3 IEC 61000-4-4
Blind Zone
0-3 mm
Ip Degree Of Protection
IP67 conforming to IEC 60529
Switching Frequency
<= 80 Hz
Resistance To Electrostatic Discharge
8 kV level 4 IEC 61000-4-2

Description

Xxv18 Ultrasonic Proximity Pnp No M12
