  6. Telescoping Takeup, 1-3/4in, 9in, CS

This item is Discontinued.

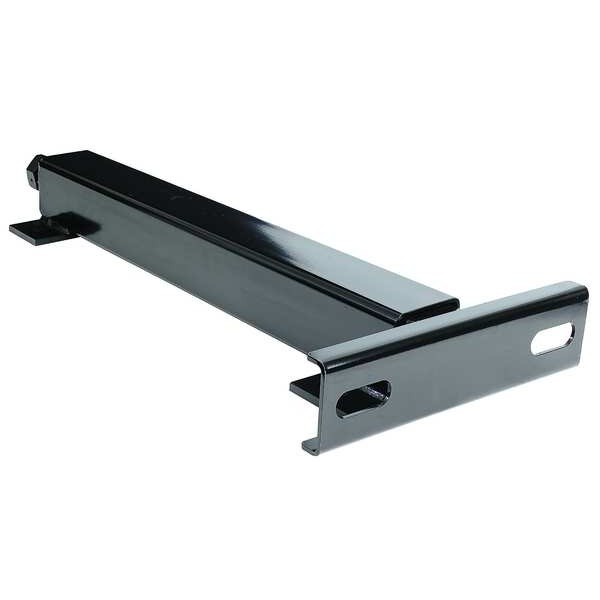

Telescoper Telescoping Takeup, 1-3/4in, 9in, CS 250-9-MS-SF-BP

Telescoping Takeup, 1-3/4in, 9in, CS (Discontinued)

  • Mfr # 250-9-MS-SF-BP
  • Zoro # G8922514
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
250-9-MS-SF-BP
Zoro #
G8922514
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
14 1/2 in
Tensioner Retracted Length
14 1/2 in
Max. Bolt Dimension/Length
5 11/16 in
Travel Length
9"
Bearing Plate Length
7 in
Min. Bolt Dimension/Length
3 13/16 in
Adjusting Rod Size
0.750-10 UNC-2A
Bearing Plate Width
2 3/64 in
Bearing Mount Slot Height
15/16 in
Bore Size
1 3/4 in
Bearing Mount Slot Width
9/16 in
Slot Width
9/16"
Tube Size
1-3/4 sq

Details

Item
Conveyor Belt Tensioner
Operation Type
Manual Screw Adjustment
Belt Tensioner Material
Carbon Steel
Bearing Bore Range
1-1/16 in to 1-3/4 in
Maximum Adjustment Stroke
9 in
Series
250
Max. Holding Force
1500 lb.
Stroke
9"
Maximum Tension Force
1,500 lb
Tensioner Operation Type
Manual Screw Adjustment
Mounting Plate
Slotted to Fit Pillow Block
Material
Carbon Steel

Description

Conveyor Belt Tensioner, Manual Screw Adjustment, Carbon Steel, 14 1/2 in Tensioner Retracted Length, 9 in Maximum Adjustment Stroke, 15/16 in Bearing Mount Slot Height, 9/16 in Bearing Mount Slot Width, 1,500 lb Maximum Tension Force
