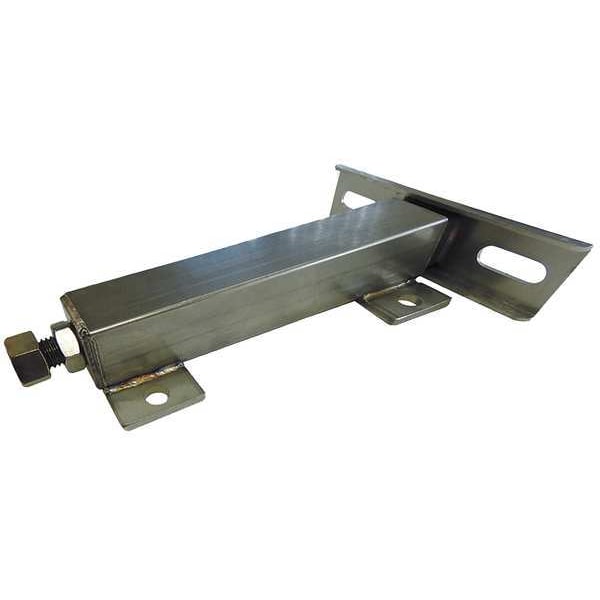

Telescoper Telescoping Takeup, 6 in., 1500lb., Manual 250-6-SS-SF-BP

Telescoping Takeup, 6 in., 1500lb., Manual (Discontinued)

  • Mfr # 250-6-SS-SF-BP
  • Zoro # G8922706
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
250-6-SS-SF-BP
Zoro #
G8922706
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
11 1/2 in
Bearing Mount Slot Height
15/16 in
Bearing Plate Width
2 3/64 in
Min. Bolt Dimension/Length
3 13/16 in
Max. Bolt Dimension/Length
5 11/16 in
Bearing Plate Length
7 in
Adjusting Rod Size
0.750-10 UNC-2A
Tube Size
1-3/4 sq
Tensioner Retracted Length
11 1/2 in
Slot Width
9/16"
Bore Size
1 3/4 in
Travel Length
6"
Bearing Mount Slot Width
9/16 in

Details

Item
Conveyor Belt Tensioner
Operation Type
Manual Screw Adjustment
Tensioner Operation Type
Manual Screw Adjustment
Material
Stainless Steel
Belt Tensioner Material
Stainless Steel
Mounting Plate
Slotted to Fit Pillow Block
Series
250
Bearing Bore Range
1-1/16 in to 1-3/4 in
Max. Holding Force
1500 lb.
Maximum Adjustment Stroke
6 in
Maximum Tension Force
1,500 lb
Stroke
6"

Description

Conveyor Belt Tensioner, Manual Screw Adjustment, Stainless Steel, 11 1/2 in Tensioner Retracted Length, 6 in Maximum Adjustment Stroke, 15/16 in Bearing Mount Slot Height, 9/16 in Bearing Mount Slot Width, 1,500 lb Maximum Tension Force
