  9. Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115/208-230V, 12,867 cfm

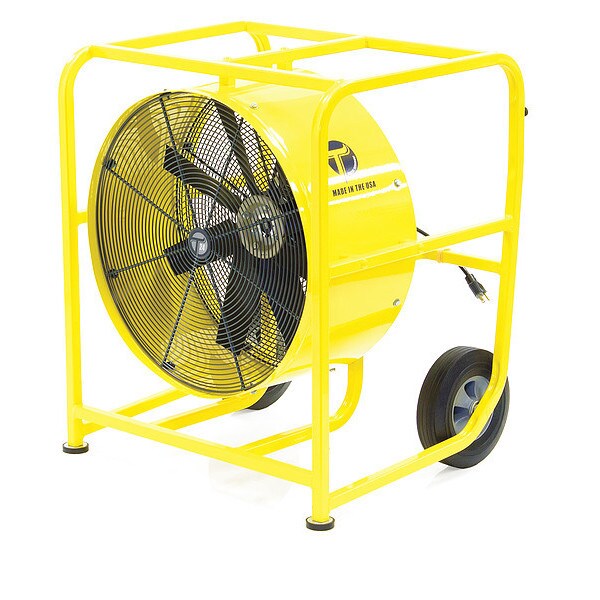

Tempest Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115/208-230V, 12,867 cfm 913-1161 - main

Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115/208-230V, 12,867 cfm

  • Mfr # 913-1161

  • Zoro # G8161124

product price: $3,426.99
/ea
Item requires special delivery charges. A $85.00 per item surcharge will be applied.

Key Features

Blade Diameter
24 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/208-230V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
913-1161
Zoro #
G8161124
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
24 in
Shaft Dia.
5/8 in
Height
34-1/4 in
Width
30 in
Max. Depth
26 in
Fan Cord Length
2 ft
Depth
26 in

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/208-230V
Phase
1
Motor HP
1
Air Flow
12,867 cfm
Drive Type
Direct Drive
Blade Material
Air Flex Fiberglass Reinforced Polymide
Sound Level
100 dBA
Item
Air Circulator
Housing Material
Welded Steel
Number of Blades
8
Thermal Protection
Automatic
Wire Guard Finish
Nickel Chrome
Motor Type
Dual Voltage Capacitor Start
Max. Ambient Temp.
120 Degrees F
Mobile/Stationary
Mobile
Watts
1610 W
Fan Mounting Location
Floor
Motor Enclosure
Totally Enlcosed Fan Cooled Hazardous Environment
Assembled
Yes
Fan Style
Standard Duty
Hz
60
Application
Spot Cooling and Particulate/Fume Ventilation; Air Circulation
Bearing Type
Ball
Environmental Applications
Industrial
Guard Material
Rolled Steel
CFM High
12867
Fan Accessory Style
Standard
Motor RPM
1,725 RPM
Wheeled Base
Mobile
Amps
13.4/6.8-6.7
Fan Housing Material
Steel
RPM
1725
Assembly Required
No
Material
Welded Steel
Motor hp
1 hp

Description

Hazardous-Location Industrial Fan, Blade Dia. 24 in, Mobile, Non-Oscillating, 1 Speeds, Voltage 115/208 to 230V AC, 1 Phase, CFM High 12,867, Motor HP 1 hp, Motor RPM 1725, Operating Amps 13.4 / 6.8-6.7, Fan Mounting Location Floor, Fan Accessory Style Standard, Fan RPM 1725, Sound Level 100 dBA, Max. Ambient Temp. 120 Degrees F, Hz 60 Hz, Watts 1610, Motor Type Dual Voltage Capacitor Start, Drive Type Direct Drive, Height 34 1/2 in, Width 28 3/4 in, Max. Depth 26 In., Cord Length 2 ft.
