Shop TEMPEST

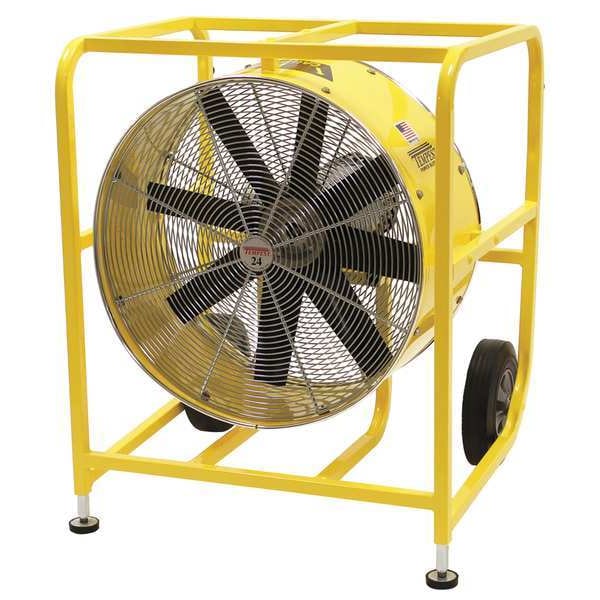

Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115/208-230V, 12,867 cfm

  • Mfr # 913-1160

  • Zoro # G8116823

product price:
$
2,551.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

Blade Diameter
24 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/208 to 230V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
913-1160
Zoro #
G8116823
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
24 in
Width
28 3/4 in
Height
34 1/2 in
Shaft Dia.
5/8 in
Max. Depth
26"
Depth
26 in
Fan Cord Length
2 ft

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/208 to 230V AC
Phase
Single
Motor HP
1 hp
Air Flow
12,867 cfm
Drive Type
Direct Drive
Blade Material
Polyamide
Sound Level
100 dBA
Item
Circulating Fan
Wire Guard Finish
Zinc-Plated
Assembled
Yes
Watts
1610 W
Environmental Applications
Industrial
Motor Type
Capacitor-Start
Fan Style
Standard
Motor RPM
1725
Mobile/Stationary
Mobile
Motor Enclosure
Totally Enclosed Air-Over
Hz
60 Hz
Guard Material
Steel
Number of Blades
8
Application
Spot Cooling and Particulate/Fume Ventilation
Housing Material
Welded Steel
Max. Ambient Temp.
120 Degrees F
Fan Accessory Style
Standard
CFM High
12,867
Fan Mounting Location
Floor
Bearing Type
Ball
Thermal Protection
Auto
Wheeled Base
Mobile
RPM
1,725 RPM
Fan Housing Material
Steel
Amps
13.4/6.8/6.7 A
Assembly Required
No
Material
Welded Steel
Motor hp
1 hp
Color
Yellow
Fan Shape
Drum
Fan Power Source
Plug-In
Guard Color
Silver
For Location
Garage, Warehouse
Airflow
12,867 cfm
Housing Finish
Powder Coated
Base Type
Trolley

Description

Standard-Duty Industrial Fan, Blade Dia. 24 in, Mobile, Non-Oscillating, 1 Speeds, Voltage 115/208 to 230V AC, 1 Phase, CFM High 12,867, Motor HP 1 hp, Motor RPM 1725, Operating Amps 13.4 / 6.8-6.7, Fan Mounting Location Floor, Fan Accessory Style Standard, Fan RPM 1725, Sound Level 100 dBA, Max. Ambient Temp. 120 Degrees F, Hz 60 Hz, Watts 1610, Motor Type Dual Voltage Capacitor Start, Drive Type Direct Drive, Height 34 1/2 in, Width 28 3/4 in, Max. Depth 26 In., Cord Length 2 ft.
