  5. Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115/208-230V, 12,867 cfm
Tempest Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115/208-230V, 12,867 cfm 913-1180 - main

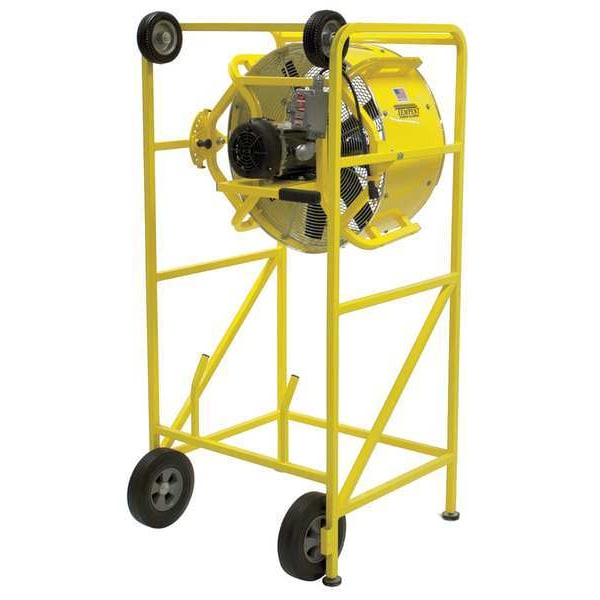

Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115/208-230V, 12,867 cfm

  • Mfr # 913-1180

  • Zoro # G9932711

product price:  $3,707.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Blade Diameter
24 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/208-230V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
913-1180
Zoro #
G9932711
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
24 in
Width
31 in
Shaft Dia.
5/8 in
Max. Depth
32 in
Height
64-1/4 in
Fan Cord Length
2 ft
Depth
32 in

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/208-230V
Phase
1
Motor HP
1
Air Flow
12,867 cfm
Drive Type
Direct Drive
Blade Material
Air Flex Fiberglass Reinforced Polymide
Sound Level
100 dBA
Item
Air Circulator
Guard Material
Rolled Steel
Fan Style
Standard Duty
Bearing Type
Ball
Assembled
Yes
Number of Blades
8
Mobile/Stationary
Mobile
Housing Material
Welded Steel
Motor RPM
1,725 RPM
Watts
1610 W
Motor Type
Dual Voltage Capacitor Start
Fan Accessory Style
Standard
Max. Ambient Temp.
120 Degrees F
Environmental Applications
Industrial
Motor Enclosure
Totally Enlcosed Fan Cooled Hazardous Environment
CFM High
12867
Hz
60
Thermal Protection
Automatic
Application
Spot Cooling and Particulate/Fume Ventilation; Air Circulation
Wire Guard Finish
Nickel Chrome
Fan Mounting Location
Floor
RPM
1725
Amps
13.4/6.8-6.7
Material
Welded Steel
Fan Housing Material
Steel
Assembly Required
No
Wheeled Base
Mobile
Motor hp
1 hp

Description

Hazardous-Location Industrial Fan, Blade Dia. 24 in, Mobile, Non-Oscillating, 1 Speeds, Voltage 115/208 to 230V AC, 1 Phase, CFM High 12,867, Motor HP 1 hp, Motor RPM 1725, Operating Amps 13.4 / 6.8-6.7, Fan Mounting Location Floor, Fan Accessory Style Standard, Fan RPM 1725, Sound Level 100 dBA, Max. Ambient Temp. 120 Degrees F, Hz 60 Hz, Watts 1610, Motor Type Dual Voltage Capacitor Start, Drive Type Direct Drive, Height 63 in, Width 30 in, Max. Depth 32 In., Cord Length 2 ft.
