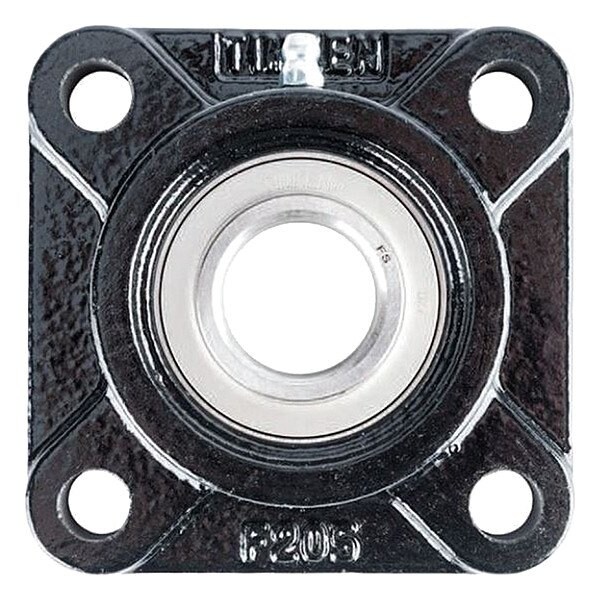

Flange Mount Bearing, AS, 45 mm dia
Mfr # UKF210
Zoro # G915563567
product price:Â $229.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Metric
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Concentric Locking Collar
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
UKF210
Zoro #
G915563567
UPC #
-
Country of Origin
Canada
Dimensions
Bore Diameter
45 mm
Mount Hole Center-to-Center Length
111 mm
Overall Length
143 mm
Overall Width
52 mm
Overall Height
143 mm
Flange Thickness
16 mm
Center Height
71.5 mm
Mount Hole Size
M14
Mounting Bolt Size
M14
Back Side to Center Width
22 mm
Mount Hole Center-to-Center Height
111 mm
Description
Flange Mount Bearing, Back Side to Center Width 22 mm, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 45 mm, Bore Type Cylindrical, Center Height 71.5 mm, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing UK210, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 3800 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
