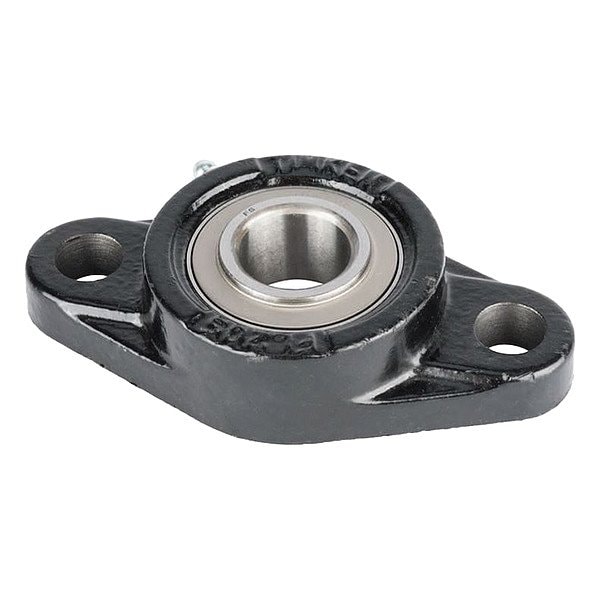

Flange Mount Bearing, AS, 45 mm dia
Mfr # UKFL210
Zoro # G015549065
product price:Â $229.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Metric
Housing Type
Rhombus
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
UKFL210
Zoro #
G015549065
UPC #
-
Country of Origin
Multiple
Dimensions
Bore Diameter
45 mm
Mount Hole Center-to-Center Length
157 mm
Overall Length
197 mm
Overall Width
52 mm
Overall Height
115 mm
Flange Thickness
15 mm
Center Height
57.5 mm
Mounting Bolt Size
M16
Back Side to Center Width
22 mm
Mount Hole Size
M16
Description
Flange Mount Bearing, Back Side to Center Width 22 mm, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 45 mm, Bore Type Cylindrical, Center Height 57.5 mm, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing UK210, Lubricant Material NLGI 2 Lithium Complex Grease, Maximum Speed 3801 RPM Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F
