Coolant Through Retention Knob
Mfr # PSCM-575
Zoro # G811178087
product price: $24.19
/eaKey Features
Thread Size
1/2"-13
Overall Length
1.1 in
Flange to Knob Length
0.46 in
Knob Angle
45 Degrees
Taper Size
CAT30
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PSCM-575
Zoro #
G811178087
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
1/2"-13
Overall Length
1.1 in
Flange to Knob Length
0.46 in
Taper Size
CAT30
Neck Dia.
0.385 in
Flange to Angle Length
0.32 in
Details
Item
Coolant Through Retention Knob
Knob Angle
45 Degrees
Number of O-Ring(s)
0
Coolant Fed
Coolant Through
Description

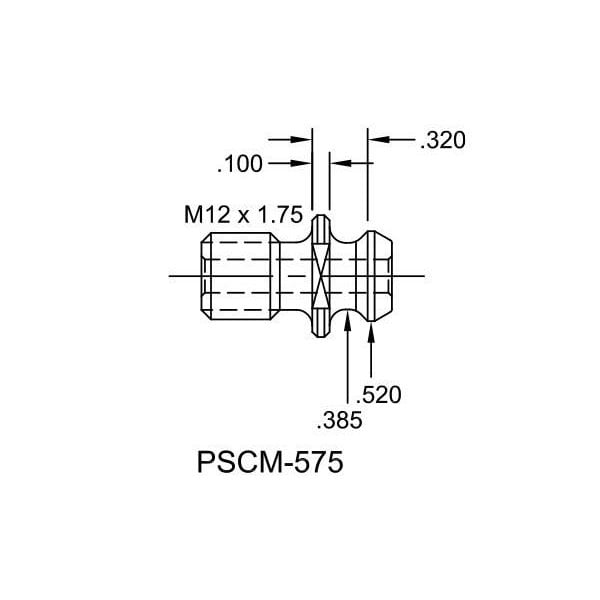

PSCM-575, CAT30 Coolant Through Retention Knob with a 45 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
