Shop TPI

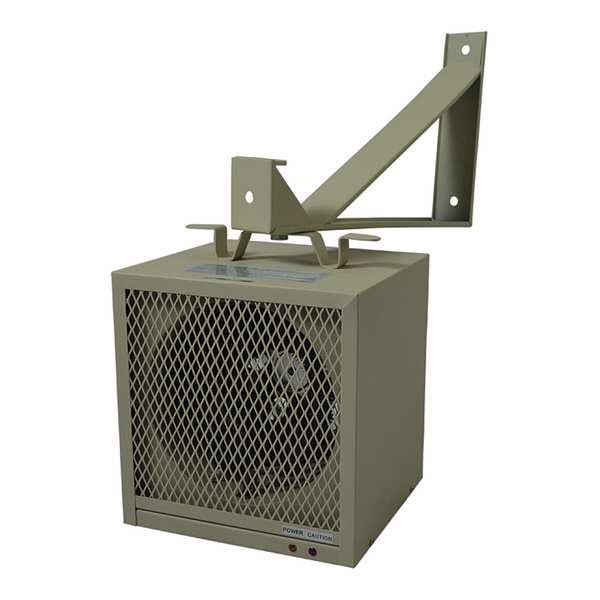

4.8kW Electric Utility Heater, 1-Phase, 240/208V

  • Mfr # HF-5848-TCS

  • Zoro # G7602201

product price:  $373.99
/ea
Free Shipping & Returns

Key Features

Heater Voltage
208/240VAC
Height
11"
Width
10-5/8"
Depth
9-5/8"
Housing Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HF-5848-TCS
Zoro #
G7602201
UPC #
686334503396
Country of Origin
China

Dimensions

Height
11"
Width
10-5/8"
Depth
9-5/8"
Manufacturers Warranty Length
1 yr
Overall Width
10 5/8 in
Overall Dimensions - H x W x D
11 in x 10-5/8 in x 9-5/8 in
Overall Depth
9 5/8 in
Overall Height
11 in
Overall Length
11 in

Details

Heater Voltage
208/240VAC
Housing Material
Steel
Phase
1
Air Flow
238 cfm
Item
Wall & Ceiling Heater
Amps AC
20.0/17.3 A
Hz
60
Electric Heater Phase
1
Electric Heater Item
Electric Utility Heater
Includes
Ceiling Bracket, Wall
Standards
ETL Listed for US & Canada
Temp. Rise
55 Degrees F
Features
Operates On 240 or 208V, 1-Phase, Can Operate As Portable Heater for Bench or Floor Operation, or Mount to The Wall or Ceiling with The Supplied Steel Bracket, Steel Housing with Beige Powder-Coated Finish, Includes Handle with Electric Cord Reel, Fan-Forced Steel Tubular Heating Element Design Generating As Much As 15,086 Btu, Includes 6 ft. Cord with Grounded Plug, Built-In Thermostat, with Automatic Thermal Limit Cut-Out Safety Device, Power-On Indicator and Overheat Pilot Lights, NEMA Plug Configuration (#6-30P)
kW
4.8
BtuH
15,086
Heater Housing Finish
Painted
Wattage Output
3.6 kW, 4.8 kW
Contactor Coil Voltage
208/240V AC
Housing Color
Beige
Frequency
60 Hz
Heating Method
Fan Forced
Control Type
Thermostat
Horizontal Air Throw
10 ft
Air Temp. Rise
74 Degrees F
Voltage
208/240V AC
Heating Capacity
15,086 BTU
Voltage, Phase
208/240V AC, 1-phase
Housing Finish
Powder Coated
Vertical Floor Coverage
12 ft
Amperage
17.3 A / 20.0 A
Vertical Mounting H
7 to 12 ft
Requires
Proper Electrical Service
For Location
Indoor
Thermostat Included
Thermostat Included
Electrical Connection
Hardwired
Grille Color
Beige
Duty Rating
Commercial Grade
NEMA Plug Configuration
Hardwired
Element Type
Metal Sheath
Programming Capability
Non-Programmable

Description

Electric Wall & Ceiling Unit Heater, Overall Height 11 in, Overall Width 10 5/8 in, Overall Depth 9 5/8 in, Air Flow 238 cfm, Air Temp. Rise 74 Degrees F, Voltage 208/240V AC, 1 Phase, Wattage Output 3.6 kW, 4.8 kW, Heating Method Fan Forced, Heating Capacity 15,086 BtuH, Mounting Location Wall, Horizontal Air Throw 10 ft, Frequency 60 Hz, Amperage 17.3A/20A, Control Type Thermostat, Contactor Coil Voltage 208/240VCA, Housing Color Beige, Housing Finish Painted, Housing Material Steel
