Shop TRANE

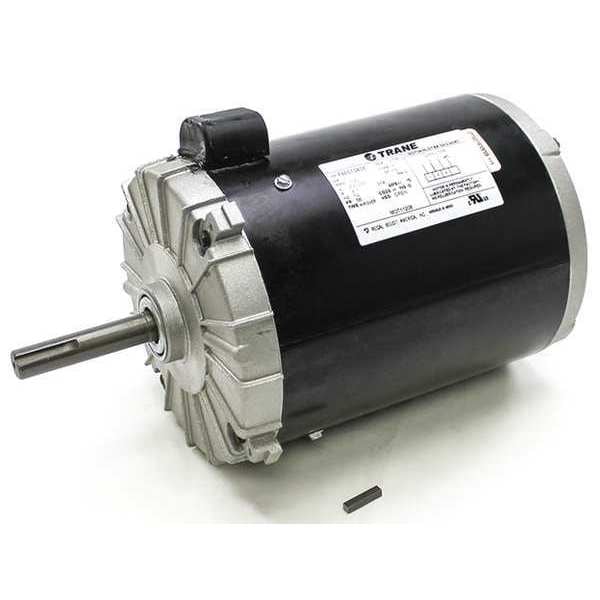

Condenser Fan Motor, 1 hp

  • Mfr # MOT11206

  • Zoro # G2492099

product price:
$
1,577.99
/ea
Free Shipping & Returns

Key Features

Voltage
200-230V AC
RPM Range
1,101-1,200
Frame
56
Ins. Class
B; F1
Motor Shaft Rotation
CW/CCW
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MOT11206
Zoro #
G2492099
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
12 7/8 in
Shaft Dia.
5/8 in
Frame Size
56
Shaft Length
3 in
Shaft Diameter
5/8 in
Wire Rope Length
12 7/8 in
Length
12 7/8 in

Details

Item
Motor, 1 HP, 200-230V, 1140 rpm
Voltage
200-230V AC
RPM Range
1,101-1,200
Frame
56
Ins. Class
B; F1
Motor Shaft Rotation
CW/CCW
HP
1 hp
Motor Design
Three-Phase
Motor Bearings
Ball
Voltage Compatibility
200V AC, 230V AC
Motor Service Factor
1.25
Nameplate RPM
1140
Full Load Amps
4.1 A
Motor Enclosure Design
Open Drip Proof
Phase
Three
Max. Ambient Temp.
149 Degrees F
Usable @ 200V
Usable at 200V
Motor Mounting Position
Vertical
Weight
28 lb
Conduit Box Position
F1
Nominal Efficiency
75 %
Ambient Temperature - Maximum
65 Degrees C
Compatible Manufacturer Part Number
SLG0032
Compatible Brand
Trane
Product Type
Condenser Fan Motor
Nameplate Service Factor @ 60 Hz
1.25
Insulation Class
F
Full Load Current @ 60 Hz
4.1 A
Capacitor Required
Capacitor Not Required
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,140 RPM, Voltage 200-230V AC, Full Load Amps 4.1 A, 56 Frame, Usable @ 200V Usable at 200V, Motor Service Factor 1.25, Ins. Class F, Max. Ambient Temp. 65 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof
