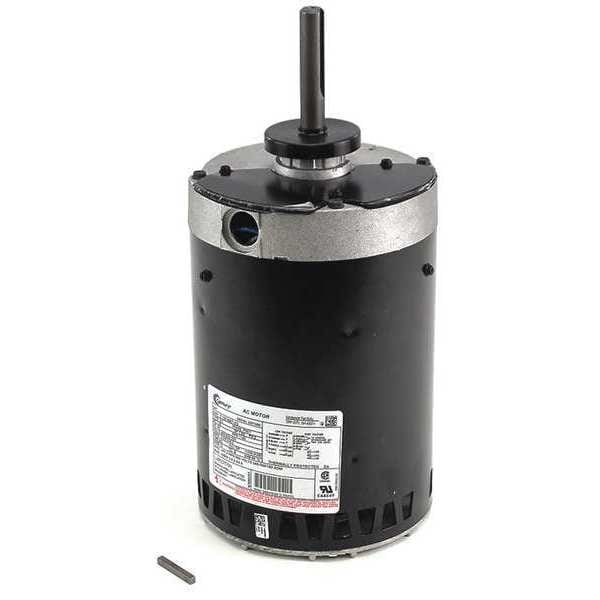

Fan and Blower Motor, 1 1/2 hp

  • Mfr # MOT6800
  • Zoro # G2491828
product price:
$
2,230.99
/ea
Free Shipping & Returns

Key Features

Voltage
200V AC, 460V AC
Nameplate RPM
1140
HP
1 1/2 hp
Shaft Dia.
5/8 in
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MOT6800
Zoro #
G2491828
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
3 in
Overall Length
13 15/16 in
Frame Size
56Y
Shaft Diameter
5/8 in
Wire Rope Length
13 15/16 in
Length
13 15/16 in

Details

Item
Motor, 1.5 HP, 200/460V, 1140 rpm
Voltage
200V AC, 460V AC
Nameplate RPM
1140
HP
1 1/2 hp
No. of Speeds
1
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Bearings
Ball
Frame
56
RPM Range
1,101-1,200
Motor Service Factor
1
Motor Shaft Rotation
CW/CCW
Motor Design
Three-Phase
Full Load Amps
6.0 A
Voltage Compatibility
200V AC, 460V AC
Ins. Class
B
Phase
Three
Usable @ 200V
Usable at 200V
Motor Mounting Position
Vertical
Full Load Amps @ 50Hz
6 A
Weight
30 lb
HP @ 50Hz
1 1/2 hp
Service Factor @ 50Hz
1
Voltage @ 50Hz
200
Max. Ambient Temp.
140 Degrees F
Insulation Class
B
Bearing Type
Ball
Full Load Current @ 60 Hz
3.0/5.8-6.0
Ambient Temperature - Maximum
60 Degrees C
Product Type
Fan and Blower Motor
Full Load Current @ 50 Hz
6 A
Capacitor Required
Capacitor Not Required
Nameplate Voltage @ 50 Hz
200V AC
Nameplate Horsepower @ 50 Hz
1 1/2 hp
Nameplate Service Factor @ 50 Hz
1
Motor Enclosure Type
Totally Enclosed Air-Over
Compatible Manufacturer Part Number
FAN4082
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1
Compatible Brand
Trane

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Full Load Amps 3.0/5.8-6.0, 56Y Frame, Usable @ 200V Usable at 200V, Motor Service Factor 1, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
