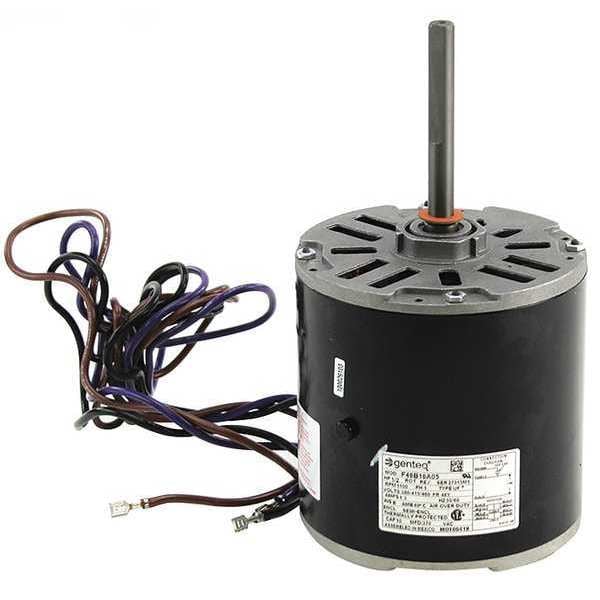

Trane Motor, 1/2 hp MOT5419 - main

Motor, 1/2 hp

  • Mfr # MOT5419

  • Zoro # G2491870

product price:  $793.99
/ea
Free Shipping & Returns

Key Features

Voltage
380-415/460V AC
Includes
Reversible Rotation Plug
Voltage Compatibility
380V AC, 415V AC, 460V AC
Nameplate RPM
1200
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MOT5419
Zoro #
G2491870
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
4 in
Shaft Dia.
1/2 in
Frame Size
48Y
Shaft Diameter
1/2 in

Details

Item
Motor, 1/2 HP, 460V, 1100 rpm, CW
Voltage
380-415/460V AC
Includes
Reversible Rotation Plug
Voltage Compatibility
380V AC, 415V AC, 460V AC
Nameplate RPM
1200
Phase
Single
HP
1/2 hp
No. of Speeds
1
Motor Mounting Type
Belly Band
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Shaft Rotation
CWSE
RPM Range
1,101-1,200
Ins. Class
B
Frame
48
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Full Load Amps
1.2 A
Full Load Amps @ 50Hz
1.2 A
HP @ 50Hz
1/2 hp
Max. Ambient Temp.
104 Degrees F
Voltage @ 50Hz
380-415
Insulation Class
B
Nameplate Voltage @ 50 Hz
380-415V AC
Motor Enclosure Type
Totally Enclosed Air-Over
Capacitor Required
Capacitor Not Included
Full Load Current @ 50 Hz
1.2 A
Full Load Current @ 60 Hz
1.3 A
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Compatible Brand
Trane
Nameplate Horsepower @ 50 Hz
1/2 hp
Product Type
Condenser Fan Motor
Number of Speeds
1

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,100 RPM, No. of Speeds 1, Full Load Amps 1.3 A, 48Y Frame, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Belly Band
