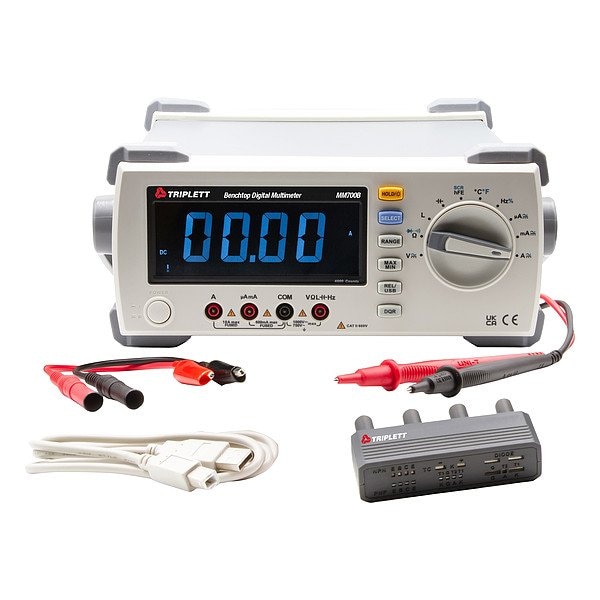

BenchDigitalMultimeter, 750VAC, 10A, 20MHz

  • Mfr # MM700B

  • Zoro # G522435356

product price:
$
539.99
/ea
Free Shipping & Returns

Key Features

AC Magnitude Calculation
True RMS
AC Current Measurement - Minimum
600 uA
Frequency Measurement Resolution
0.1 Hz
Basic DC Voltage Accuracy
+/-0.5%
Manufacturers Warranty Length
1 yr
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
MM700B
Zoro #
G522435356
UPC #
614395004910
Country of Origin
China
AC Magnitude Calculation
True RMS
AC Current Measurement - Minimum
600 uA
Frequency Measurement Resolution
0.1 Hz
Basic DC Voltage Accuracy
+/-0.5%
DC Current Measurement Resolution
0.1 uA
DC Voltage Measurement - Maximum
1,000 V
Basic AC Voltage Accuracy
+/-0.6%
Standards
CE, cETLus, RoHS
Current Units
A, uA
Basic AC Current Accuracy
+/-1%
AC Current Measurement - Maximum
10 A
AC Voltage Measurement - Minimum
600 mV
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
Basic DC Current Accuracy
+/-0.8%
Frequency Measurement - Maximum
20 MHz
Item
Bench Digital Multimeter
Resistance Measurement Resolution
0.1 ohm
DC Current Measurement - Minimum
600 uA
Resistance Measurement - Maximum
60 megaohm
Resistance Measurement Accuracy
+/-1%
Voltage Units
V
CAT Safety Rating
CAT II 600V
Frequency Measurement Accuracy
+/-0.1%
Includes
AC Power Cord, Alligator Clip Short Test Leads, Multi Function Test Socket, Software, Test Leads, Type K Temperature Probe, USB Cable
Temperature Measurement - Minimum
-40 Degrees F
Digital Display Screen Type
LCD
Frequency Measurement - Minimum
600 Hz
Capacitance Measurement - Maximum
6 mF
Operating Temperature - Minimum
32 Degrees F
Resistance Measurement - Minimum
600 ohm
Temperature Measurement - Maximum
1,832 Degrees F
AC Current Measurement Resolution
0.1 uA
Capacitance Measurement - Minimum
6 nF
Temperature Measurement Accuracy
+/-2%
Interface
USB
Parameters Measured
AC Current, AC Voltage, Capacitance, Diode, Continuity, DC Current, DC Voltage, Duty Cycle, Frequency, hFE, Inductance, Resistance, SCR, Temperature
Operating Temperature - Maximum
104 Degrees F
Calibration Certificate Included
No Certification Included
DC Voltage Measurement - Minimum
600 mV
DC Current Measurement - Maximum
10 A
AC Voltage Measurement - Maximum
750 V
Capacitance Measurement Accuracy
+/-10%

Description

Bench Digital Multimeter, USB Interface, Includes AC Power Cord, Alligator Clip Short Test Leads, Multi Function Test Socket, Software, Test Leads, Type K Temperature Probe, USB Cable, Manufacturers Warranty Length 1 yr
