  9. Digital Multimeter, 1,000 V Max DC, 0.1 mV Max AC, TRMS, 6000/60,000 Instrument Counts, LCD
No Product Image Available

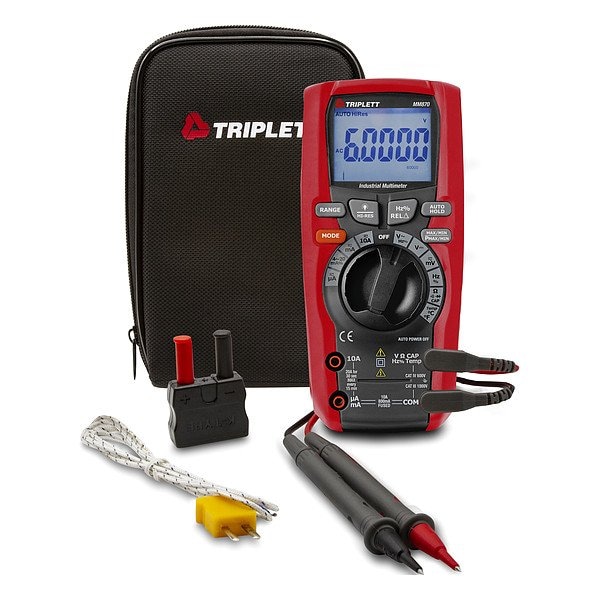

Digital Multimeter, 1,000 V Max DC, 0.1 mV Max AC, TRMS, 6000/60,000 Instrument Counts, LCD

  • Mfr # MM870-NIST

  • Zoro # G411899047

product price: $529.99
/ea
Free Shipping & Returns

Key Features

Display Type
LCD
Data Hold
Yes
Instrument Counts
6000/60,000
Includes
Test Leads, Type K Temperature Probe
Standards
UL STD 61010-1, 61010-2-033.Certified to: CSA STD C22.2 # 61010-1, 61010-2-033.EC EN 61010-1, 61010-2-033, 61326-1.EN61010-1:2010/A1:2019, EN IEC 61010-2-033:2021/A11, ETL
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MM870-NIST
Zoro #
G411899047
UPC #
614395004767
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr
Pulse Width
No
Battery Size
AAA
Overall Height
6.7 in
True RMS Bandwidth
1 kHz
Overall Width
3 in
Depth
1.9 in

Details

Item
Digital Multimeter
Display Type
LCD
Data Hold
Yes
Instrument Counts
6000/60,000
Includes
Test Leads, Type K Temperature Probe
Standards
UL STD 61010-1, 61010-2-033.Certified to: CSA STD C22.2 # 61010-1, 61010-2-033.EC EN 61010-1, 61010-2-033, 61326-1.EN61010-1:2010/A1:2019, EN IEC 61010-2-033:2021/A11, ETL
Auto Power Off
Yes
Data Logging
No
Audible Continuity
Yes
Diode Test
Yes
Calibration Certificate Included
Yes, NIST
Instrument Safety Rating
CAT IV 600V
Peak Hold
Yes
Auto Ranging
Yes
Duty Cycle
0.1 to 99.9%
Special Features
Low Pass Filter, Peak Hold, Electronic and Electrical Frequency Functions, IP67 Waterproof, Drop Proof to 6.5ft
Intrinsically Safe
No
Maximum AC Current Measurement
10 A
Basic AC Voltage Accuracy
+/-0.05%
Basic AC Current Accuracy
+/-0.05%
Waterproof
Yes
Basic DC Current Accuracy
+/-0.05%
Bluetooth Compatible
No
Bar Graph Included
Yes
Minimum/Maximum Memory
Max/Min/Avg
Dustproof
Yes
Maximum AC Voltage Measurement
1,000 V
AC Response Calculation
TRMS
Maximum DC Voltage Measurement
1,000 V
Removable Screen
No
Minimum DC Voltage Measurement
0.1 mV
Minimum AC Voltage Measurement
0.1 mV
Current Leakage Testing
No
Elapse Time Clock
No
Resistance Measurement Accuracy
+/-0.2%
Batteries Included
Yes
Resistance Measurement Resolution
0.1 ohm
Maximum DC Current Measurement
10 A
Capacity
1 Ah
Frequency Measurement Accuracy
+/-0.50%
Capacitance Measurement Resolution
6 mF
Frequency Measurement Resolution
0.01 Hz
Computer Interface Connection Type
None
AC Current Measurement Resolution
600 uA
Minimum Resistance Measurement
0.1 ohm
AC Voltage Measurement Resolution
0.1 mV
Battery Access
Yes
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Duty Cycle, Frequency, Resistance, Temperature (K)
Minimum Operating Temperature
-58 Degrees F
DC Voltage Measurement Resolution
0.1 mV
Temperature Measurement Accuracy
+/-1.2%
Thermal Imaging
No
Multiple On-Screen Displays
No
Minimum Capacitance Measurement
0.01 nF
Minimum Temperature Measurement
-58 Degrees F
Minimum DC Current Measurement
0.1 uA
Maximum Storage Temperature
140 Degrees F
Capacitance Measurement Accuracy
+/-3.5%
Battery Voltage
1.5V
IP Rating
IP67
Min-Max-Avg Button Included
Yes
DC Current Measurement Resolution
0.1 uA
Software Included
No
Maximum Temperature Measurement
1,832 Degrees F
Temperature Measurement Resolution
0.1 Degrees F
Fuse Access
Yes
Maximum Frequency Measurement
10 MHz
Basic DC Voltage Accuracy
+/-0.05%
Time of Day Clock
No
Minimum Frequency Measurement
0.001 Hz
Maximum Capacitance Measurement
6,000 uF
Minimum Storage Temperature
-4 Degrees F
Battery Chemistry
Alkaline
Minimum AC Current Measurement
0.1 uA
Maximum Resistance Measurement
60 megaohm
Weight
13.6 oz

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-0.05 Percent, Basic DC Voltage Accuracy +/-0.05 Percent, Data Hold Yes, Basic DC Current Accuracy +/-0.05 Percent, Instrument Safety Rating CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000/60,000 (Depending on Mode), Special Features Low Pass Filter, Peak Hold, Electronic and Electrical Frequency Functions, IP67 Waterproof, Drop Proof to 6.5ft
