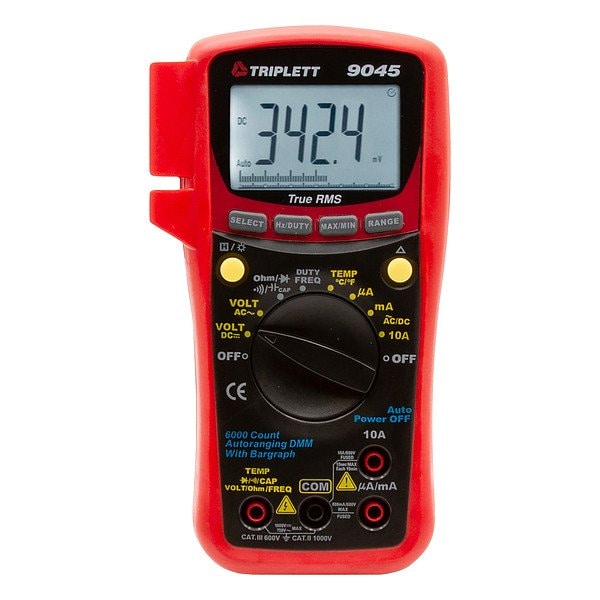

DigitalMultimeter, 10A, 750VAC/1000VDC

Mfr # 9045
Zoro # G722440877

143.99

Free Shipping & Returns

Key Features

Maximum DC Voltage Measurement

1,000 V

Battery Access

Yes

Minimum DC Voltage Measurement

600 mV

Minimum Capacitance Measurement

40 nF

Resistance Measurement Resolution

0.1 ohm

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 9045
Zoro #: G722440877
UPC #: 614395001209
Country of Origin: China

Dimensions

Overall Width: 3.7 in
Depth: 1.5 in
Battery Size: 9V
Manufacturers Warranty Length: 3 yr
Overall Height: 7 in

Details

Maximum DC Voltage Measurement: 1,000 V
Battery Access: Yes
Minimum DC Voltage Measurement: 600 mV
Minimum Capacitance Measurement: 40 nF
Resistance Measurement Resolution: 0.1 ohm
IP Rating: Not Rated
Minimum DC Current Measurement: 0.1 uA
Auto Power Off: Yes
Minimum AC Voltage Measurement: 6 V
Voltage Units: mV, V
Maximum Frequency Measurement: 10 MHz
Temperature Types Measured: Temperature K
Capacitance Measurement Resolution: 10 pF
CAT Safety Rating: CAT III 600V
DC Voltage Measurement Resolution: 0.1 mV
Maximum DC Current Measurement: 10 A
Display Type: LCD
Diode Test: Yes
Maximum AC Voltage Measurement: 750 V
Auto Ranging: Yes
Special Features: 44 Measurement Ranges with True RMS for Non-Sinusoidal or Noisy Waveforms, Double Molded Splash Proof, Dust Proof, Drop Resistant Case with Built-In Stand and CAT III 600V Safety Rating, Temperature, Frequency and Capacitance Measurement
Minimum Operating Temperature: 32 Degrees F
Minimum Storage Temperature: -20 Degrees F
Minimum AC Current Measurement: 0.1 uA
Batteries Included: Yes
Weight: 11 oz
Duty Cycle: Duty Cycle Test Included
Maximum Capacitance Measurement: 4,000 uF
Min-Max-Avg Button Included: Yes
Minimum Resistance Measurement: 600 ohm
Basic DC Current Accuracy: +/-2.0%
Includes: Battery, Alligator Clips, Type K Temperature Probe, Test Leads
Battery Voltage: 9 V
AC Voltage Measurement Resolution: 1 mV
Calibration Certificate Included: No Certification Included
Instrument Counts: 6,000
Maximum Resistance Measurement: 60 megaohm
Fuse Access: Yes
Frequency Measurement Resolution: 0 Hz
Maximum Storage Temperature: 60 Degrees F
AC Current Measurement Resolution: 0.1 uA
Data Hold: Yes
Basic AC Voltage Accuracy: +/-1.2%
Item: Digital Multimeter
Maximum AC Current Measurement: 10 A
Minimum Frequency Measurement: 10 Hz
Parameters Measured: AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Frequency, Resistance, Temperature
Current Units: A, uA
Frequency Measurement Accuracy: +/-1.0%
AC Response Calculation: TRMS
Basic DC Voltage Accuracy: +/-0.8%
Resistance Measurement Accuracy: +/-2.0%
Standards: CE
Capacitance Measurement Accuracy: +/-20.0%
DC Current Measurement Resolution: 0.1 uA
Minimum/Maximum Memory: Min/Max
Bar Graph Included: Yes
Includes Auto Sensing: No Auto Sensing Included
Basic AC Current Accuracy: +/-2.5%

Description

Digital Multimeter, Audible Continuity Not Applicable, Basic AC Voltage Accuracy +/-1.2 Percent, Basic DC Voltage Accuracy +/-0.8 Percent, Data Hold Yes, Basic DC Current Accuracy +/-2.0 Percent, Maximum AC Voltage Measurement 750 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000
