  9. Digital Multimeter/Environmental Meter, 600 V Max DC, 0.1 V Max AC, Average, Backlit LCD

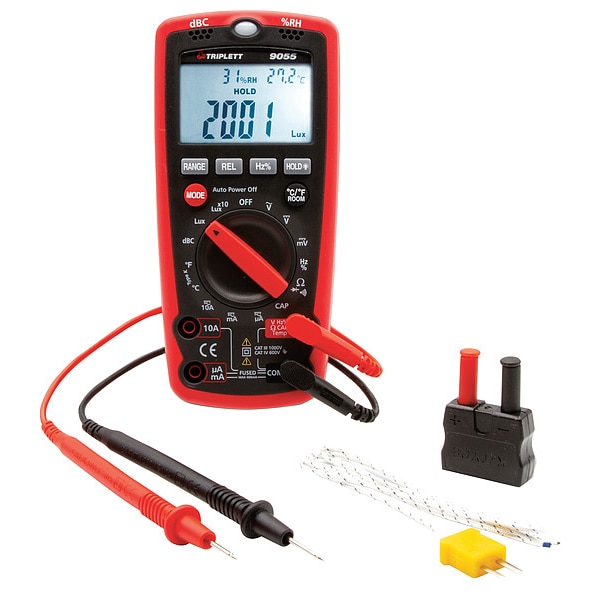

Triplett Digital Multimeter/Environmental Meter, 600 V Max DC, 0.1 V Max AC, Average, Backlit LCD 9055 - main

Digital Multimeter/Environmental Meter, 600 V Max DC, 0.1 V Max AC, Average, Backlit LCD

  • Mfr # 9055

  • Zoro # G4431210

product price: $119.99
/ea
Free Shipping & Returns

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
4,000
Includes
9V Battery, Alligator Clips, Temperature Probe, Test Leads
Standards
CAT IV 600V, CE
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9055
Zoro #
G4431210
UPC #
614395001445
Country of Origin
China

Dimensions

Depth
1.8 in
Manufacturers Warranty Length
3 yr
Overall Width
3 in
Battery Size
9V
Overall Height
6.7 in

Details

Item
Digital Multimeter/Environmental Meter
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
4,000
Includes
9V Battery, Alligator Clips, Temperature Probe, Test Leads
Standards
CAT IV 600V, CE
Auto Power Off
Yes
Data Logging
No
Audible Continuity
Yes
Diode Test
Yes
Max. DC Amps
10
Auto Ranging
Yes
Amps
10 A
Capacitance Range
10 pF to 100 uF
Voltage
700V AC/1000V DC
Max. AC Amps
10
Weight
11.2 oz
Instrument Safety Rating
CAT IV 600V
Display
Backlit LCD
Environmental Applications - Air Conditioners and Heat Pumps
Commercial/Industrial/Non-Medical
Basic DC Accuracy
+/-1.50%
Peak Hold
No
Ambient Operating Range
32 Degrees to 104 Degrees F
Duty Cycle
Yes
Calibration Certificate Included
No
Instrument Frequency Counter Range
0.001 Hz to 10 MHz
AC Response
50 Hz to 400 Hz
Max. Ohms
40 megohm
Temp. Range
-4 Degrees to 1400 Degrees F
Interface
No
NIST Certification By
Not Certified
Phase
1
Minimum AC Voltage Measurement
0.1 V
Battery Chemistry
Alkaline
Minimum/Maximum Memory
No
AC Response Calculation
Average
Minimum Resistance Measurement
0.1 megaohm
Maximum AC Current Measurement
10 A
Capacitance Measurement Accuracy
1.5 %
Minimum DC Voltage Measurement
0.1 V
Temperature Measurement Accuracy
1.5 %
Minimum Temperature Measurement
-4 Degrees F
Maximum DC Voltage Measurement
600 V
Resistance Measurement Accuracy
+/-1.5%
Basic AC Current Accuracy
+/-1.5%
Computer Interface Connection Type
None
Frequency Measurement Accuracy
1.5 %
Basic DC Voltage Accuracy
+/-1.5%
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
Minimum Capacitance Measurement
10 pF
Battery Access
Yes
Maximum DC Current Measurement
10 A
Maximum Temperature Measurement
1,400 Degrees F
Minimum Frequency Measurement
0.001 Hz
Basic AC Voltage Accuracy
+/-1.50%
Battery Voltage
9V
Maximum Frequency Measurement
10 MHz
Software Included
No
Maximum Capacitance Measurement
100 uF
Minimum AC Current Measurement
0.1 uA
Maximum Resistance Measurement
40 megaohm
NIST Certification By Manufacturer
Not Certified
Maximum AC Voltage Measurement
600 V
Basic DC Current Accuracy
+/-1.5%
Minimum DC Current Measurement
0.1 uA
Bar Graph Included
No

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-1.50 Percent, Basic DC Voltage Accuracy +/-1.5 Percent, Data Hold Yes, Basic DC Current Accuracy +/-1.5 Percent, Instrument Safety Rating CAT IV 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 4,000, Special Features Double Molded Splash Proof, Drop Resistant Case With Built-in Stand, Dust Proof, Maximum AC Current Measurement 10 A
