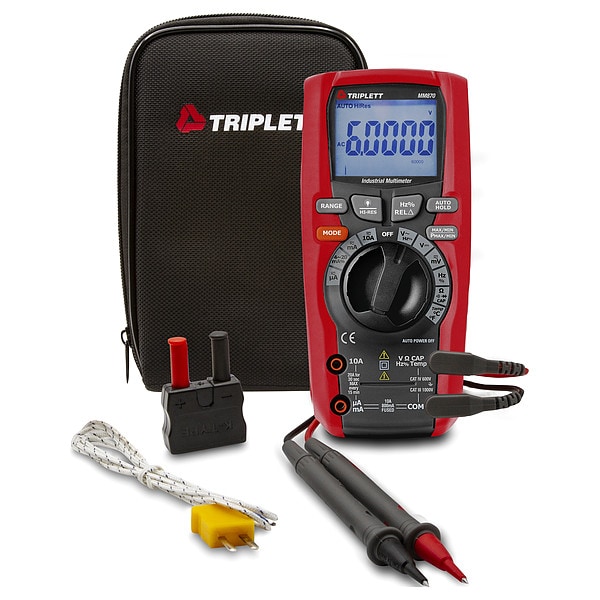

RMS Multimeter, 1,000 V Max DC, TRMS, 6,000/60,000 Instrument Counts, Backlit LCD

  • Mfr # MM870
  • Zoro # G109769195
product price:
$
439.99
/ea
Free Shipping & Returns

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000/60,000 (Depending on Mode)
Includes
(4) Batteries, Test Leads, Type K Temperature Probe
Standards
CE
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MM870
Zoro #
G109769195
UPC #
614395005016
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr
Depth
1.9 in
Battery Size
AAA
Overall Width
3 in
Overall Height
6.7 in

Details

Item
Digital Multimeter
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000/60,000 (Depending on Mode)
Includes
(4) Batteries, Test Leads, Type K Temperature Probe
Standards
CE
Auto Power Off
Yes
Audible Continuity
Yes
Auto Ranging
Yes
Instrument Safety Rating
CAT IV 600V
Peak Hold
Yes
Duty Cycle
Duty Cycle Test Included
Calibration Certificate Included
No Certification Included
Intrinsically Safe
No
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Low Pass Filter, Resistance
Battery Access
Yes
Bar Graph Included
Yes
Maximum AC Current Measurement
10 A
Basic DC Current Accuracy
+/-0.05%
Weight
13.6 oz
Maximum AC Voltage Measurement
1,000 V
Basic AC Current Accuracy
+/-0.05%
AC Response Calculation
TRMS
Maximum Resistance Measurement
60 megaohm
Maximum Frequency Measurement
20 MHz
Basic AC Voltage Accuracy
+/-0.05%
IP Rating
IP67
Minimum Operating Temperature
-58 Degrees F
Waterproof
Yes
Maximum DC Voltage Measurement
1,000 V
Maximum DC Current Measurement
10 A
Basic DC Voltage Accuracy
+/-0.05%
Min-Max-Avg Button Included
Yes
Maximum Capacitance Measurement
6 mF
Batteries Included
Yes
Current Leakage Testing
No
Thermal Imaging
No
Dustproof
Yes
Resistance Measurement Accuracy
+/-(0.2% + 3)
Temperature Measurement Accuracy
+/-(1.2% + 5 Degrees F/3 Degrees C)
Frequency Measurement Accuracy
+/-(0.5% + 2)
Removable Screen
No
Capacitance Measurement Accuracy
+/-(2.5% + 10)
Bluetooth Compatible
No
Current Units
A, uA
Minimum AC Voltage Measurement
0 V
Data Logging
No
Voltage Units
V
Minimum Resistance Measurement
0 ohm
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
Minimum AC Current Measurement
0 A
Battery Voltage
6 V
Minimum DC Voltage Measurement
0 V
Special Features
Data Hold Freezes Measurement on the Display and Auto Hold Updates it when a New Stable Reading is Detected, Drop Proof 6.5 ft (2m), Low Battery Indicator, LPF (Low Pass Filter), Relative Mode Displays Measurements Relative to a Stored Reference Value, True RMS Provides Better Accuracy
CAT Safety Rating
CAT IV 600V
Includes Auto Sensing
No Auto Sensing Included
Minimum DC Current Measurement
0 A

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-0.05 Percent, Basic DC Voltage Accuracy +/-0.05 Percent, Data Hold Yes, Basic DC Current Accuracy +/-0.05 Percent, Instrument Safety Rating CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000/60,000 (Depending on Mode)
