Shop TRIPLETT

DigitalClampMeter, TRMS, 1000A, 600VAC

  • Mfr # CM1070-NIST

  • Zoro # G122437958

product price:
$
440.99
/ea
Free Shipping & Returns

Key Features

Auto Power Off
Yes
Minimum Resistance Measurement
500 ohm
Minimum AC Voltage Measurement
500 mV
Capacitance Measurement Accuracy
+/-5%
Minimum Storage Temperature
-4 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CM1070-NIST
Zoro #
G122437958
UPC #
614395004972
Country of Origin
China

Dimensions

Battery Size
9V
Overall Width
3 in
Overall Height
9.1 in
True RMS Bandwidth
400 Hz
Manufacturers Warranty Length
1 yr

Details

Auto Power Off
Yes
Minimum Resistance Measurement
500 ohm
Minimum AC Voltage Measurement
500 mV
Capacitance Measurement Accuracy
+/-5%
Minimum Storage Temperature
-4 Degrees F
Jaw Opening
1.9 in
Batteries Included
Yes
Minimum DC Voltage Measurement
500 mV
Maximum Resistance Measurement
50 megaohm
Non-Contact Voltage Detector
Yes
Removable Screen
No
IP Rating
Not Rated
Basic AC Current Accuracy
+/-2.5%
Memory
Min/Max
Maximum AC Current Measurement
1,000 A
Voltage Units
mV, V
Resistance Measurement Accuracy
+/-3%
Battery Voltage
9 V
Maximum AC Voltage Measurement
600 V
Maximum Storage Temperature
140 Degrees F
Item
Digital Clamp Meter
Current Leakage Testing
No
Display Type
Backlit LCD
Diode Test
Yes
Temperature Types Measured
Temperature K
Minimum Operating Temperature
-148 Degrees F
Auto Ranging
Yes
Includes Auto Sensing
No Auto Sensing Included
Jaw Style
Clamp
Battery Access
Yes
Special Features
Dual Type K Input, Non-Contact Voltage Detector, Zero Button
Basic DC Voltage Accuracy
+/-0.1%
Minimum Capacitance Measurement
500 nF
Multiple On-Screen Displays
No
Peak Hold
Yes
Current Units
A, uA
Thermal Imaging
No
AC Response Calculation
TRMS
Thermometer Type
Type K Thermocouple
Time of Day Clock
No
Minimum AC Current Measurement
50 A
Software Included
No
Minimum DC Current Measurement
0 A
Maximum DC Current Measurement
1,000 A
CAT Safety Rating
CAT IV 600V
Includes

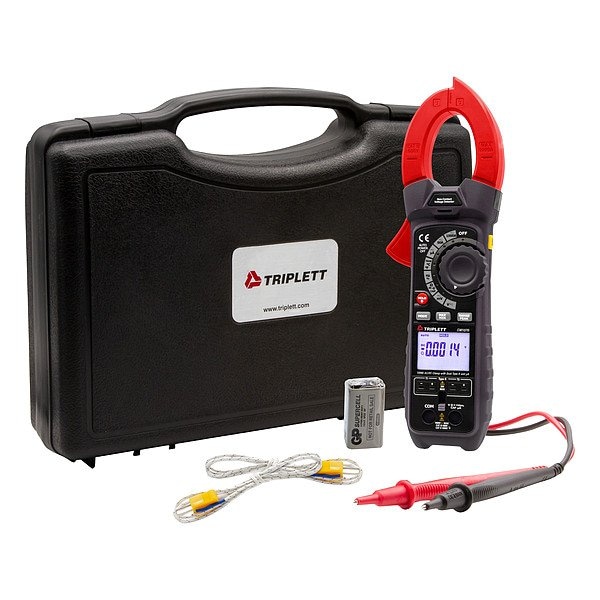

(2) Type K Thermocouple Bead Probes, Battery, Carrying Case, Test Leads
Maximum Frequency Measurement
10 MHz
Bar Graph Included
No
Basic AC Voltage Accuracy
+/-1.0%
Frequency Measurement Accuracy
+/-0.3%
Maximum Capacitance Measurement
5 mF
Maximum DC Voltage Measurement
600 V
Audible Continuity
Yes
Inrush Current Measurable
No
Minimum Frequency Measurement
50 Hz
Calibration Certificate Included
NIST Traceable
Standards
CE, RoHS
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, Temperature
Data Hold
Yes

Description

Digital Clamp Meter, Audible Continuity Yes, AC Response Calculation TRMS, Maximum AC Current Measurement 1,000 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, IP Rating Not Rated, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, Temperature, Intrinsically Safe Not Applicable, Data Logging Not Applicable
