Shop FLUKE

Digital Clamp Meter, LCD, 2,500 A A, 1.3 in (34mm) Jaw Capacity

  • Mfr # FLK-376FC-IFLEX36

  • Zoro # G204104761

product price:  $743.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
2,500 A
Clamp Meter Jaw Style
Plier
Max. DC Volts
1,000 V
Max. Ohms
60 kilohm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLK-376FC-IFLEX36
Zoro #
G204104761
UPC #
195112020982
Country of Origin
Singapore

Dimensions

Max. Conductor Size
34 mm
Manufacturers Warranty Length
3 yr
Battery Size
AA
Maximum Conductor Size
1.33 in (34 mm)
Overall Width
3.35 in
Overall Height
1.77 in

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
2,500 A
Clamp Meter Jaw Style
Plier
Max. DC Volts
1,000 V
Max. Ohms
60 kilohm
Jaw Capacity
1.3 in (34mm)
Temp. Range
-4 Degrees to 158 Degrees F, -40 Degrees to 158 Degrees F
Safety Rating
CAT III 1000V, CAT IV 600V
Display
LCD
Jaw Opening
1.34 in
Max. DC Amps
999.9 A
Max. AC Volts
1,000 V
Calibration Frequency
5 Hz to 500 Hz
Data Logging
Yes
Bar Graph
No
Midscale Resistance
30,000 ohm
Frequency Counter
5 Hz to 500 Hz
Special Features
4 Gripping Points for Pulling Round Objects, Log and Trend Measurements to Pinpoint Intermittent Faults, Secure Hold by Aggressive Serrated Jaws and 4-Point Gripping Hole, Side Cutting Edge for Wire Cutting, Straight, Half-Round, Long and Slim Knurled Jaws, Specially Profiled, Transmit Results Wirelessly Via Fluke Connect Measurements App, True-Rms Voltage and Current for Accurate Measurements on Non-Linear Signals, Unique Milled Wave Pattern Gripping Zones
Capacitance
9,999 uF
Non-Contact Voltage Detector
No
Audible Continuity
Yes
Operating Temp.
14 Degrees to 122 Degrees F
Memory
Min/Max/Average
Peak Hold
No
Inrush
Yes
Standards
CISPR 11: Group 1, Class A, FCC 47 CFR 15 Subpart B, IEC 61326-2-1, IEC 61326-2-2, KCC Class A
Auto Power Off
Yes
Counts
6000
Battery Type
Alkaline
AC Response
TRMS
AC Current Accuracy
1.5% +/-5 Digits
Data Hold
Yes
Auto Ranging
Yes
Calibration Certificate
No
Includes

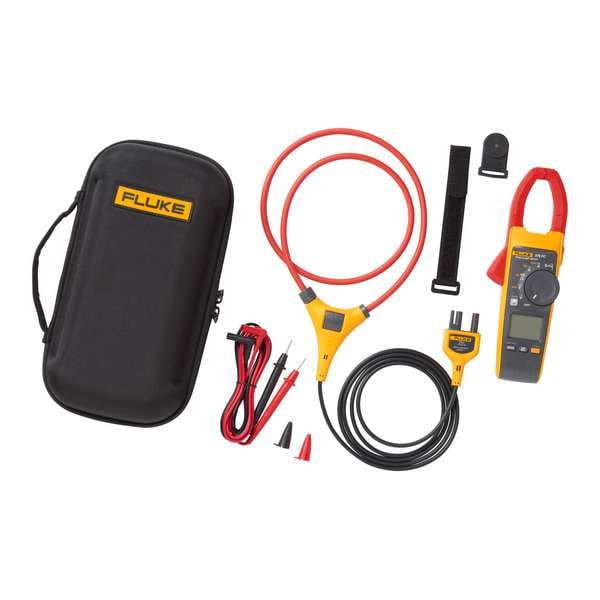

(2) Batteries, 18 in Flexible Current Probe, Soft Carrying Case, Test Leads (TL75), Magnetic Hanging Strap
Diode Test
Yes
DC Voltage Measurement Resolution
0.1 V
Intrinsically Safe
Yes
Maximum Resistance Measurement
60 kiloohm
Maximum Frequency Measurement
500 Hz
Battery Chemistry
Alkaline
Jaw Style
Clamp
Battery Access
Yes
Frequency Measurement Resolution
0.1 Hz
Basic DC Voltage Accuracy
1% +/-5 Digits
Basic AC Current Accuracy
2% +/-5 Digits
AC Voltage Measurement Resolution
0.1 V
Display Type
LCD
Basic AC Voltage Accuracy
1% +/-5 Digits
Resistance Measurement Accuracy
1% +/-5 Digits
Thermal Imaging
No
Batteries Included
Yes
Maximum Operating Temperature
1,994 Degrees F
AC Current Measurement Resolution
0.1 A, 1 A
Minimum Operating Temperature
14 Degrees F
Maximum Storage Temperature
140 Degrees F
AC Response Calculation
TRMS
Dustproof
No
Minimum Capacitance Measurement
1 uF
Instrument Counts
6,000
Bluetooth Compatible
Yes
Capacitance Measurement Accuracy
1% +/-4 Digits
DC Current Measurement Resolution
0.1 A
Resistance Measurement Resolution
0.1 ohm
Basic DC Current Accuracy
2% +/-5 Digits
Maximum AC Current Measurement
2,500 A
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
Minimum Storage Temperature
-40 Degrees F
Maximum AC Voltage Measurement
1,000 V
Capacitance Measurement Resolution
0.1 uF
Maximum DC Current Measurement
999.9 A
Bar Graph Included
No
Waterproof
No
Inrush Current Measurable
Yes
Maximum Capacitance Measurement
1,000 uF
Calibration Certificate Included
No Certification Included
Current Leakage Testing
No
Removable Screen
No
Frequency Measurement Accuracy
0.5% +/-5 Digits
IP Rating
IP30
Maximum DC Voltage Measurement
1,000 V
Battery Voltage
1.5 V
Min-Max-Avg Button Included
Yes
Minimum Frequency Measurement
5 Hz
Logging Memory
65,000
Minimum DC Voltage Measurement
0.1 V
Minimum Resistance Measurement
0.1 ohm
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Minimum DC Current Measurement
0.1 A
Minimum AC Voltage Measurement
0.1 V
Jaw Detachability
Fixed
Minimum AC Current Measurement
0.1 A
Includes Auto Sensing
No Auto Sensing Included

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 1000V, CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 2,500 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 999.9 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, IP Rating IP30, Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Intrinsically Safe Yes, Dustproof No, Waterproof No, Data Logging Yes
