Shop TRIPLETT

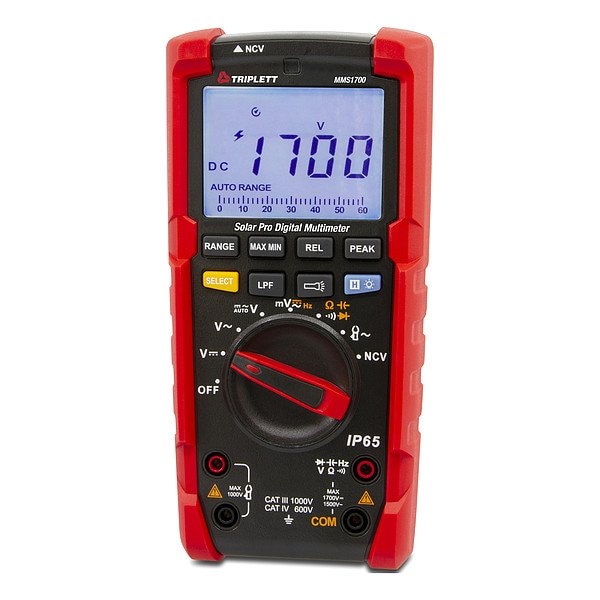

DigitalMultimeter, 3000A, 600VAC/1700VDC

  • Mfr # MMS1700

  • Zoro # G616665324

product price:
$
249.99
/ea
Free Shipping & Returns

Key Features

Voltage Units
V
Instrument Counts
6,000
Bar Graph Included
Yes
Capacitance Measurement Accuracy
+/-1.90%
Time of Day Clock
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MMS1700
Zoro #
G616665324
UPC #
614395005672
Country of Origin
China

Dimensions

Pulse Width
No
Battery Size
9V
True RMS Bandwidth
1 kHz
Overall Height
7.7 in
Manufacturers Warranty Length
1 yr
Overall Width
3.7 in
Depth
2.3 in

Details

Item
Solar Panel Pro Digital Multimeter
Voltage Units
V
Instrument Counts
6,000
Bar Graph Included
Yes
Capacitance Measurement Accuracy
+/-1.90%
Time of Day Clock
No
Maximum Capacitance Measurement
60 mF
Maximum AC Voltage Measurement
600 V
Basic DC Voltage Accuracy
+/-0.20%
Thermal Imaging
No
Fuse Access
No
Minimum Resistance Measurement
0 ohm
Removable Screen
No
Maximum Storage Temperature
140 Degrees F
Resistance Measurement Resolution
0.1 ohm
Capacitance Measurement Resolution
0.01 nF
Maximum AC Current Measurement
3,000 A
Auto Power Off
Yes
Minimum Operating Temperature
32 Degrees F
Calibration Certificate Included
No Certification Included
Basic AC Current Accuracy
+/-0.80%
Duty Cycle
No Duty Cycle Test Included
Diode Test
Yes
Minimum Storage Temperature
14 Degrees F
Auto Ranging
Yes
Batteries Included
Yes
Minimum Frequency Measurement
1 Hz
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Voltage, Frequency, Low Pass Filter, Non-Contact Voltage
Includes
Battery, Test Leads
Elapse Time Clock
No
DC Current Measurement Resolution
0.01 A
Minimum AC Current Measurement
0 A
Weight
17.1 oz
Peak Hold
Yes
Standards
CE
Minimum DC Voltage Measurement
0 V
DC Voltage Measurement Resolution
0.1 mV
Battery Access
Yes
IP Rating
Not Rated
Audible Continuity
Yes
Intrinsically Safe
No
Minimum AC Voltage Measurement
0 V
Software Included
No
Maximum DC Voltage Measurement
1,700 V
Maximum Resistance Measurement
60 megaohm
Data Hold
Yes
Resistance Measurement Accuracy
+/-0.80%
Data Logging
No
Capacity
600 mAh
AC Response Calculation
TRMS
Battery Voltage
9 V
Current Leakage Testing
No
Maximum Frequency Measurement
1 MHz
AC Voltage Measurement Resolution
0.1 mV
Includes Auto Sensing
No Auto Sensing Included
Frequency Measurement Accuracy
+/-0.080%
Display Type
LCD
Minimum Capacitance Measurement
1 nF
Multiple On-Screen Displays
Yes
Min-Max-Avg Button Included
No
Frequency Measurement Resolution
0.01 Hz
CAT Safety Rating
CAT IV 600V

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy Not Applicable, Basic DC Voltage Accuracy +/-0.20 Percent, Data Hold Yes, Basic DC Current Accuracy Not Applicable, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 1,700 V, Instrument Counts 6,000, Maximum AC Current Measurement 3,000 A, Calibration Certificate Included No Certification Included, Maximum DC Current Measurement Not Applicable, Multimeter Style Full Size
