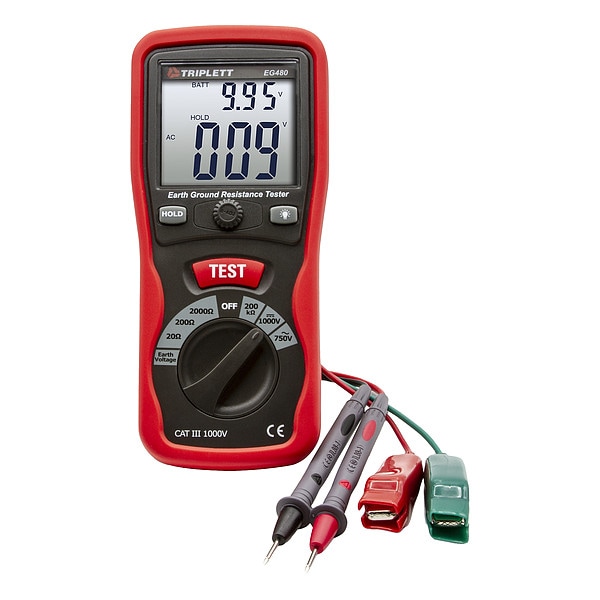

Triplett Earth Ground Tester Kit, 200 V, Digital EG480-NIST - main

Earth Ground Tester Kit, 200 V, Digital

  • Mfr # EG480-NIST

  • Zoro # G412488776

product price: $352.99
/ea
Free Shipping & Returns

Key Features

Operating Frequency
40 to 500 Hz
Calibration Certificate
NIST
Minimum Ground Resistance Measurement
20 ohm
Test Voltage
1000V DC, 750V AC
CAT Safety Rating
CAT III 1000V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EG480-NIST
Zoro #
G412488776
UPC #
614395002862
Country of Origin
China

Dimensions

Tool Height
7.8 in
Battery Size
AA
Tool Width
2 in
Manufacturer Warranty Length
1 yr
Tool Length
3.6 in

Details

Item
Earth Ground Tester Kit
Operating Frequency
40 to 500 Hz
Calibration Certificate
NIST
Minimum Ground Resistance Measurement
20 ohm
Test Voltage
1000V DC, 750V AC
CAT Safety Rating
CAT III 1000V
Ground Testing Functions
Selective (3- or 4-Pole) Earth Ground Rod Testing
Minimum Operating Temperature
32 Degrees F
Number of Batteries Required
6
Maximum Operating Temperature
104 Degrees F
Maximum Ground Resistance Measurement
2,000 ohm
Resistance Accuracy
+/-2%
Other Testing Functions
AC/DC Voltage, Earth Voltage, Resistance
Maximum Earth Voltage
200 V
Display Screen Type
LCD with Backlight
Battery Chemistry
Alkaline
Power Source
Battery
Standards
CE
Features
Auto Power Off and Low Battery Indicator, Data Hold, Overmolded Housing
Measurement Connectors
Stakes
Increment of Variation
0.01 ohm
Industry Application
Buildings, Communication Towers, Power Substations
Display Type
Digital
Tester Type
Ground Resistance Tester
Includes
(2) Auxiliary Earth Rods, (6) AA Batteries, Carrying Case, Protective Holster, Test Leads
Dustproof
No
Test Current
Less Than or Equal To 12 mA
Data Logger
No
USB Data Download Included
No
Waterproof
No
Bluetooth Compatible
No
Number of Digits
3
IP Rating
IP54

Description

Earth Ground Tester Kit, Bluetooth Compatible No, CAT Safety Rating CAT III 1000V, Calibration Certificate NIST, Current Accuracy Not Applicable, Data Logger No, Display Type Digital, Dustproof No, IP Rating IP54, Jaw Capacity Not Applicable, Leakage Current Range Not Applicable, Maximum Earth Voltage 200 V, Maximum Ground Resistance Measurement 2,000 ohm, Measurement Connectors Stakes, Minimum Ground Resistance Measurement 20 ohm, Number of Records Stored Not Applicable
