Item

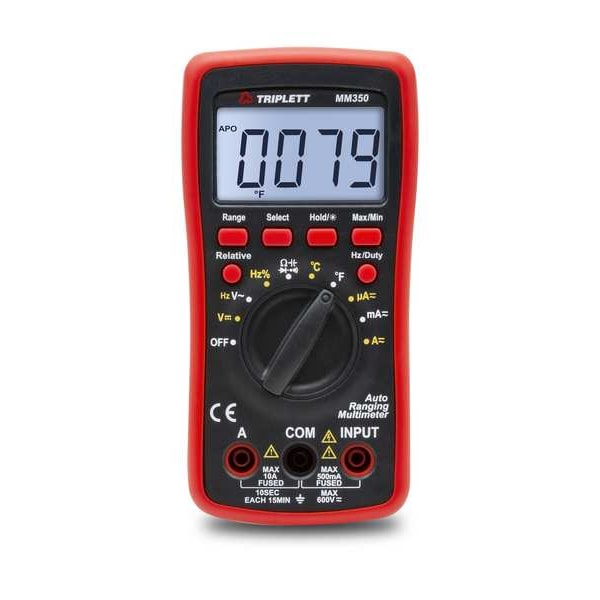

True RMS Auto Ranging Digital Multimeter
Includes
Test leads, temperature probe and (3) AAA batteries
Calibration Certificate Included
No
Instrument Safety Rating
CAT III 600V
For Use With
For the Professional or DIYer. Diagnose common wiring problems; Test batteries, solar cells, wall plugs, and power outlets; Check polarity of wires in wiring installations; Measure input and output resistance of circuits (motors, transformers, resistors); Check continuity of wires, circuits
Minimum/Maximum Memory
Yes
Temperature Measurement Resolution
1 Degrees F
DC Current Measurement Resolution
0.1 uA
Frequency Measurement Accuracy
+/-1%
Minimum AC Voltage Measurement
400 mV
Minimum Resistance Measurement
400 ohm
AC Voltage Measurement Resolution
1 mV
Minimum Operating Temperature
32 Degrees F
Temperature Measurement Accuracy
+/-(2.5% + 4)
Minimum Frequency Measurement
5 kHz
Capacitance Measurement Resolution
10 pF
Maximum AC Current Measurement
10 A
Current Leakage Testing
No
Maximum Temperature Measurement
2,000 Degrees F
Minimum Storage Temperature
-10 Degrees F
Minimum AC Current Measurement
400 uA
Maximum DC Current Measurement
10 A
Basic DC Current Accuracy
+/-1.2% of Reading +8 Digits
Resistance Measurement Accuracy
+/-1.5% of Reading + 3 Digits
Resistance Measurement Resolution
0.1 ohm
Maximum Resistance Measurement
40 megaohm
AC Response Calculation
TRMS
Minimum Capacitance Measurement
40 nF
Basic AC Voltage Accuracy
+/-1.0% of Reading +8 Digits; +/-1.2% of Reading +5 Digits; +/-1.2% of Reading +8 Digits
Basic AC Current Accuracy
+/-1.5% of Reading +8 Digits; +/-2.0% of Reading +10 Digits
Maximum Frequency Measurement
5 MHz
DC Voltage Measurement Resolution
0.1 mV
Maximum Capacitance Measurement
2 mF
Minimum DC Voltage Measurement
400 mV
Minimum Temperature Measurement
14 Degrees F
Minimum DC Current Measurement
400 uA
Basic DC Voltage Accuracy
+/-0.8% of Reading +3 Digits; +/-0.8% of Reading +5 Digits; +/-1.0% of Reading +5 Digits
Maximum Storage Temperature
122 Degrees F
Maximum AC Voltage Measurement
600 V AC
Maximum DC Voltage Measurement
600 V DC
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Temperature
Capacitance Measurement Accuracy
+/-5%
AC Current Measurement Resolution
0.1 uA
