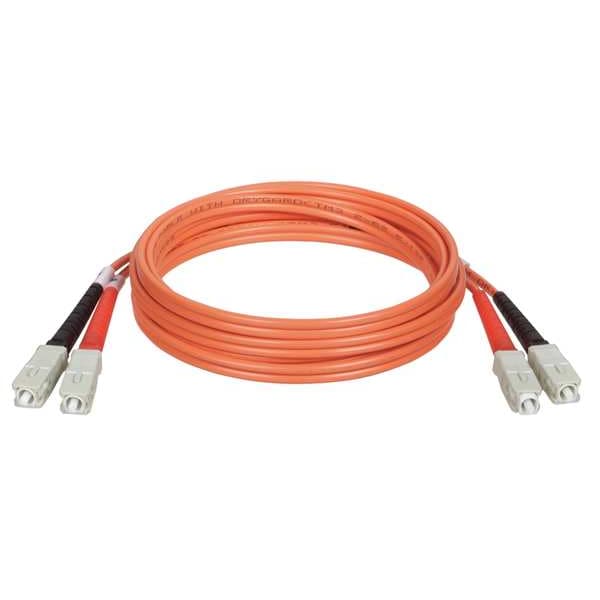

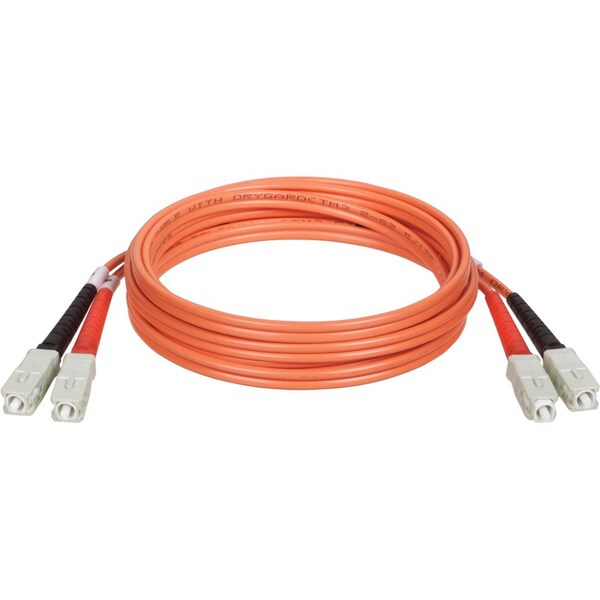

Tripp Lite Fiber Optic Patch Cord, SC/SC, 3m, Multi N306-010 - main

Fiber Optic Patch Cord, SC/SC, 3m, Multi

  • Mfr # N306-010

  • Zoro # G2056661

product price: $16.59
/ea

Key Features

Mode
Multi-Mode
End 1 Connection Type
SC
End 2 Connection Type
SC
Jacket Color
Orange
Overall Length
9.8 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N306-010
Zoro #
G2056661
UPC #
037332013309
Country of Origin
China

Dimensions

Overall Length
9.8 ft
Clad Dimension
125 micron
Core Dimension
62.5 Micrometer
Bandwidth
1 GBps, 10 GBps
Core Dimension - Fiber Optic Cable
62.5 Micrometer
Length - Patch Cord
3.0 m
Length
3m
Cable Length
10 ft
Clad Diameter
125 micron
Cable Length (ft.)
10
Core Diameter
62.5 micron
Cable Length (in.)
120
Core Diameter (microns)
62.5
Fiber Cable Length
3M (9.8 ft)
Clad Diameter (microns)
125
Minimum Bend Radius
20 mm (Dynamic); 10 mm (Static)

Details

Item
Fiber Optic Patch Cord
Mode
Multi-Mode
End 1 Connection Type
SC
End 2 Connection Type
SC
Jacket Color
Orange
Jacket Material
PVC
Fiber Count
2
Number of Fibers
Duplex
Fire Rating
Riser
Attenuation
3.0 dB/km @ 850 Nanometers
NEC Article and Type
OFNR
Standards
FDDI, REACH, RoHS Compliant
Simplex/Duplex/Multifiber
Duplex
Fire Rating - Data Cable
Riser
Jacket Material - Wire and Cable
PVC
Single Mode/Multi-Mode
Multi-Mode
Fiber Count - Fiber Optic Cable
2
Item - Data Cable
Fiber Optic Patch Cord
Fiber Optic Connector Type
SC/SC
Jacket Type
PVC
Connector Type - Patch Cord
SC, SC
Color
Orange
Side B - Connector 1
SC DUPLEX (MALE)
Side A - Connector 1
SC DUPLEX (MALE)
Technology
Multimode
Network Speed
1Gbps
Optical Mode
OM1
Approvals
FDDI and OFNR rated
Cable Type
Fiber Optic
Product Type
Network Cable
Additional Information
Manufactured from 62.5/125 duplex (zipcord) fiber, PVC jacket, Length: 10-ft. Connectors: 2 SC connectors on each end, Insertion loss testing performed on every connector (0.2db typical) and provided with cable, Beveled edge on ends of glass makes insertion of plug a breeze, Fiber made from glass (not a polymer)l), Color coded shrouds identify transmit and receive, Duplex multimode fiber is most commonly used in LAN applications where links are typically 10 feet or less, Fiber optic distributed data interface (FDDI) rated, OFNR (riser rated), Tripp Lite warrants this product to be free from defects in materials and workmanship for life
Package Contents
N306-010 Fiber Optic Patch Cable, 10-ft. duplex MMF cable SC/SC 62.5/125 fiber
Connector on First End Details
2 x SC Network - Male
Product Name
N306-010 Fiber Optic Patch Cable
Cable Characteristic
Patch Cable
Connector on Second End Details
2 x SC Network - Male
Fiber Material
Glass
Maximum Distance
3.0dB/km @ 800nm
Cable Jacket Color
Orange
Operating Humidity Range
5% to 85% RH, Non-Condensing
Cable Jacket Material
LSZH
Endface Polish
PC
Connector Color
White
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Insertion Loss
≤ 0.20 dB
Cable Jacket Rating
OFNR
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Network Compatibility
1 Gbps (Gigabit); 10 Gbps
Attenuation @ 850NM
3.0 dB/km
Package Includes
10-ft. (3.05 m) duplex MMF cable SC/SC 62.5/125 fiber
Storage Humidity Range
35% to 65% RH, Non-Condensing

Description

Fiber Optic Patch Cord, Mode Multi-Mode, End 1 Connection Type SC, End 2 Connection Type SC, Jacket Color Orange, Overall Length 9.8 ft, Jacket Material PVC, Clad Dimension 125 micron, Core Diameter 62.5 micron, Fiber Count 2, Number of Fibers Duplex, Fire Rating Riser, Attenuation 3.0 dB/km @ 850 Nanometers, Bandwidth 1 GBps, 10 GBps, Fiber Material Glass, Maximum Distance 3.0dB/km @ 800nm, NEC Article and Type OFNR, Standards FDDI, REACH, RoHS Compliant
