  11. Isolation Transformer, 1 kVA, 120V AC, 120V AC

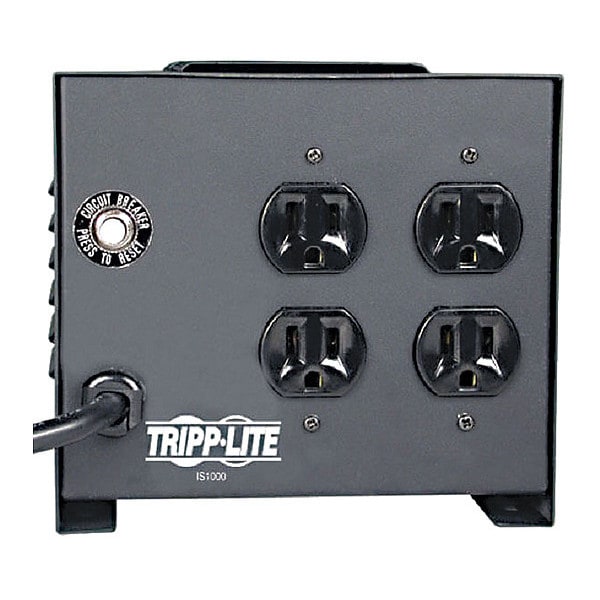

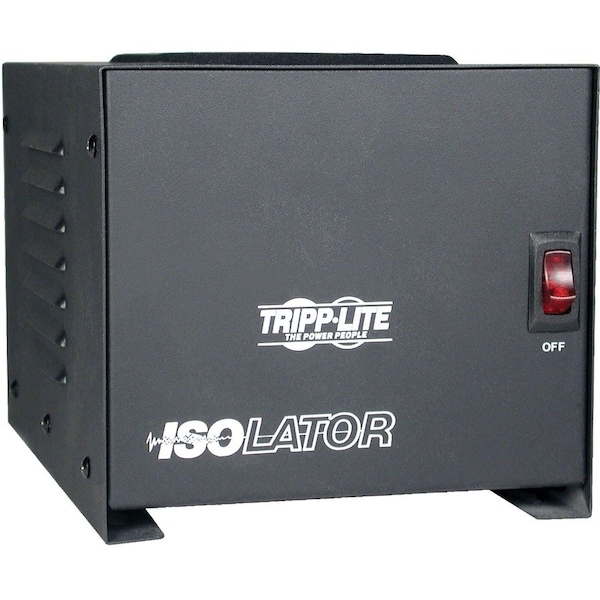

Tripp Lite Isolation Transformer, 1 kVA, 120V AC, 120V AC IS-1000 - main

Isolation Transformer, 1 kVA, 120V AC, 120V AC

  • Mfr # IS-1000

  • Zoro # G1393883

product price: $430.99
/ea
Free Shipping & Returns

Key Features

Input Voltage - Transformer
120V AC
Output Voltage
120V AC
Power Rating
1 kVA
Phase
1
Mounting - Transformer
Desk Top; Wall
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IS-1000
Zoro #
G1393883
UPC #
037332070067
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
7 1/4 in
Overall Width
7 1/4 in
Overall Depth
10 1/2 in
Depth
10.5 in
Height
7.25 in
Width
7.25 in
Cord Length
6 ft
Power Cord/Cable Length
6 ft

Details

Item
Isolation Transformer
Input Voltage - Transformer
120V AC
Output Voltage
120V AC
Power Rating
1 kVA
Phase
1
Mounting - Transformer
Desk Top; Wall
Hz - Electrical
60 Hz
IP Rating
Not Rated
Outdoor Rated - Transformer
No
Color
Black
Includes
(4) Output Receptacles, Lighted Power Switch, Power Cord
VA Rating - Transformer
1 kVA
Number of Outlets
4
Enclosure Type
Small Tower
Standards
Federal Trade Agreements Act (TAA)
Phase - Electrical
1
Output Voltage - Transformer
120V AC
NEMA Receptacle Configuration
5-15R
Temp. Rise
Not Rated
NEMA Plug Configuration
5-15p
Let-through Voltage (Ring Wave)
L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. A
Cooling Method
Convection
Protection Method
Yes, 9.0A circuit breaker
Total Harmonic Distortion
less than 1%
Let-through Voltage (Combination Wave)
L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. B
Suppression Joule Rating
680
Output Amp Capacity
8.3
Noise Suppression Rating
33-65dB normal mode; >80dB common mode
Efficiency
0.96
Compatibility
Point of Sale (POS) Equipment, Telecommunications Systems, Diagnostic Testing and Precise Measurement Devices, Sophisticated CAD/CAM Workstations, Computer Networking Equipment
Protection Type
Surge
Circuit Breaker
Yes
TAA Compliant
Yes
Receptacles
4 x NEMA 5-15R
Certifications & Standards
UL, cUL
Plug/Connector Type
NEMA 5-15P
Package Contents
IS1000 Isolation Transformer, Owner's Manual
Surge Energy Rating
680 J
Additional Information
Let-through Voltage (Combination Wave): L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. B, Let-through Voltage (Ring Wave): L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. A, Noise Suppression Rating: 33-65dB normal mode; &gt;80dB common mode, Surge Test Conditions: Per ANSI/IEEE C62.41 - IEEE587 Cat. A & B test waveforms, Total Harmonic Distortion: less than 1%, Transformer Type: Low impedence transformer-based line isolation transformer
Power Handling
1000 VA
Includes Circuit Breaker
Circuit Breaker Included
Temperature Rise
Not Rated

Description

Isolation Transformer, Input Voltage - Transformer 120V AC, Output Voltage - Transformer 120V AC, VA Rating - Transformer 1 kVA, NEMA Plug Configuration 5-15P, NEMA Receptacle Configuration 5-15R, Number of Outlets 4, Phase - Electrical 1, Hz - Electrical 60 Hz, Mounting - Transformer Desk Top, Wall, Outdoor Rated - Transformer No, Temp. Rise Not Rated, Color Black
