Item
Line Interactive UPS
UPS Type
Line Interactive
Output Voltage
127/120/110V AC
Backup Time (Half/Full Load)
11 min/4 min
NEMA Plug Configuration
L5-30P
NEMA Receptacle Configuration
(6) 5-15R; (1) L5-30R
Standards
UL1778, CSA, FCC Part 15 Class A, NOM
Load Capacity
3000 VA/2880 W
Network Management
SNMP Manageable
Package Contents

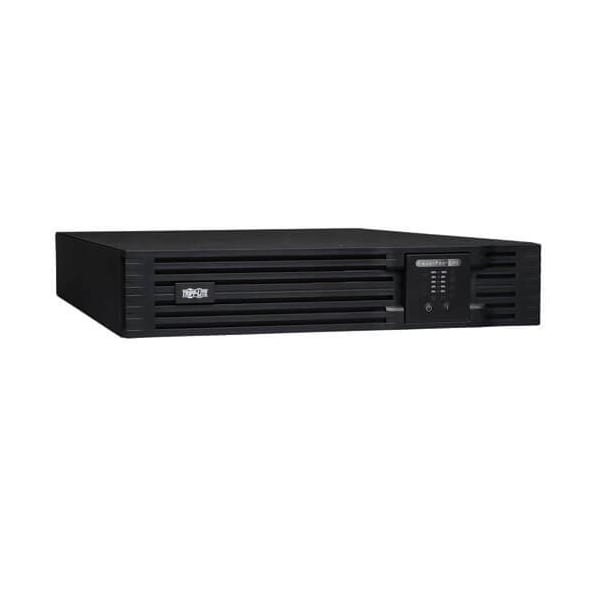

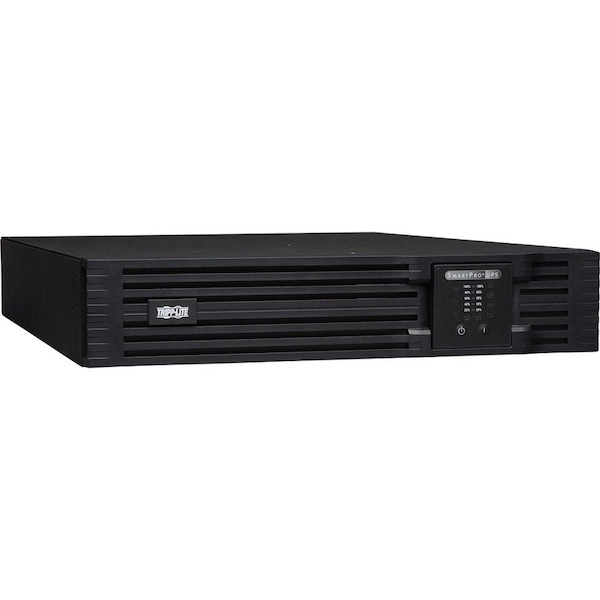

SmartPro SMART3000RMOD2U 3000VA Tower/Rack Mountable UPS, PowerAlert Software with USB, DB9 and EPO Cabling, 4 x Post Rack Mount Installation Accessories, Owner's Manual with Warranty Information
Software Included
PowerAlert Software
Typical Battery Recharge Time
4 Hour
Additional Information
2 x Front Panel Switches offer Power On/Off Control, Alarm Cancel, Self Test and UPS Voltage Configuration, Surge Suppression: 800 JoulesFront Panel LEDs: Utility Power, Voltage Regulation, On-Battery, Overload, Replace Battery, Site Wiring Fault, UPS Fault ConditionsAlarms: Power Failure, Overload, Low Battery
Low Voltage Transfer to Battery Power (Setpoint)
90
UPS AC Suppression Joule Rating
800
Battery Recharge Rate (Included Batteries)
Less than 4 hours to 90% (typical, full load discharge)
Battery Access
Front panel battery access door
Output Circuit Breakers
15A (x2) - breaker 1 covers 2 5-15R outlets, breaker 2 covers 4 5-15R outlets, L5-30R outlet is unbreakered
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Output Voltage Regulation (Battery Mode)
+/-5%
Network Management Cards
SNMPWEBCARD; WEBCARDLX; RELAYIOCARD
External Battery Pack Compatibility
BP72V15-2U (limit 1); BP72V28RT-3U (multi-pack compatible); BP72V18-2US (multi-pack compatible)
Output Capacity (Watts)
2880
Load Management Receptacles
Two switchable load banks - bank one consists of 2 5-15R outlets, bank 2 consists of 4 5-15R outlets
High Voltage Transfer to Battery Power (Setpoint)
146
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions
Nominal Input Voltage(s) Supported
110V AC; 120V AC; 127V AC
Recommended Electrical Service
30A 120V
Alarm Cancel Operation
Power-fail alarm can be silenced by pressing the on/test/mute switch
Battery Mode Heat Dissipation (BTU/Hr) @ Full Load
1601
Primary Form Factor
Rackmount
Audible Alarm
Audible alarm indicates on battery, low battery and overload warnings
Site Wiring Fault Indication
Includes site wiring fault LED
Undervoltage Correction
Input voltages between 101 and 110 are boosted by 15%
Included Mounting Accessory Description
4 post rackmount installation accessories included
AC Mode BTU / Hr. (Full Load)
518
Output Capacity (VA)
3000
Nominal Output Voltage(s) Supported
110V; 120V; 127V
AC Suppression Response Time
Instantaneous
AC Mode Efficiency Rating (100% Load)
0.95
LED Indicators
14 LEDs indicate line power, power fail, avr, fault, overload, replace battery and site wiring fault conditions; includes 5 LED load and battery charge meter
DC System Voltage (VDC)
72
Severe Undervoltage Correction
Input voltages between 90 and 100 are boosted by 30%
EMI / RFI AC Noise Suppression
Yes
Rated input current (Maximum Load)
24A
Overvoltage Correction
Input voltages between 132 and 146 are reduced by 12%
Communications Interface
DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)
Output AC Waveform (Battery Mode)
Pure Sine wave
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation
Individually Controllable Load Banks
Yes
High Availability UPS Features
Hot swappable batteries; Hot swappable UPS power module
Output Capacity Details
2400W max capacity with external battery packs connected
Installation Form Factors Supported with Optional Accessories
2 post rackmount ( 2POSTRMKITWM ); Wallmount ( 2POSTRMKITWM ); Tower ( 2-9USTAND )
Communications Cable
USB, DB9 and EPO cabling included
AC Suppression Joule Rating
800
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Frequency Compatibility Details
Automatic frequency selection
Relative Humidity
0 to 95%, non-condensing
Package Includes
UPS chassis pre-loaded with hot-swappable UPS electronics module and internal battery module;USB, DB9 and EPO cabling;4 post rackmount installation accessories;Owner's manual
Internal UPS Replacement Battery Cartridge
RBC96-RMOD2U
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 90 to 146
Battery Replacement Description
Hot-swappable, replaceable batteries
Output Voltage Regulation (Line Mode)
120V: -7% +9%, 110V: -8% + 11%, 127V: -9% +9%
