  6. Outlet Strip, Hospital Grade, 6 5-20R-HG, 5-20P-HG, 7 ft., White

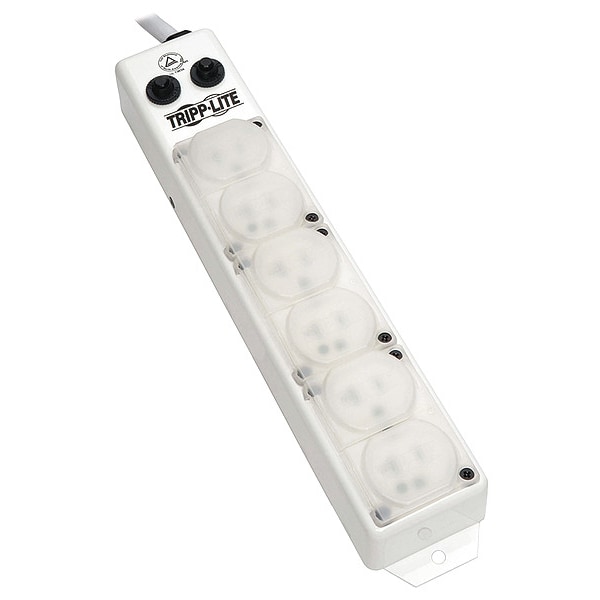

Tripp Lite Outlet Strip, Hospital Grade, 6 5-20R-HG, 5-20P-HG, 7 ft., White PS607HG20AOEM - main

Outlet Strip, Hospital Grade, 6 5-20R-HG, 5-20P-HG, 7 ft., White

  • Mfr # PS607HG20AOEM

  • Zoro # G0228973

product price:  $176.99
/ea
Free Shipping & Returns

Key Features

Type
Hospital Grade
Total Number of Outlets
6
Receptacle Configuration
5-20R-HG
Plug Configuration
5-20P-HG
Cord Length
7 ft.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PS607HG20AOEM
Zoro #
G0228973
UPC #
037332203656
Country of Origin
China

Dimensions

Cord Length
7 ft.
Cord Length - Ext. Cords and Outlet Strips
7 ft.
Width
2 1/2 in
Length
13 3/4 in
Height
1 1/2 in
Depth
1.5"
Wire Size
12 AWG
Length (Straight Wireway)
13 3/4 in

Details

Item
Outlet Strip
Type
Hospital Grade
Total Number of Outlets
6
Receptacle Configuration
5-20R-HG
Plug Configuration
5-20P-HG
Color
White
Gauge/Conductor
12/3
Standards
UL 1363A Listed
Mounting Style
Screw
NEC Cord Designation
SJT
Number of Power Switches
0
Voltage
120V AC
Medical Grade
Yes
Color - Ext. Cords and Outlet Strips
White
NEMA Receptacle Configuration
(6) NEMA 5-20R-HG
Circuit Breaker
600VAC FD
Number of Outlet Rows
1
Outlet Center Distance
1 1/2 in
Max. Amps - Ext. Cords and Outlet Strips
20.0
For Use With
Hospital Supplies
Power Indicator
No
Gauge/Conductor - Ext. Cords and Outlet Strips
12/3
NEMA Plug Configuration - Ext. Cords and Outlet Strips
5-20P
Number of Total Outlets - Ext. Cords and Outlet Strips
6
Number of Outlets
6
Includes
PS607HG20AOEM 6-Outlets Power Strip Owner's manual
Number of Transformer Outlets
0
Green Environmental Attribute
Yes
Amps
20A
Medical Facility Use
Patient Care - Only When Permanently Mounted (UL 1363A)
Hz
60 Hz
Material
Metal
Max. Amps
20A
Housing Material
Metal
NEMA Plug Configuration
NEMA 5-20P-HG
Number of Conductors
3
Trade Designation
SJT
Application
Healthcare Facility
Frequency
50/60 Hz
Features

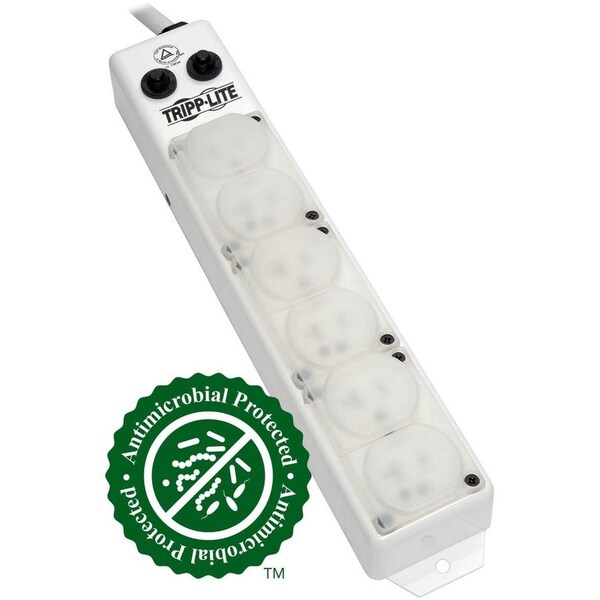

Anti-Microbial Protected, Integrated Keyhole Mounting Slots
Green Certification or Other Recognition
TÃœV, RoHS
Watts
2400W
Certifications & Standards
UL 1363A, TUV
Form Factor
Surface-mountable, Rack-mountable
Package Contents
PS607HG20AOEM 6-Outlets Power Strip, Owner's manual
Maximum Frequency
60 Hz
Input Voltage
120 V AC
Maximum Input Current
20 A
Minimum Frequency
50 Hz
Product Type
Power Strip
Outlets Measurement (Center to Center)
1.52 in.
Output Receptacles
(6) 5-20R-HG
Circuit Breaker (amps)
20
Mounting Details
Includes flanges
Frequency Compatibility
50 / 60 Hz
Outlet Orientation
Single row of 6
Form Factors Supported
IV poles, mobile carts, crash carts and mobile medical workstations
Mounting Holes or Slots
Yes
Included Mounting Accessories
Mounting tabs and flanges
Nominal Input Voltage(s) Supported
120V AC
Material of Construction
Metal
Package Includes
PS607HG20AOEM UL 1363A Medical-Grade Power Strip, 7-ft. (2.13 m) cord;Owner's manual
Built-In Circuit Breaker
Yes
Input Plug Features
Hospital Grade Plug
Overload Protection
2 x 20amp breakers (1 line, 1 neutral)

Description

Outlet Strip, Application Healthcare Facility, Housing Material Metal, Total Number of Outlets 6, Max. Amps 20 A, Cord Length 7 ft, Number of Power Switches 0, Power Indicator No, Number of Outlet Rows 1, Receptacle Configuration Hospital Grade NEMA 5-20R, Plug Configuration Hospital Grade NEMA 5-20P, Wire Size 12 AWG, Mounting Style Screw, Color White, Medical Facility Use Patient Care - Only When Permanently Mounted (UL 1363A), Number of Transformer Outlets 0, Number of Conductors 3
