  11. Outlet Strip, Surge, 6 5-15R, 5-15P, 6 ft., Black
Tripp Lite Outlet Strip, Surge, 6 5-15R, 5-15P, 6 ft., Black TLP606B - main

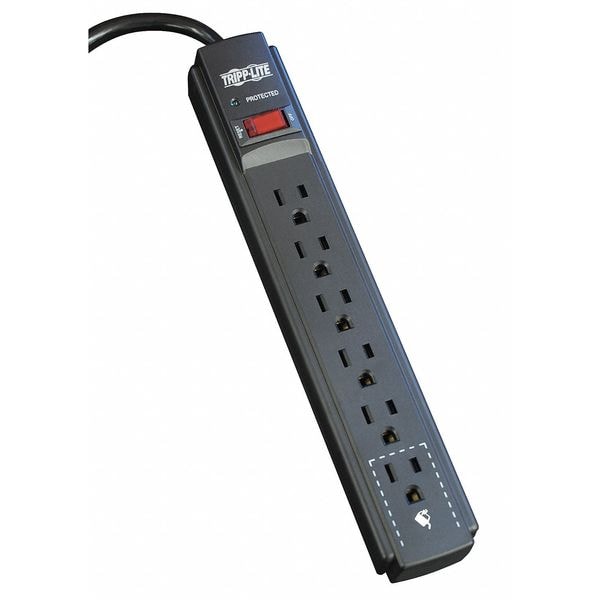

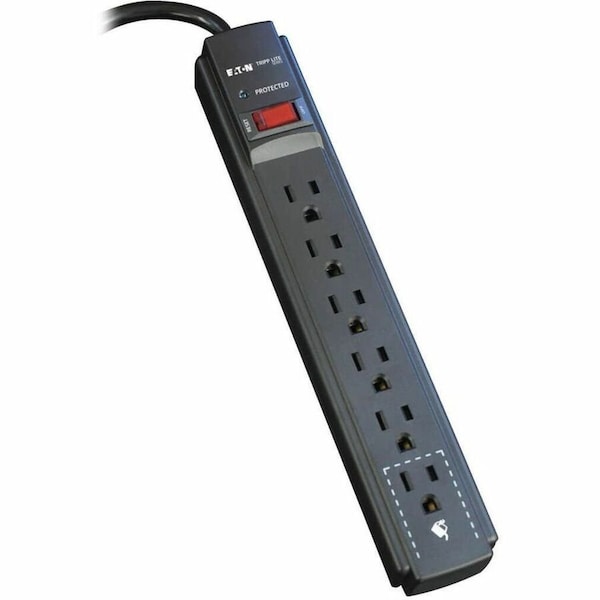

Outlet Strip, Surge, 6 5-15R, 5-15P, 6 ft., Black

  • Mfr # TLP606B

  • Zoro # G1391074

product price: $19.95
/ea

Key Features

Type
Surge
Total Number of Outlets
6
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Cord Length
6 ft.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TLP606B
Zoro #
G1391074
UPC #
037332138293
Country of Origin
China

Dimensions

Cord Length
6 ft.
Length
10 3/8 in
Width
1 5/8 in
Depth
1-17/64"
Height
1 1/4 in
Wire Size
14 AWG
Length (Straight Wireway)
10 11/32 in

Details

Item
Outlet Strip
Type
Surge
Total Number of Outlets
6
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
Black
Gauge/Conductor
14/3
Standards
Approvals RoHS; cUL / CSA (Canada); Exceeds IEEE 587 category A&B specifications; UL1363 (Power Tap); UL1449 3rd Edition (AC Suppression)
Housing Material
Plastic
Number of Transformer Outlets
1
Voltage
120V AC
Hz
50/60 Hz
Number of Outlets
6
For Use With
Desktop, Network Or Home Computing Application Requiring AC Protection
Max. Amps
15 A
Includes
(6) Safety Covers, Instruction Manual with Warranty Information
Coax Surge Protection
No
NEC Cord Designation
SJT
Circuit Breaker
1
NEMA Receptacle Configuration
5-15R
Rated Joules
900
Medical Grade
No
Outlet Center Distance
28.5mm
Mounting Style
Keyhole
NEMA Plug Configuration
5-15P
Max. Surge Current
35.5 kA
Power Indicator
Yes
Medical Facility Use
Outside Patient Care Areas (UL 1363)
Communication Port
None
Application
Home, Office
Number of Conductors
3
USB Charging Port
0
Trade Designation
SJT
Outlets Measurement (Center to Center)
28.5mm
EMI / RFI Filtering
Yes
Package Includes
TLP606B Protect It! 6-Outlet Surge Protector, Black Housing;Owner's manual
Input Cord Details
SJT
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
AC Suppression Response Time
< 1 ns
Maximum Surge Amps
35500
AC Suppression Joule Rating
790
Outlet Orientation
Single row of 6 outlets
Circuit Breaker (amps)
15
Diagnostic LED Details
Built-in LED confirms suppressor "protection present" (green) status
Material of Construction
Plastic
Output Receptacles
(6) 5-15R
Overload Protection
15A resettable illuminated combo switch / circuit breaker
Frequency Compatibility
50 / 60 Hz
Nominal Input Voltage(s) Supported
120V AC
Diagnostic LED(s)
Yes
Network (Ethernet) Protection
No
Mounting Holes or Slots
Yes

Description

Outlet Strip, Application Home; Office, Housing Material Plastic, Total Number of Outlets 6, Max. Amps 15 A, Cord Length 6 ft, Number of Power Switches 1, Power Indicator Yes, Number of Outlet Rows 1, Receptacle Configuration NEMA 5-15R, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Mounting Style Keyhole, Color Black, Medical Facility Use Outside Patient Care Areas (UL 1363), Number of Transformer Outlets 1, Number of Conductors 3, Voltage 120V AC, Outlet Center Distance 28 1/2 mm
