  11. Outlet Strip, Surge, 6 5-15R, 5-15P, 6 ft., Light Gray

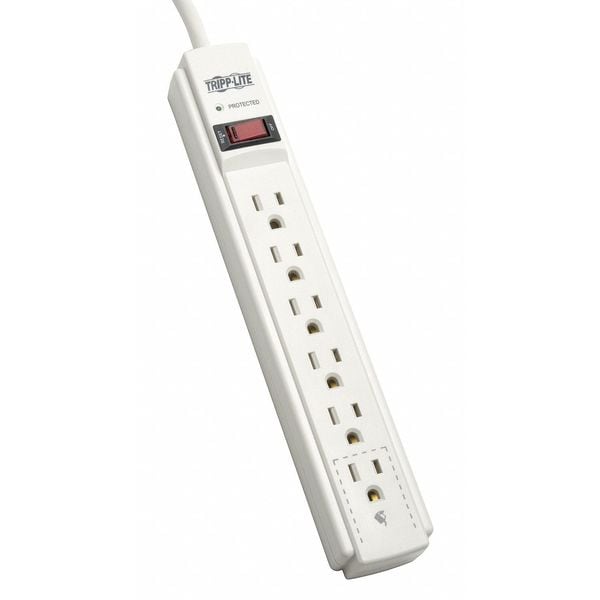

Tripp Lite Outlet Strip, Surge, 6 5-15R, 5-15P, 6 ft., Light Gray TLP606 - main

Outlet Strip, Surge, 6 5-15R, 5-15P, 6 ft., Light Gray

  • Mfr # TLP606

  • Zoro # G2462223

product price: $21.85
/ea

Key Features

Type
Surge
Total Number of Outlets
6
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Cord Length
6 ft.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TLP606
Zoro #
G2462223
UPC #
037332119049
Country of Origin
China

Dimensions

Cord Length
6 ft.
Length
10 3/8 in
Depth
1-17/64"
Width
1 5/8 in
Height
1 1/4 in
Wire Size
14 AWG
Length (Straight Wireway)
10 11/32 in

Details

Item
Outlet Strip
Type
Surge
Total Number of Outlets
6
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
Light Gray
Gauge/Conductor
14/3
Standards
Approvals RoHS; cUL / CSA (Canada); Exceeds IEEE 587 category A&B specifications; UL1363 (Power Tap); UL1449 3rd Edition (AC Suppression)
Coax Surge Protection
No
Max. Surge Current
35.5 kA
NEC Cord Designation
SJT
Medical Grade
No
Housing Material
Plastic
Number of Transformer Outlets
1
For Use With
Desktop, Network Or Home Computing Application Requiring AC Protection
Power Indicator
Yes
Max. Amps
15A
NEMA Plug Configuration
NEMA 5-15P
Includes
(6) Safety Covers, Instruction Manual with Warranty Information
Circuit Breaker
1
Mounting Style
Keyhole
Rated Joules
790
Number of Outlets
6
Outlet Center Distance
28.5mm
Voltage
120VAC
Hz
50/60 Hz
NEMA Receptacle Configuration
NEMA 5-15R
Outlet Surge Protection
Yes
Communication Port
None
Medical Facility Use
Outside Patient Care Areas (UL 1363)
Number of Outlet Rows
1
Number of Conductors
3
Trade Designation
SJT
Application
Home, Office
USB Charging Port
0
Frequency
50/60 Hz
Features
Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots
Watts
1800W
Maximum Line Current
15 A
Power Handling
1800 VA
Certifications & Standards
UL1449 (let through rating 330V), IEEE 587 Category A and B, UL1363, cUL
Compatibility
Ideal for any desktop, network or home computing application requiring basic AC protection
Surge Energy Rating
790 J
Input Voltage
120 V AC
Package Contents
Protec It 6 Outlets Surge Suppressor, Instruction manual with warranty information
Output Voltage
120 V AC
Recycled
No
Outlets Measurement (Center to Center)
28.5mm
Maximum Surge Amps
35500
Frequency Compatibility
50 / 60 Hz
Package Includes
TLP606 Protect It! 6-Outlet Surge Protector, Light Gray Housing;Owner's manual
Outlet Orientation
Single row of 6 outlets
Network (Ethernet) Protection
No
Circuit Breaker (amps)
15
AC Suppression Response Time
< 1 ns
Output Receptacles
(6) 5-15R
Overload Protection
15A resettable illuminated combo switch / circuit breaker
Mounting Holes or Slots
Yes
Diagnostic LED(s)
Yes
Nominal Input Voltage(s) Supported
120V AC
Input Cord Details
SJT
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
Diagnostic LED Details
Built-in LED confirms suppressor "protection present" (green) status
AC Suppression Joule Rating
790
EMI / RFI Filtering
Yes
Material of Construction
Plastic

Description

Outlet Strip, Application Home; Office, Housing Material Plastic, Total Number of Outlets 6, Max. Amps 15 A, Cord Length 6 ft, Number of Power Switches 1, Power Indicator Yes, Number of Outlet Rows 1, Receptacle Configuration NEMA 5-15R, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Mounting Style Keyhole, Color Gray, Medical Facility Use Outside Patient Care Areas (UL 1363), Number of Transformer Outlets 1, Number of Conductors 3, Voltage 120V AC, Outlet Center Distance 28 1/2 mm
