  11. Outlet Strip, Surge, 7 5-15R, 5-15P, 25 ft., Light Gray

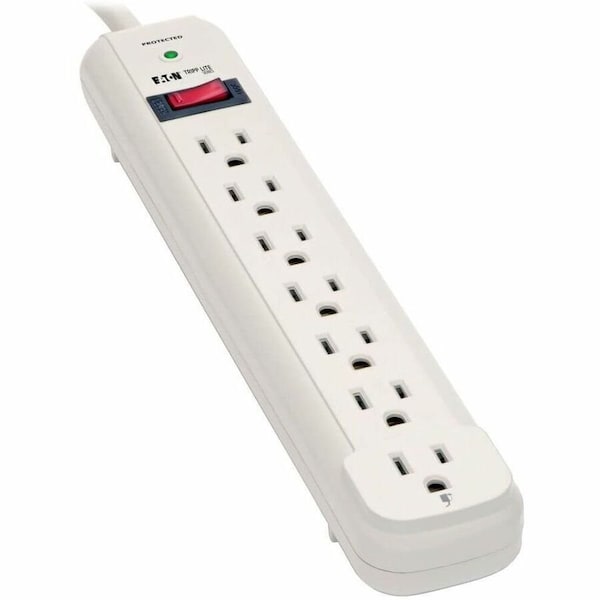

Tripp Lite Outlet Strip, Surge, 7 5-15R, 5-15P, 25 ft., Light Gray TLP725 - main

Outlet Strip, Surge, 7 5-15R, 5-15P, 25 ft., Light Gray

  • Mfr # TLP725

  • Zoro # G0519312

product price: $52.49
/ea

Key Features

Type
Surge
Total Number of Outlets
7
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Cord Length
25 ft.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TLP725
Zoro #
G0519312
UPC #
037332138316
Country of Origin
China

Dimensions

Cord Length
25 ft.
Length
11 3/4 in
Depth
1-21/64"
Width
2 in
Height
1 3/8 in
Wire Size
14 AWG
Length (Straight Wireway)
11 11/16 in

Details

Item
Outlet Strip
Type
Surge
Total Number of Outlets
7
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
Light Gray
Gauge/Conductor
14/3
Standards
Approvals RoHS; cUL / CSA (Canada); Exceeds IEEE 587 category A&B specifications; NOM (Mexico); UL1363 (Power Tap); UL1449 3rd Edition (AC Suppression)
Number of Outlets
7
Rated Joules
1,080
NEMA Receptacle Configuration
(7) NEMA 5-15R
For Use With
Desktop, Network Or Home Computing Application Requiring AC Protection
Noise Attenuation
Up to 20dB
Coax Surge Protection
No
Medical Grade
No
Housing Material
Plastic
Mounting Style
Keyhole
Hz
50/60 Hz
Outlet Center Distance
29mm Standard, 33mm Last Standard and Transformer
NEMA Plug Configuration
NEMA 5-15P
Voltage
120VAC
Power Indicator
Yes
Max. Amps
15A
Max. Surge Current
72 kA
Includes
(7) Safety Covers, Instruction Manual and Warranty Information
Circuit Breaker
1
NEC Cord Designation
SJT
Number of Transformer Outlets
1
Number of Outlet Rows
1
Communication Port
None
Amps
15A
Outlet Surge Protection
Yes
Medical Facility Use
Outside Patient Care Areas (UL 1363)
USB Charging Port
0
Trade Designation
SJT
Number of Conductors
3
Application
Home and Office
Frequency
50/60 Hz
Features
Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots
Watts
1800W
Input Voltage
120 V AC
Certifications & Standards
UL Listed Certification
Surge Energy Rating
1080 J
Output Voltage
120 V AC
Power Handling
1800 VA
Package Contents
Protect IT! 7 Outlets Surge Suppressor, TLP725 Surge Suppressor, Instruction manual and warranty information
Maximum Line Current
15 A
AC Suppression Response Time
< 1 ns
Maximum Surge Amps
72000
Outlet Orientation
Single row
Input Cord Details
SJT
AC Suppression Joule Rating
1080
Circuit Breaker (amps)
15
Network (Ethernet) Protection
No
Output Receptacles
(7) 5-15R
EMI / RFI Filtering
Up to 20 dB
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
Diagnostic LED(s)
Yes
Nominal Input Voltage(s) Supported
120V AC
Frequency Compatibility
50 / 60 Hz
Diagnostic LED Details
Built-in LED confirms suppressor "protection present" (green) status
Mounting Holes or Slots
Yes
Material of Construction
Plastic
Outlets Measurement (Center to Center)
Distance between standard outlets = 29mm; Distance between last standard outlet and transformer outlet = 33mm
Package Includes
TLP725 Protect It! 7-Outlet Surge Protector, Light Gray Housing;Owner's manual

Description

Outlet Strip, Application Home and Office, Housing Material Plastic, Total Number of Outlets 7, Max. Amps 15 A, Cord Length 25 ft, Number of Power Switches 1, Power Indicator Yes, Number of Outlet Rows 1, Receptacle Configuration NEMA 5-15R, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Mounting Style Keyhole, Color White, Medical Facility Use Outside Patient Care Areas (UL 1363), Number of Transformer Outlets 1, Number of Conductors 3, Voltage 120V AC
