  11. Outlet Strip, Surge, 7 5-15R, 5-15P, 4 ft., White

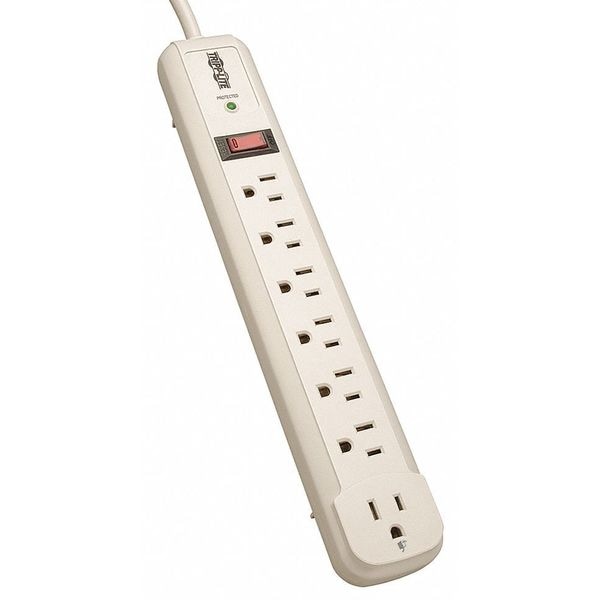

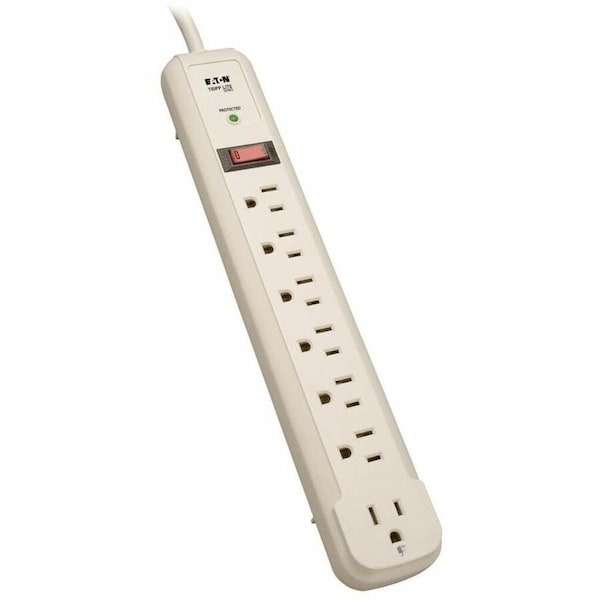

Tripp Lite Outlet Strip, Surge, 7 5-15R, 5-15P, 4 ft., White TLP74R - main

Outlet Strip, Surge, 7 5-15R, 5-15P, 4 ft., White

  • Mfr # TLP74R

  • Zoro # G4632415

product price: $23.69
/ea

Key Features

Type
Surge
Total Number of Outlets
7
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Cord Length
4 ft.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TLP74R
Zoro #
G4632415
UPC #
037332155658
Country of Origin
China

Dimensions

Cord Length
4 ft.
Width
2 3/8 in
Depth
1-21/64"
Length
12 3/8 in
Cord Length - Ext. Cords and Outlet Strips
4 ft.
Height
1 3/8 in
Wire Size
14 AWG
Length (Straight Wireway)
12 13/32 in

Details

Item
Outlet Strip
Type
Surge
Total Number of Outlets
7
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
White
Gauge/Conductor
14/3
Standards
Approvals RoHS; UL1449/1363/Cul
Housing Material
Plastic
Includes
(7) Total Outlets (6 At Right Angle and 1 Designated Transformer Plug Outlet)
Voltage
120V AC
Max. Amps
15 A
Medical Grade
No
Number of Transformer Outlets
1
Coax Surge Protection
No
Power Indicator
Yes
Telephone/Fax Surge Protection
No
Outlet Center Distance
28.5mm
Max. Surge Current
36 kA
NEMA Plug Configuration
5-15P
Mounting Style
Multiple Keyhole
For Use With
Desktop, Network Or Home Computing Application Requiring AC Protection
Circuit Breaker
1
NEMA Receptacle Configuration
5-15R
Number of Outlets
7
Rated Joules
540
NEC Cord Designation
SJT
Gauge/Conductor - Ext. Cords and Outlet Strips
14/3
Outlet Surge Protection
Yes
Communication Port
None
Number of Outlet Rows
1
Green Environmental Attribute
Yes
Hz
60 Hz
NEMA Plug Configuration - Ext. Cords and Outlet Strips
5-15P
Number of Total Outlets - Ext. Cords and Outlet Strips
7
Medical Facility Use
Outside Patient Care Areas (UL 1363)
Max. Amps - Ext. Cords and Outlet Strips
15.0
Color - Ext. Cords and Outlet Strips
White
Trade Designation
SJT
USB Charging Port
0
Number of Conductors
3
Application
Home and Office
Features
Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots
Green Certification or Other Recognition
RoHS
Watts
1800W
Power Handling
1800 VA
Surge Energy Rating
1080 J
Input Voltage
125 V AC
Maximum Line Current
15 A
Compatibility
Workstations, Desktop PCs, Telecom Systems
AC Suppression Response Time
< 1 ns
Circuit Breaker (amps)
15
Diagnostic LED(s)
Yes
Input Cord Details
SJT
Package Includes
TLP74R Surge Suppressor
Outlet Orientation
Single row
Network (Ethernet) Protection
No
Frequency Compatibility
60 Hz
Diagnostic LED Details
Built-in LED confirms suppressor "protection present" (green) status
Mounting Holes or Slots
No
Output Receptacles
(7) 5-15R
AC Suppression Joule Rating
1080
Outlets Measurement (Center to Center)
28.5mm
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
Nominal Input Voltage(s) Supported
120V AC
Material of Construction
Plastic
Maximum Surge Amps
36000

Description

Outlet Strip, Application Home and Office, Housing Material Plastic, Total Number of Outlets 7, Max. Amps 15 A, Cord Length 4 ft, Number of Power Switches 1, Power Indicator Yes, Number of Outlet Rows 1, Receptacle Configuration NEMA 5-15R, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Mounting Style Keyhole, Color White, Medical Facility Use Outside Patient Care Areas (UL 1363), Number of Transformer Outlets 1, Number of Conductors 3, Voltage 120V AC, Outlet Center Distance 28 1/2 mm
