  11. Outlet Strip, Surge, 7 5-15R, 5-15P, 6 ft., Gray

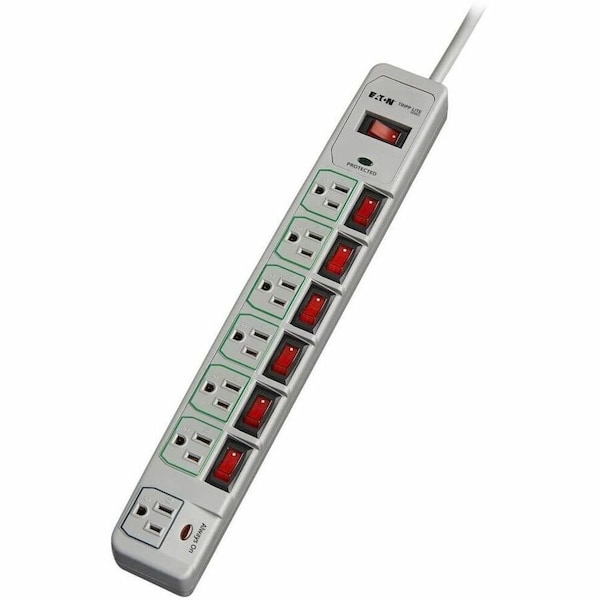

Tripp Lite Outlet Strip, Surge, 7 5-15R, 5-15P, 6 ft., Gray TLP76MSG - main

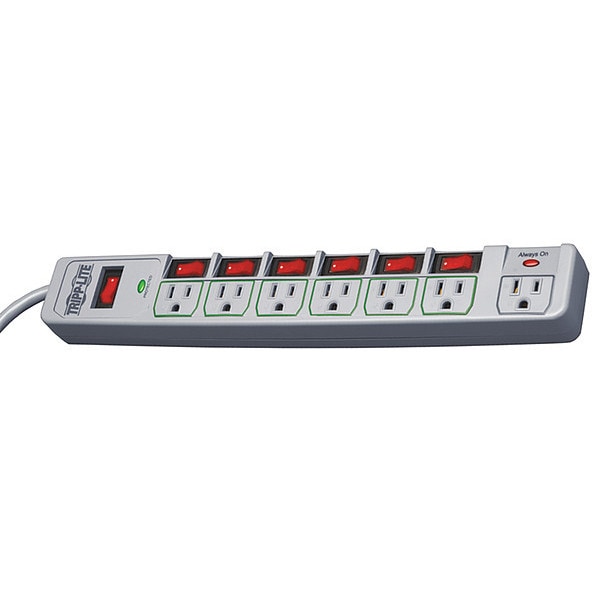

Outlet Strip, Surge, 7 5-15R, 5-15P, 6 ft., Gray

  • Mfr # TLP76MSG

  • Zoro # G4261056

product price: $49.99
/ea

Key Features

Type
Surge
Total Number of Outlets
7
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Cord Length
6 ft.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TLP76MSG
Zoro #
G4261056
UPC #
037332166074
Country of Origin
China

Dimensions

Cord Length
6 ft.
Depth
1-1/2"
Width
3 3/8 in
Cord Length - Ext. Cords and Outlet Strips
6 ft.
Length
15 in
Height
1 1/2 in
Wire Size
14 AWG
Length (Straight Wireway)
15 in

Details

Item
Outlet Strip
Type
Surge
Total Number of Outlets
7
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
Gray
Gauge/Conductor
14/3
Standards
CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed; RoHS
Footnotes
19
Hz
60 Hz
Max. Amps - Ext. Cords and Outlet Strips
15.0
Voltage
120VAC
Max. Amps
15A
Gauge/Conductor - Ext. Cords and Outlet Strips
14/3
Includes
Individual Outlet Control, Instruction Manual and Warranty Information
Power Indicator
Yes
Number of Total Outlets - Ext. Cords and Outlet Strips
7
Color - Ext. Cords and Outlet Strips
Gray
Housing Material
Plastic
NEMA Plug Configuration - Ext. Cords and Outlet Strips
5-15P
Noise Attenuation
Up to 40dB
NEMA Receptacle Configuration
NEMA 5-15R
NEC Cord Designation
SJT
Rated Joules
1,080
NEMA Plug Configuration
NEMA 5-15P
Number of Outlets
7
Max. Surge Current
72 kA
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Medical Grade
No
For Use With
Desktop, Network Or Home Computing Application Requiring AC Protection
Mounting Style
Keyhole
Number of Transformer Outlets
1
Outlet Surge Protection
Yes
Coax Surge Protection
No
Medical Facility Use
Outside Patient Care Areas (UL 1363)
Special Features
Individual Outlet Control
Communication Port
None
Application
Home, Office
USB Charging Port
0
Trade Designation
SJT
Number of Conductors
3
Frequency
60 Hz
Features
Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots
Watts
1800W
Compatibility
Computers/Peripherals
Surge Energy Rating
1080 J
Output Voltage
125 V AC
Input Voltage
125 V AC
Package Contents
ECO-SURGE TLP76MSG 7-Outlets Surge Suppressor, Instruction Manual with Warranty Information
Power Handling
1800 VA
Output Capacity (Watts)
1800
Individually Controllable Load Banks
Yes
EMI / RFI Filtering
Up to 40 dB
AC Suppression Joule Rating
1080
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
Frequency Compatibility
60 Hz
AC Suppression Response Time
< 1 ns
Maximum Surge Amps
72000
Package Includes
TLP76MSG ECO-SURGE Home/Business Theater Surge Suppressor;Instruction manual with warranty information
Diagnostic LED(s)
Yes
Network (Ethernet) Protection
No
Material of Construction
Plastic
Nominal Input Voltage(s) Supported
120V AC
Mounting Holes or Slots
No
Output Receptacles
(7) 5-15R
LED Indicators
Protected (Green)" & Always On Receptacle (Red)
Input Cord Details
SJT
Output Capacity (VA)
120

Description

Outlet Strip, Application Home; Office, Housing Material Plastic, Total Number of Outlets 7, Max. Amps 15 A, Cord Length 6 ft, Number of Power Switches 1, Power Indicator Yes, Number of Outlet Rows 1, Receptacle Configuration NEMA 5-15R, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Mounting Style Keyhole, Color Gray, Medical Facility Use Outside Patient Care Areas (UL 1363), Number of Transformer Outlets 1, Number of Conductors 3, Voltage 120V AC, Length 15 in
