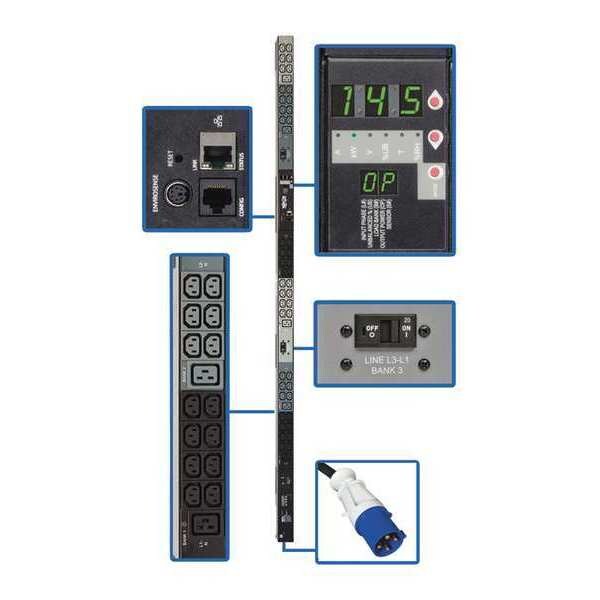

Tripp Lite PDU, Monitored, (42) C13, (6) C19, IEC-60309 60A BLUE (3P+E), 10 ft. PDU3VN10G60 - main

PDU, Monitored, (42) C13, (6) C19, IEC-60309 60A BLUE (3P+E), 10 ft.

  • Mfr # PDU3VN10G60

  • Zoro # G5179198

product price:  $1,404.99
/ea
Free Shipping & Returns

Key Features

Type
Monitored
Receptacle Configuration
(42) C13, (6) C19
Plug Configuration
IEC-60309 60A BLUE (3P+E)
Standards
RoHS Compliant; TAA Compliant
NEMA Plug Configuration
IEC-309 60A BLUE (3P+E)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PDU3VN10G60
Zoro #
G5179198
UPC #
037332195036
Country of Origin
China

Dimensions

Cord Length
10 ft.
Width
2.2"
Height
70"
Depth
3.3"

Details

Item
PDU
Type
Monitored
Receptacle Configuration
(42) C13, (6) C19
Plug Configuration
IEC-60309 60A BLUE (3P+E)
Standards
RoHS Compliant; TAA Compliant
NEMA Plug Configuration
IEC-309 60A BLUE (3P+E)
Housing Material
Metal
Max. Amps
35A
Number of Outlets
48
Mounting Style
Vertical Rackmount/0U
Voltage
200/208/240V
NEMA Receptacle Configuration
(42) C13; (6) C19
Phase
Three Phase
Power Indicator
Yes
Frequency
50/60 Hz
Product Type
PDU
Output Voltage
208 V AC
Input Voltage
230 V AC
Receptacle Detail
6 x IEC 60320 C19, 42 x IEC 60320 C13
Power Rating (Watt)
12.60 kW
Package Contents
Monitored PDU3VN10G60 48-Outlets 12.6kW PDU, Cord Retention Brackets, Rack Mounting Brackets, Owner's Manual
Mount Type
Rack-mountable
Mounting Orientation
Vertical
PDU Type
Monitored
Front Panel LEDs
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output load bank (B1-B3) offers information power availability: GREEN (<80% load), YELLOW (>80% load), RED (Power OFF), RED FLASHING (Power OFF/breaker trip)
Maximum Input Amps
35
Material of Construction
Metal
Reported Load Segments
Reports input current per phase (L1, L2, L3) and output current for each breakered load bank (20A balanced max per banks B1-B3); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3)
Current Measurement Accuracy (Amps)
+/-1%
Operating Elevation (ft.)
0-10,000
PDU Form Factor
Vertical (0U)
Package Includes
PDU3VN10G60 14.5kW 200/208/240V 3-Phase Monitored PDU, 10 ft. cord;(42) C13/C14 plug-lock inserts;(6) C19/C20 plug-lock inserts;Spare mounting buttons;(2) Conventional mounting brackets;Configuration cable for network interface;Button/bracket-mounting hardware;Owner's manual
Communications Cable
RJ45-to-DB9 configuration/console Access cable
Output Receptacles
(42) C13; (6) C19
Overload Protection
3 20A circuit breakers, 1 per outlet bank
Output Nominal Voltage
200; 208; 240
Form Factors Supported
Vertical rackmount installation supported with included mounting brackets; supports tooless mounting in button-mount compatible racks
Output Capacity Details
14.5kW (240V), 13.9kW (230V), 13.3kW (220V), 12.6kW (208V), 12.1kW (200V) total capacity; 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Frequency Compatibility
50 / 60 Hz
Power Measurement Accuracy (Watts)
+/-1%
Front Panel LCD Display
Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)
Operating Temperature Range
32 to 122F (0C to 50C)
Input Phase
3-Phase
Network Compatibility
10 Mbps; 100 Mbps (Fast Ethernet)
Storage Temperature Range
-30°C to +60°C (-22°F to +140°F)

Description

PDU,3-Ph,Monitored,14.5kW,42C13,6C19,0U
