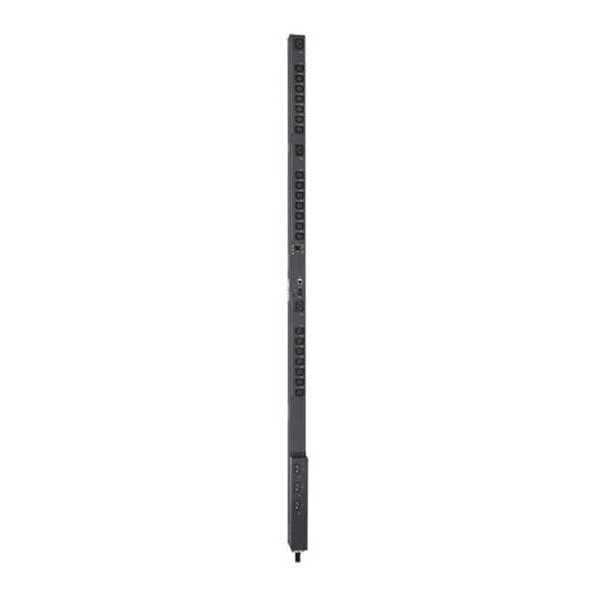

- Item
- PDU
- Type
- Switched
- Receptacle Configuration
- (21) C13, (3) C19
- Plug Configuration
- L21-30P
- Standards
- RoHS Compliant
- Number of Outlets
- 24
- Voltage
- 208V
- Max. Amps
- 24A
- NEMA Plug Configuration
- NEMA L21-30P
- NEMA Receptacle Configuration
- (21) C13; (3) C19
- Mounting Style
- Vertical Rackmount/0U
- Housing Material
- Metal
- Frequency
- 50/60 Hz
- Mounting Orientation
- Vertical
- Receptacle Detail
- 3 x IEC 60320 C19, 21 x IEC 60320 C13
- Mount Type
- Rack-mountable
- Input Voltage
- 230 V AC
- Output Voltage
- 208 V AC
- Power Rating (Watt)
- 8600 W
- Package Contents
- Switched PDU3VSR10L2130 24-Outlets 8.6kW PDU, Plug Retention Plates, Rack Mounting Brackets, Owner's Manual
- PDU Type
- Switched
- Product Type
- PDU
- Input Phase
- 3-Phase
- Customized Load Management Receptacles
- Each outlet is individually controllable via remote interface
- Overload Protection
- 3 20A double-pole circuit breakers (1 per output phase)
- Front Panel LEDs
Set of 3 LEDs (L1, L2, L3) indicate the output load segment the digital current display is reporting; LEDs for L1, L2, L3 will also flash to indicate that the display is reporting current level for one of the outlets in that load bank; One additional LED per output receptacle indicates power ON/OFF status for that outlet
- Package Includes
- Switched rackmount PDU with pre-installed mounting buttons;Plug retention plates;Spare installation buttons (2 9mm / 4 6mm);Rack mounting brackets;Owner's manual
- Network Compatibility
- 10 Mbps; 100 Mbps (Fast Ethernet)
- Output Nominal Voltage
- 208
- Material of Construction
- Metal
- Maximum Input Amps
- 24
- Storage Temperature Range
- 5 to 122F (-15 to 50C)
- Reported Load Segments
- Supports local monitoring of current for each output phase (13.9A max per L1-L2, L2-L3, L3-L1, balanced) and for each output receptacle; BANK "L1" is powered by L1-L2 (outlets 1-8); BANK "L2" is powered by L2-L3 (outlets 9-16); BANK "L3" is powered by L3-L1 (outlets 17-24)
- PDU Form Factor
- Vertical (0U)
- Communications Cable
- RJ45-to-DB9 configuration/console Access cable
- Operating Elevation (ft.)
- 0-10,000
- Front Panel LCD Display
- Digital display reports output load level in amps separately for each output phase and each individual output receptacle; Can also be used to scroll the configured IP address
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (21) C13; (3) C19
- Output Capacity Details
- 8.6kW (208V) total capacity; 13.9A max per output phase (L1-L2, L2-L3, L3-L1), 12A max per C13 outlet
- Power Measurement Accuracy (Watts)
- +/-1%
- Current Measurement Accuracy (Amps)
- +/-1%
- Form Factors Supported
- Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
