Receptacle Configuration
(24) C13, (6) C19
Plug Configuration
IEC-309 16/20A RED (3P+N+E)
Standards
TAA Tested to UL60950-1CE (EN 60950-1) CE / FCC Class A (Emissions)
NEMA Plug Configuration
IEC-309 16/20A RED (3P+N+E)
NEMA Receptacle Configuration
(24) C13; (6) C19
Green Environmental Attribute
Yes
Includes
PDU3XVS6G20 30-Outlets PDU24 C13/C14 and 6 C19/C20 Plug-Lock Cable Retention InsertsSpare Installation Buttons (2 9mm / 4 6mm)Mounting BracketsConfiguration CableOwner's Manual
Mounting Style
Vertical Rackmount/0U
Features
Large Digital Display Reports Amperage, Kilowatts, Voltage, Unbalance Percentage, Temperature and Humidity, Small Digital Display Provides Detail On The Measurement The Large Display Is Reporting
Green Certification or Other Recognition
RoHS
Watts
11.5kW (415/240V), 11.1kW (400/230V), 10.5kW (380/220V)
Receptacle Detail
6 x IEC 60320 C19, 24 x IEC 60320 C13
Power Rating (Watt)
11.50 kW
Mounting Orientation
Vertical
Input Voltage Range
380 V AC - 415 V AC
Certifications & Standards
TAA, Tested to UL60950-1, CE (EN 60950-1), CE / FCC Class A (Emissions)
Output Voltage
380 V AC, 400 V AC, 415 V AC
Package Contents
PDU3XVS6G20 30-Outlets PDU, 24 C13/C14 and 6 C19/C20 Plug-Lock Cable Retention Inserts, Spare Installation Buttons (2 9mm / 4 6mm), Mounting Brackets, Configuration Cable, Owner's Manual
Material of Construction
Metal
Current Measurement Accuracy (Amps)
+/-1%
High Availability PDU Features
Auto Load Shedding
Communications Cable
RJ45-to-DB9 configuration/console Access cable
PDU Input Voltage
360; 380; 400; 415
Package Includes
Switched, vertical rackmount PDU with pre-installed mounting buttons;24 C13/C14 and 6 C19/C20 Plug-lock cable retention inserts;Spare installation buttons (2 9mm / 4 6mm), Mounting brackets;Configuration cable;Owner's manual
PDU Form Factor
Vertical (0U)
Power Measurement Accuracy (Watts)
+/-1%
Operating Temperature Range
32° to 122°F (0° to 50°C)
Front Panel LCD Display

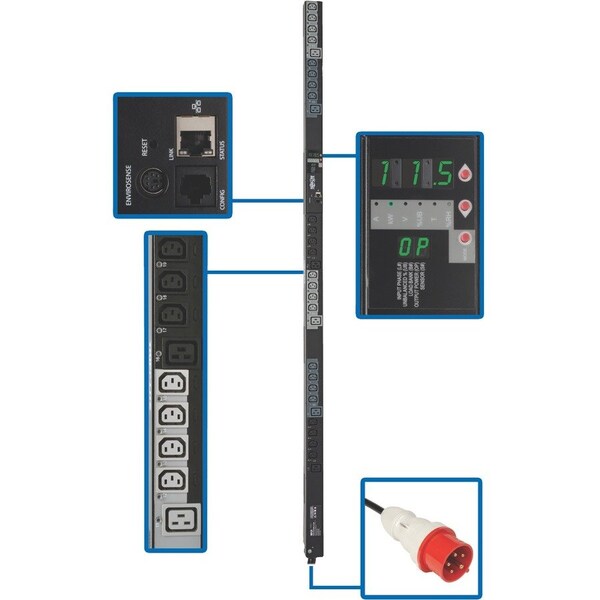

Large digital display reports Amperage, Kilowatts, Voltage, Unbalance percentage, Temperature* and Humidity* information (*requires ENIVIROSENSE option); Small digital display provides detail on the measurement the large display is reporting: Input-phase (L#), Load bank (B#), Sensor (S#), Load unbalance (UB), Output power (OP)
Storage Temperature Range
-22° to 140°F (-30° to 60°C)
Customized Load Management Receptacles
Each outlet is individually controllable via remote interface
Output Receptacles
(24) C13; (6) C19
Reported Load Segments
Reports input current per phase (L1, L2 and L3) and current for each output load bank (16A balanced max per B1, B2 and B3); Outlets are color-coded and labeled for phase and load bank identification; L1-N feeds black outlets (B1); L2-N feeds dark-gray outlets (B2); L3-N feeds light-gray outlets (B3)
Output Nominal Voltage
208-240V
Network Compatibility
10 Mbps; 100 Mbps (Fast Ethernet)
Front Panel LEDs
Set of 6 LEDs identify the value displayed on the large digital display: Amperage (A), Kilowatts (kW), Voltage (V), Unbalance percentage (%UB), Temperature (T), Humidity (%RH); One additional LED for each output receptacle offers power availability information: GREEN (Power ON, load bank capacity <80%), YELLOW (Power ON, load bank capacity >80%), RED (Power OFF/undervoltage), RED FLASHING (Power OFF/breaker trip)
Operating Elevation (ft.)
0-10,000
Output Capacity Details
11.5kW (415/240V), 11.1kW (400/230V), 10.5kW (380/220V), 10kW (360/208V) total capacity; 16A max per output phase (L1-L2, L2-L3, L3-L1); 16A max per C19 outlet; 12A max (10A CE) max per C13 outlet
Form Factors Supported
Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
Frequency Compatibility
50 / 60 Hz
