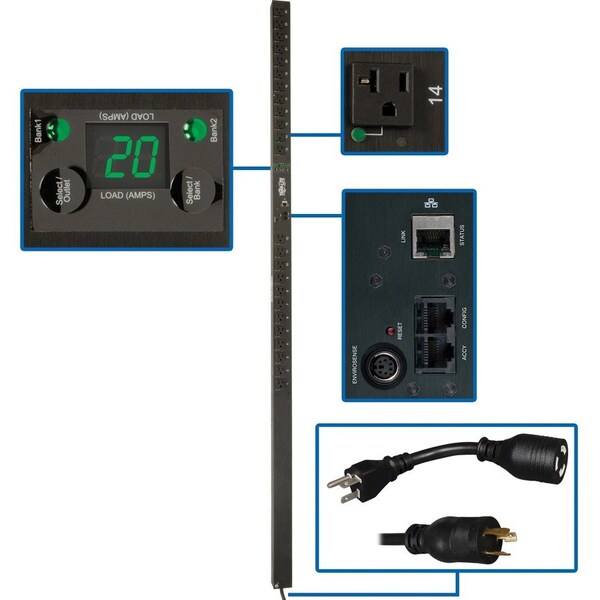

PDU, Switched, 5-15R, 5-20P, L5-20P, 10 ft.

PDU, Switched, 5-15R, 5-20P, L5-20P, 10 ft.

Mfr # PDUMVR20NET
Zoro # G5177868

$1,123.99

Item requires special delivery charges. A $75.00 per item surcharge will be applied.

Key Features

Type

Switched

Receptacle Configuration

5-15R

Plug Configuration

5-20P, L5-20P

Cord Length

10 ft.

Standards

RoHS Compliant; TAA Compliant

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

PDUMVR20NET

Zoro #

G5177868

UPC #

037332166906

Country of Origin

Taiwan, Province of China

Dimensions

Cord Length

10 ft.

Details

Item

PDU

Type

Switched

Receptacle Configuration

5-15R

Plug Configuration

5-20P, L5-20P

Standards

RoHS Compliant; TAA Compliant

NEMA Plug Configuration

NEMA 5-20P; NEMA L5-20P

Voltage

120V

Mounting Style

Vertical Rackmount/0U

Max. Amps

20A

NEMA Receptacle Configuration

NEMA 5-15/20R

Number of Outlets

Frequency

50/60 Hz

Input Voltage Range

100 V AC - 127 V AC

Receptacle Detail

24 x NEMA 5-15/20R

Output Voltage

120 V AC

Input Voltage

120 V AC

Mount Type

Rack-mountable

Product Type

PDU

Mounting Orientation

Vertical

Package Contents

Rackmount PDU, L5-20R to 5-20P Adapter, Rackmount Brackets

Storage Temperature Range

5 to 122F (-15 to 50C)

Network Compatibility

10 Mbps; 100 Mbps (Fast Ethernet)

Output Capacity Details

2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet

Maximum Input Amps

Input Phase

Single-Phase

Front Panel LCD Display

Digital display reports load level in amps for LOAD BANK 1 (Outlets 1-12), LOAD BANK 2 (Outlets 13-24), LOAD BANKS 1&2 COMBINED (Outlets 1-24) and each individual output receptacle; Digital display can also be used to scroll the configured IP address

PDU Form Factor

Vertical (0U)

Form Factors Supported

0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks

Front Panel LEDs

BANK 1 and BANK 2 LEDs verify which load bank the digital current display is reporting (Bank 1, Bank 2 or Banks 1&2 Combined); BANK 1 or BANK 2 LED will flash when the digital display is reporting output current for one of the outlets in that load bank; 24 additional LEDs, one near each output receptacle, will light continuously to verify power on/off status and flash to indicate that the digital display is reporting output current for just that individual receptacle

Frequency Compatibility

50 / 60 Hz

Operating Elevation (ft.)

0-10,000

PDU Type

Switched

Output Nominal Voltage

100; 120; 127

Customized Load Management Receptacles

Each outlet is individually controllable via remote interface

Communications Cable

RJ45-to-DB9 configuration/console Access cable

Output Receptacles

(24) 5-15/20R

Description

PDU,Switched,1.9kW,24 5-15/20R,0U
