  11. Power Cord, HD, C19, L5-20P, 20A, 12AWG, 10ft

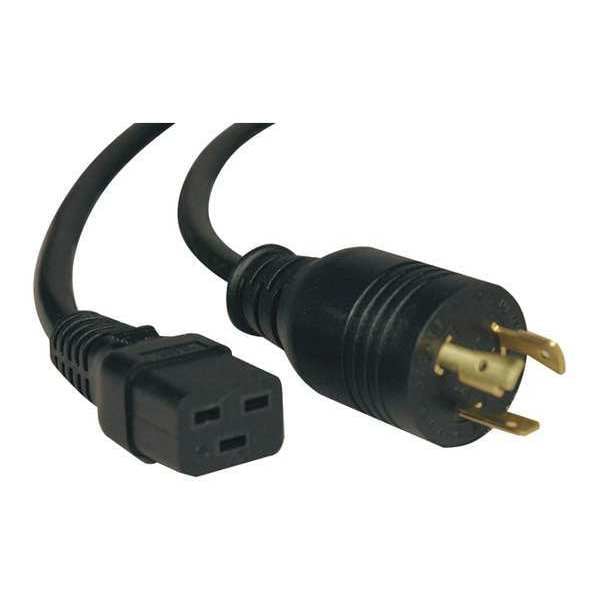

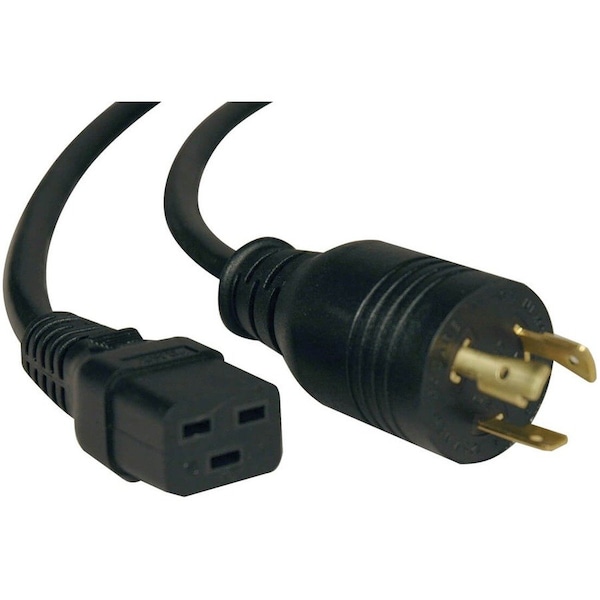

Tripp Lite Power Cord, HD, C19, L5-20P, 20A, 12AWG, 10ft P045-010 - main

Power Cord, HD, C19, L5-20P, 20A, 12AWG, 10ft

  • Mfr # P045-010

  • Zoro # G5180029

product price: $45.79
/ea

Key Features

Max. Amps
20
Number of Conductors
3
Cord Length
10 ft.
Wire Size
12 AWG
Voltage
125V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P045-010
Zoro #
G5180029
UPC #
037332140937
Country of Origin
China

Dimensions

Cord Length
10 ft.
Wire Size
12 AWG
Cable Length (ft.)
10
Cable Outer Diameter (OD)
11mm

Details

Item
Power Cord,HD,C19,L5-20P,20A,12AWG,10ft
Max. Amps
20
Number of Conductors
3
Voltage
125V AC
Description/Special Features
Locking Plug
NEC Cord Designation
SJT
Color
Black
Voltage Rating
250 V AC
End 1 Connection Type
NEMA L5-20P
End 2 Connection Type
IEC-320-C19
Frequency
50 Hz
Additional Information
Fully molded ends
Package Contents
P045-010 Standard Power Cord, C19 to L5-20P Power Cable, 10 ft.
Product Color
Black
Product Name
P045-010 Standard Power Cord
Side B - Connector 1
IEC-320-C19
Relative Humidity
10% to 65% RH, Non-Condensing
Maximum Input Amps
20
Power Cord Jacket Type
SJT
Device Compatibility
Server; UPS; PDU
Storage Temperature Range
-4° to 140°F (-20° to 60°C)
Cable Jacket Material
PVC
Package Includes
P045-010 C19 to L5-20P Heavy-Duty Extension Cord, 10-ft. (3.05 m), Black
Cable Jacket Rating
VW-1
Cable Jacket Color
Black
Operating Temperature Range
-4° to 140°F (-20° to 60°C)
Side A - Connector 1
NEMA L5-20P
Wire Gauge (AWG)
12
Product Certifications
cUL Listed; UL Listed
Plug Color
Black
Voltage Compatibility (VAC)
125

Description

Power Supply Cord
