Item
Power Inverter and Battery Charger
Peak Output Power
1,500 W
Continuous Output Power
750 W
Inverter Output Form
Modified Sine Wave
Inverter Input Voltage
12V DC; 120V AC
Inverter Output Voltage
120V AC
DC Connection
Bolt Down Terminals
Case Material
Polycarbonate
Nominal Output Power
750 W
Includes
Remote Control Module
Automatic/Manual
Automatic
Charger Input Voltage
120V AC
Charger Output Voltage
120V
Max. Input Current
Full continuous load of 73 A at 12 V DC; 29 A at 120 V AC with full inverter and charger load
Features
Automatic Overload, Front Panel Remote Control Connector Enables Remote Off/On Switching with Included Apsrm4 Remote, Load Sensing Control Dial Enables Adjustable Load Threshold Required to Automatically Turn the Inverter On and Off in Dc Mode as Load Conditions Change, Thermal Shutoff
Inveter Output Voltage
120V AC, +/- 5%
Charger Input Current
9.3 A
Charger Output Current
45 A
Product Name

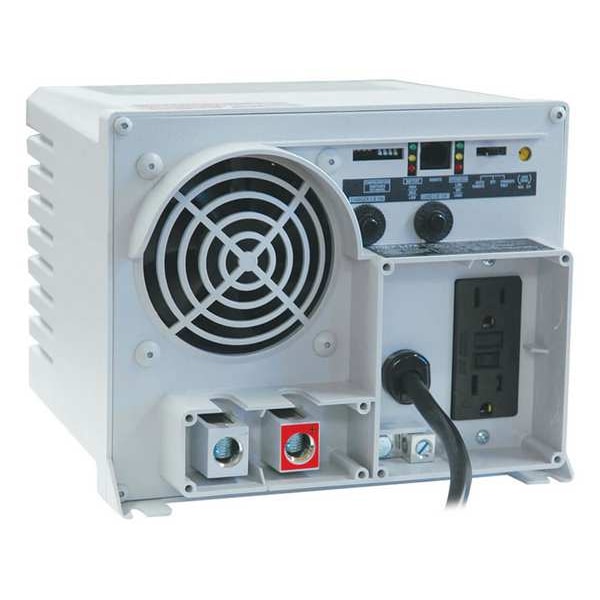

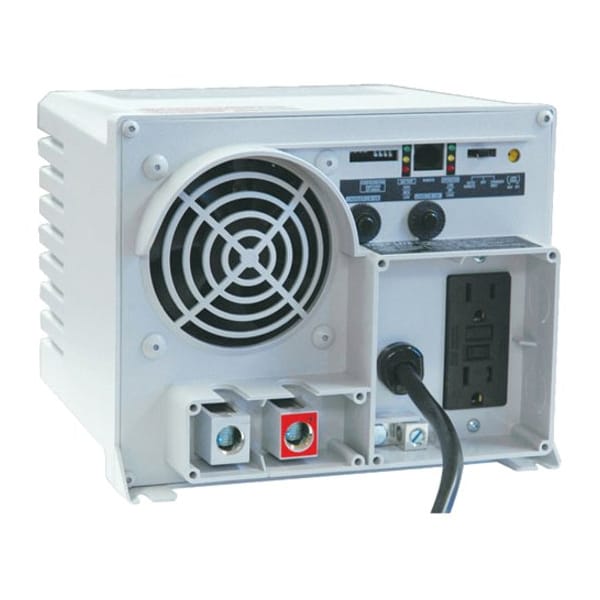

PowerVerter 750W Utility/Work Truck Inverter with 2 Outlets
Package Contents
PowerVerter 750W Utility/Work Truck Inverter with 2 Outlets, Remote Control, Remote Battery Temperature Sensor Cable, Instruction Manual with Warranty Information
Output Frequency Regulation
60 Hz (+/- 0.3Hz)
Output Receptacles
(2) 5-15R
Voltage Compatibility (VDC)
12
Outlet Details
2 NEMA 5-15R GFCI protected outlets
Product Certifications
CSA (Canada); UL 458
Material of Construction
Polycarbonate
Nominal Output Voltage(s) Supported
120V
Output Voltage Regulation
LINE POWER (AC): Maintains 120V nominal sine wave output from line Source. Inverter Power (AC) Maintains PWM sine wave output voltage of 120 VAC (+/- 5%)
Battery Pack Accessory (Optional)
98-121 sealed lead acid battery (optional)
Transfer Time (Line Power to Battery Mode)
16.6 milliseconds (typical -compatible with many computers, servers and networking equipment-verify transfer time compatibility loads for UPS applications)
AC Suppression Joule Rating
450
Switches
3 position on / off remote switch enables simple on / off power control plus "auto/ remote"
Package Includes
UT750UL Inverter/Charger;APSRM4 Remote;Instruction manual with warranty information
Relative Humidity
0%-95% Non-Condensing
Frequency Compatibility
60 Hz
High Voltage Transfer to Battery Power
In AC "auto" mode, inverter / charger switches to battery mode as line voltages increases to 145V (user adjustable to 145 - see manual)
Voltage Compatibility (VAC)
120
Load Sensing
Load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level.
Battery Charge
11A / 45A (selectable)
Low Voltage Transfer to Battery Power
In AC "auto" mode, inverter / charger switches to battery mode as line voltage drops to 75V (user adjustable to 85,95,105 - see manual)
Form Factors Supported
Mounting slots enable permanent placement of inverter on any horizontal surface. (see manual for additional mounting information)
Overload Protection
Includes 10A input breaker dedicated to the charging system and 12A output breaker for AC output loads.
Maximum Input Amps / Watts
DC INPUT: Full continuous load of 73A at 12 VDC. AC INPUT 29 amps at 120 VAC with full inverter and charger load (9.3A max charger only / combined input load to support charger and AC output is automatically controllable to 66% - 33% - 0% based on AC)
Nominal Input Voltage(s) Supported
120V AC
Recommended Electrical Service
DC INPUT: Requires 12VDC input source capable of delivering 73A for the required Duration (when used at full continuous capacity- DC requirements increase during Over-Power and Double-Boost operation). AC INPUT: 15A 120VAC recommended.
Front Panel LEDs
Set of (6) LEDs offer continuous status information on load percentage ( 6 levels reported) and battery charge level (7 levels reported) See manual for sequences
DC System Voltage (VDC)
12
